Copernicus HAWM Assembly Manual

Height adjustable wall mount
Hide thumbs

Advertisement

Quick Links

Download this manual
HAWM
WARNING
NOTE:
Wall mounting hardware is not included.
Installer must supply wall mounting hardware as specified in this guide.
The following instructions are for mounting to concrete or cinder block walls.
Please Recycle

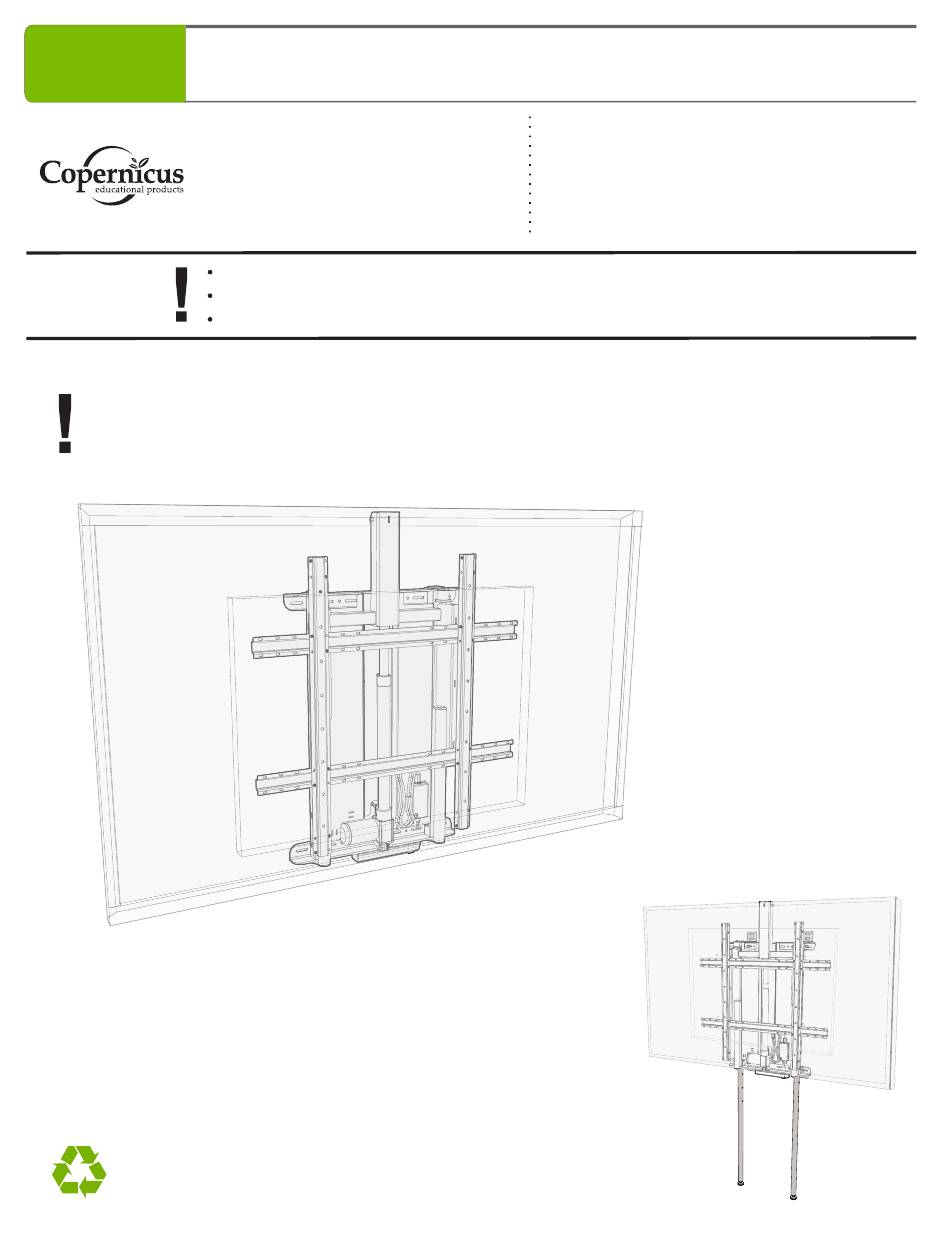

Height Adjustable Wall Mount
Assembly Guide
HAWM _2020_A
Check out our other products online at
www.copernicused.com
This product must be assembled by a qualified installer.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Optional floor standing/
wood stud mounting kit
(HAWM-AC1)
Shown with SMART MX275
Flat Panel (sold separately)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAWM and is the answer not in the manual?

Questions and answers

Related Manuals for Copernicus HAWM

Summary of Contents for Copernicus HAWM

  • Page 1 The following instructions are for mounting to concrete or cinder block walls. Shown with SMART MX275 Flat Panel (sold separately) Optional floor standing/ wood stud mounting kit (HAWM-AC1) Please Recycle Version A - Released June 17, 2020 - Copernicus Educational Products Inc.

  • Page 2: Assembly Guide

    Lifetime easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product Frame Warranty assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim Lifetime We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim.
  • Page 3 Unplug when not in use. Turn off power strip before Power Strip unplugging. Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury. Electronic...
  • Page 4 “WARNING”, “Risk of Electric Shock, Fire, and Injury”, “Review the assembly instructions to confirm that the appropriate critical components and accessories are being used with the furnishing.” SAVE THESE INSTRUCTIONS! Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 5 (25515) (34099) PRE INSTALLED HARDWARE 1/4-20 x 1-1/2” Pan Head Screw (43006) Velcro Strip - 8” Velcro Strip - 4” 1/4-20 Lock Washer 4x (4 of 8) (43010) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 6 (4302012) M6 x 20mm VESA Screw (43222) 1/4” x ” Screw (430039) M8 x 15mm VESA Screw (432764) 3/8-16 Lock Nut M8 x 25mm VESA Screw (430122) (432765) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 7 Customer Service - FAQ’s For missing parts and other issues regarding the mount: Please call Copernicus Customer Service, where we will be happy to help. 1-800-267-8494. Monday - Friday 8:00am - 4:30 pm EST. Need Tech Support? Check out some of our...

  • Page 8: Product Specifications

    Product Specifications Maximum supported screen size and screen weight 86” 250lbs (113kg) (218cm) SCREEN WEIGHT SCREEN SIZE Height adjustment range 17" (43cm) ELECTRIC HEIGHT ADJUSTMENT RANGE Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 9 Minimum height above floor: 61” Floor (155.1cm) NOTE: Do not mount the HAWM over a marker ledge that is deeper than 3-3/8” (86mm) 3-3/8” (86mm) Max Marker Ledge Depth: Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 10 If you are mounting the HAWM to a wood stud wall please follow these instructions to STEP 6 then continue using the instructions included with the Stud Mounting Kit. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 11 2. Lay Moving Frame down on table or floor 3. Insert end of Slide Tubes WITHOUT LABEL into bottom end of Moving Frame 4. Push Slide Tubes in until flush with top of Moving Frame Label Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 12 Install Moving Frame Assembly from previous step onto Main Frame 1. Install Fasteners (DO NOT FULLY TIGHTEN YET) 2. Slide scrap of cardboard (cut from outer packaging of the HAWM) under each end of Moving Frame 3. Fully tighten all fasteners and remove cardboard...
  • Page 13 Route cables under Electic Lift as show Secure cables to frame, wrapping Connect Electric Lift to Power Adapter and Velcro strips through provided slots secure excess cable under Velcro strap Velcro Strip - 4” Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 14 BEFORE PROCEEDING. ENSURE CABLES ARE CLEAR! If there is any binding, shaking or excessive vibration when testing the lift, please contact our customer support team for assistance (see pg.5) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 15 Check your flat panel owners manual to determine correct VESA screw size and torque specifications to avoid causing damage to your flat panel. (4x) (4x) Center Vertically on Flat Panel Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 16 Install Flat Panel Mount Stretchers Install screws in two threaded holes (Showing SMART MX265 Flat Panel) Do not secure in these holes, they are used for attaching an optional soundbar mount Version A - Released June 17, 2020 - Copernicus Educational Products Inc.

  • Page 17: Mounting Height

    12yr (Gr 7 +) 91in/178cm NOTE: For mounting in a common area with mixed ages (such as in a Library) use the Mounting Reference Height for the youngest user. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 18 CENTER 3 / 8 ” ( 9 . 5 m / 8 ” . 1 - 3 m i n ( 3 5 m MAX 60” (152.4cm) FLOOR Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 19 You will need: (Not to Scale) Level 2-Person Task Hang HAWM on fastener and mark mounting holes Hang HAWM on fastener Trace mounting holes (8x) and remove Level HAWM HAWM from wall. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 20 (between 1-3/4” and 2-1/4” long ) 2-Person Task Mount HAWM to Wall Pre-drill holes in center of mounting hole traced outlines Fasten HAWM to wall using 8 fasteners Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 21 You will need: (Not to Scale) Actual Size: Screwdriver Phillips #2 or #3 2-Person Task Mount Flat Panel onto HAWM Insert all 4 adapters Insert all 4 Safety Screws into keyholes. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 22 #8 Screw - 1” Long #8 Screw Drywall Anchor Drill Bit (sized for drywall anchor) Mount Remote Hanger Bracket to wall Can be mounted on left or right of screen. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.

  • Page 23: Cable Management

    Determine the amount of slack needed to ensure no cable will be pulled. Use included Velcro straps to secure excess power and video cables to frame (at indicated locations). Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
