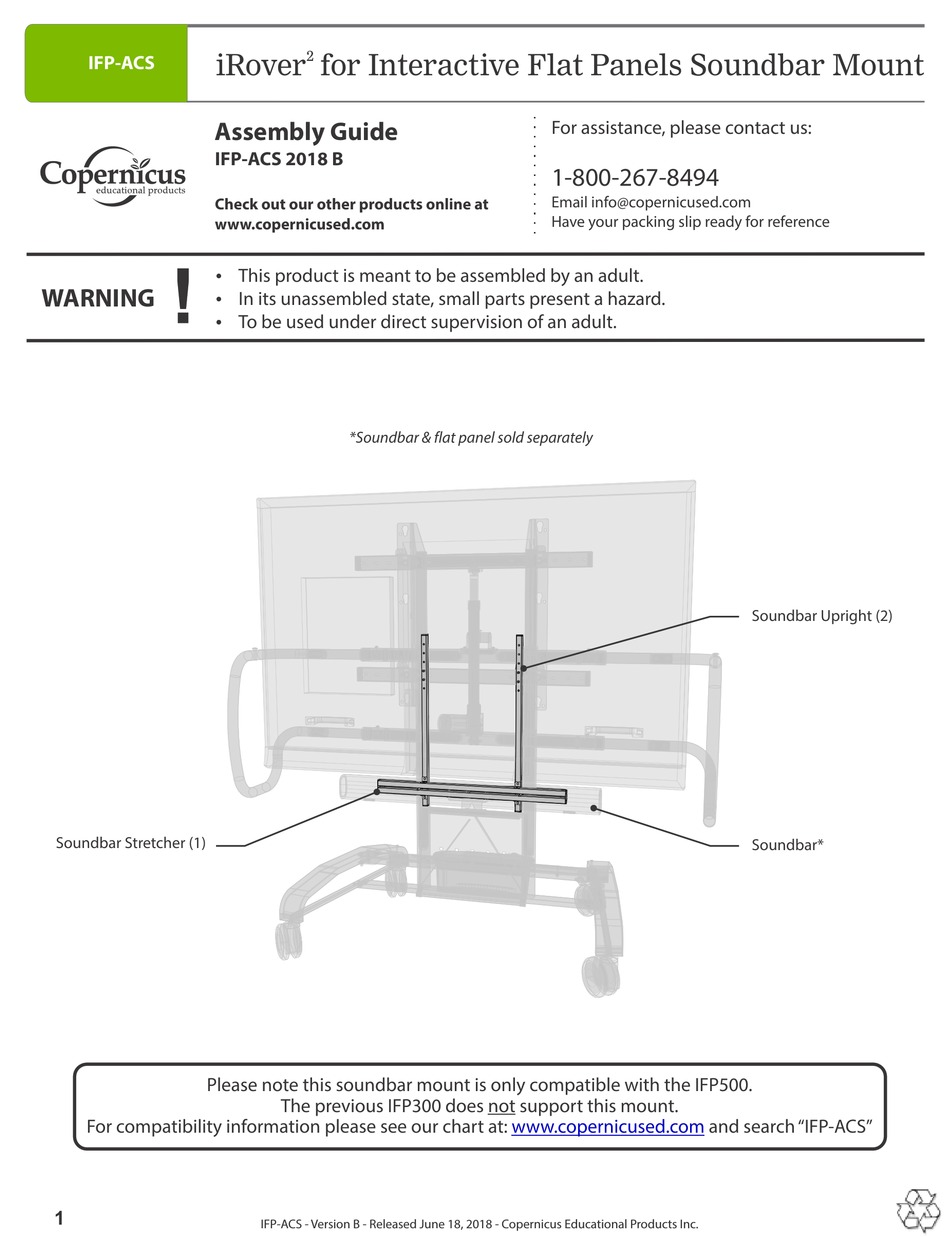

iRover for Interactive Flat Panels Soundbar Mount
IFP-ACS
Assembly Guide
IFP-ACS 2018 B
Check out our other products online at
www.copernicused.com
Ÿ
WARNING
Ÿ
Ÿ
Soundbar Stretcher (1)
Please note this soundbar mount is only compatible with the IFP500.
For compatibility information please see our chart at:
1
2
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
*Soundbar & flat panel sold separately
The previous IFP300 does not support this mount.
IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
www.copernicused.com
Soundbar Upright (2)
Soundbar*
and search "IFP-ACS"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus IFP-ACS
Summary of Contents for Copernicus IFP-ACS
- Page 1 Please note this soundbar mount is only compatible with the IFP500. The previous IFP300 does not support this mount. For compatibility information please see our chart at: www.copernicused.com and search “IFP-ACS” IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
- Page 2 To validate your warranty, submit the ON-LINE form at www.copernicused.com Warranty Enter a drawing to win a Copernicus Product for your classroom at the same time! IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
- Page 3 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
- Page 4 M6 x 35mm Screw M5 x 35mm Screw Allen Key (not to scale) (432350) (43214) (43281) M6 x 30mm Screw M5 x 30mm Screw (43230) (432133) IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
-
Page 5: Before You Begin
Check out some of our Please call the reseller that you bought the product from first other great products! (reseller information can be found on your packing slip). www.copernicused.com IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc. - Page 6 Do not tighten hardware yet. Tip: raise your flat panel up to gain more access to screws covered by Base Frame (Base Frame not shown) IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
- Page 7 10lbs Center soundbar on Main Stretcher Actual Size: You will need: (Not to Scale) Attach Soundbar to Uprights on Cart Tighten all hardware IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
- Page 8 Raise flat panel to max height before routing cables. This ensures they have enough length when adjusting cart height. Connect your audio and power cables when ready. IFP-ACS - Version B - Released June 18, 2018 - Copernicus Educational Products Inc.
