This assembly guide provides instructions to build the Standard Reading Writing Center
Check out our full line of products at www.copernicused.com
This Product is meant to be assembled by an Adult.
WARNING
In its unassembled state, small parts present a hazard.
This product to be used under the direct supervision of an adult.

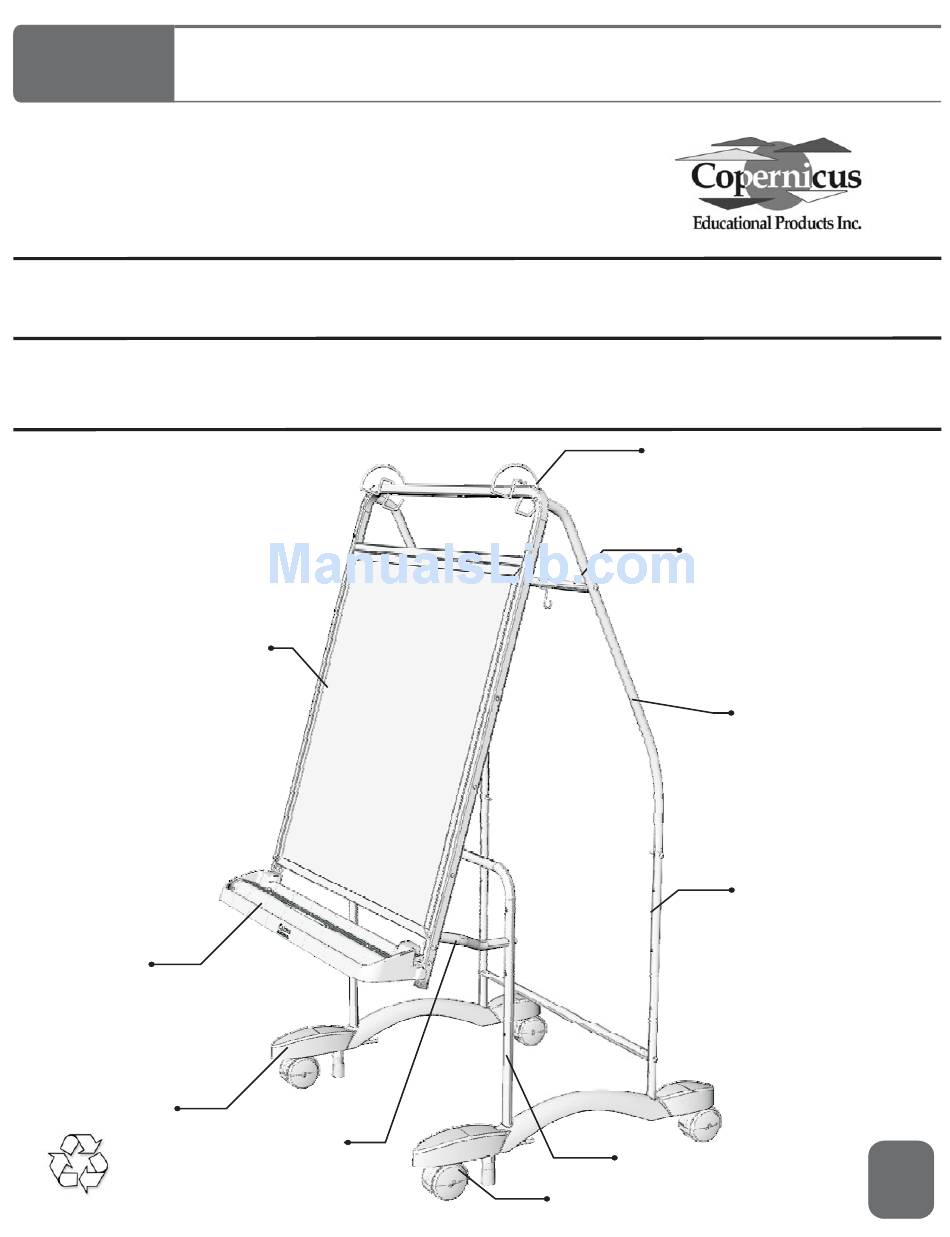

Front Frame (1)
Ultra Safe
Premium Bookledge (1)
Base (2)
Front Frame Support (2)
1 Left, 1 Right
Please Recycle
or
email info@copernicused.com
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
Chart Loop Hook (2)
Stretcher (2)
Center Frame (1)
Caster (4)
-
Assembly Guide
Upper Frame (2)
Lower Frame (2)
10
Year
Frame
Warranty
