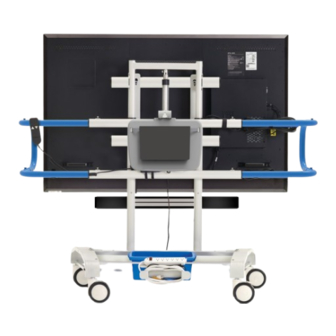

Copernicus iRover2 Assembly Manual
  1. Manuals
  2. Brands
  3. Copernicus Manuals
  4. Racks & Stands
  5. iRover2 IFP300
  6. Assembly manual

Copernicus iRover2 Assembly Manual

For interactive flat panels
Hide thumbs Also See for iRover2:

Advertisement

Quick Links

Download this manual
IFP500
WARNING
1
TM
iRover2

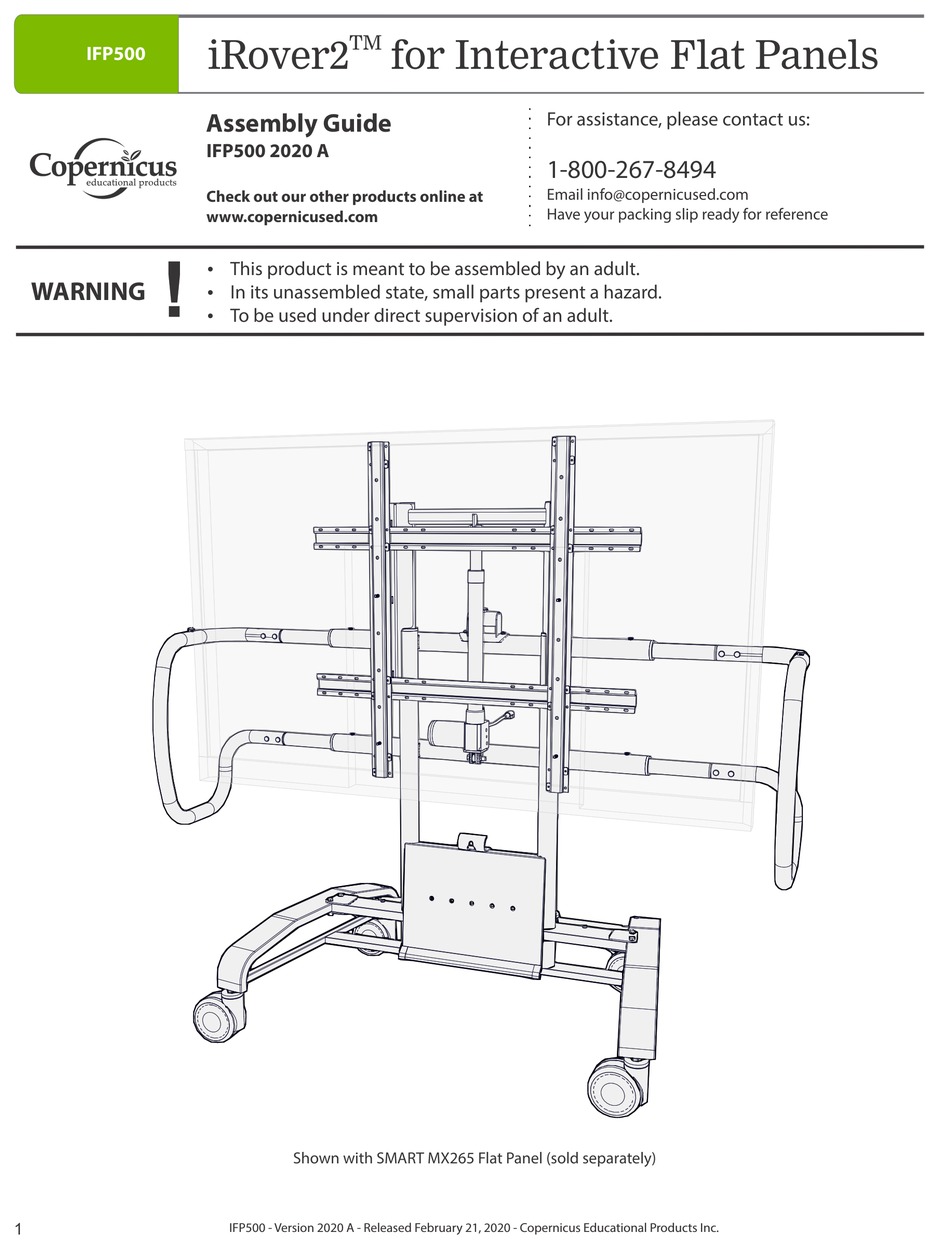

Assembly Guide
IFP500 2020 A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
Shown with SMART MX265 Flat Panel (sold separately)
IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
for Interactive Flat Panels
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRover2 and is the answer not in the manual?

Questions and answers

Related Manuals for Copernicus iRover2

Summary of Contents for Copernicus iRover2

  • Page 1 In its unassembled state, small parts present a hazard. Ÿ To be used under direct supervision of an adult. Ÿ Shown with SMART MX265 Flat Panel (sold separately) IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 2 Dear Educator, Thank you for purchasing the iRover2™ for Interactive Flat Panels. We hope it meets all your expectations and you and your students enjoy using it at your school. If you have any questions, concerns or ideas on how we can improve please let us know by contacting our Customer Solutions Ninjas at 1-800-267-8494 or info@copernicused.com.
  • Page 3 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 4 Check out some of our Please call the reseller that you bought the product from first other great products! (reseller information can be found on your packing slip). www.copernicused.com IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 5 Laptop Tray Rear 5 lbs Weight Limit Electric Lift, Protective Handle Adapter Extensions Mount (not shown), (34086) Remote (331251) (not shown), (25525) ... hardware on following page IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 6 Metric hardware for VESA Mounting M6 x 15mm VESA Screw M6 x 20mm VESA Screw M8 x 15mm VESA Screw M8 x 25mm VESA Screw (432151) (43222) (432764) (432765) IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.

  • Page 7: Install Casters

    Tip: tilt your unit on its back for easier caster installation Install locking casters on back of unit and tighten using supplied Caster Wrench. (Back) (Front) IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 8 You will need: (Not to Scale) Adjustable wrench (2x) Electric Lift 9/16” Wrench (2x) Install Electric Lift Note orientation of the Electric Lift Tighten bolts IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 9 You will need: (Not to Scale) Power Strip Small Tub 5 lbs Weight Limit Attach Power Strip and Install Tub Apply Double Sided Foam Tape here IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 10 Check your flat panel owners manual to determine correct VESA screw size and torque specifications to avoid causing damage to your flat panel. (Showing SMART MX265 Flat Panel) (4x) (4x) IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 11 Do not secure in these holes, they are used for attaching an optional soundbar mount Install screws in holes with threads, only 2 of 4 holes will have threads IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 12 Secure Flat Panel To Cart Insert all 4 adapters into keyholes. Insert all 4 Safety Screws Lock all casters before attaching flat panel to cart IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 13 (4x) flat panel Actual Size: You will need: (Not to Scale) Screwdriver Phillips #2 or #3 Laptop Tray Rear Mount Install Rear Laptop Mount IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 14 20 lbs Weight Limit Using Laptop Tray In-use Position On In-use Position On Stored Position On Left or Right Handles Back of Cart Front of Cart IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.

  • Page 15: Cable Routing

    Raise flat panel to max height before routing cables. This ensures they have enough length when adjusting cart height. Laptop tray can install on both sides IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.

  • Page 16: Tips For Use

    - connect the Electric Lift (see assembly Step 11) - plug in the power strip and turn it on - use buttons on remote to raise and lower flat panel IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
  • Page 17 When moving your iRover Interactive Flat Panel Cart through a door ensure that the unit is sitting at the lowest height to avoid hitting the top of the door frame. IFP500 - Version 2020 A - Released February 21, 2020 - Copernicus Educational Products Inc.
