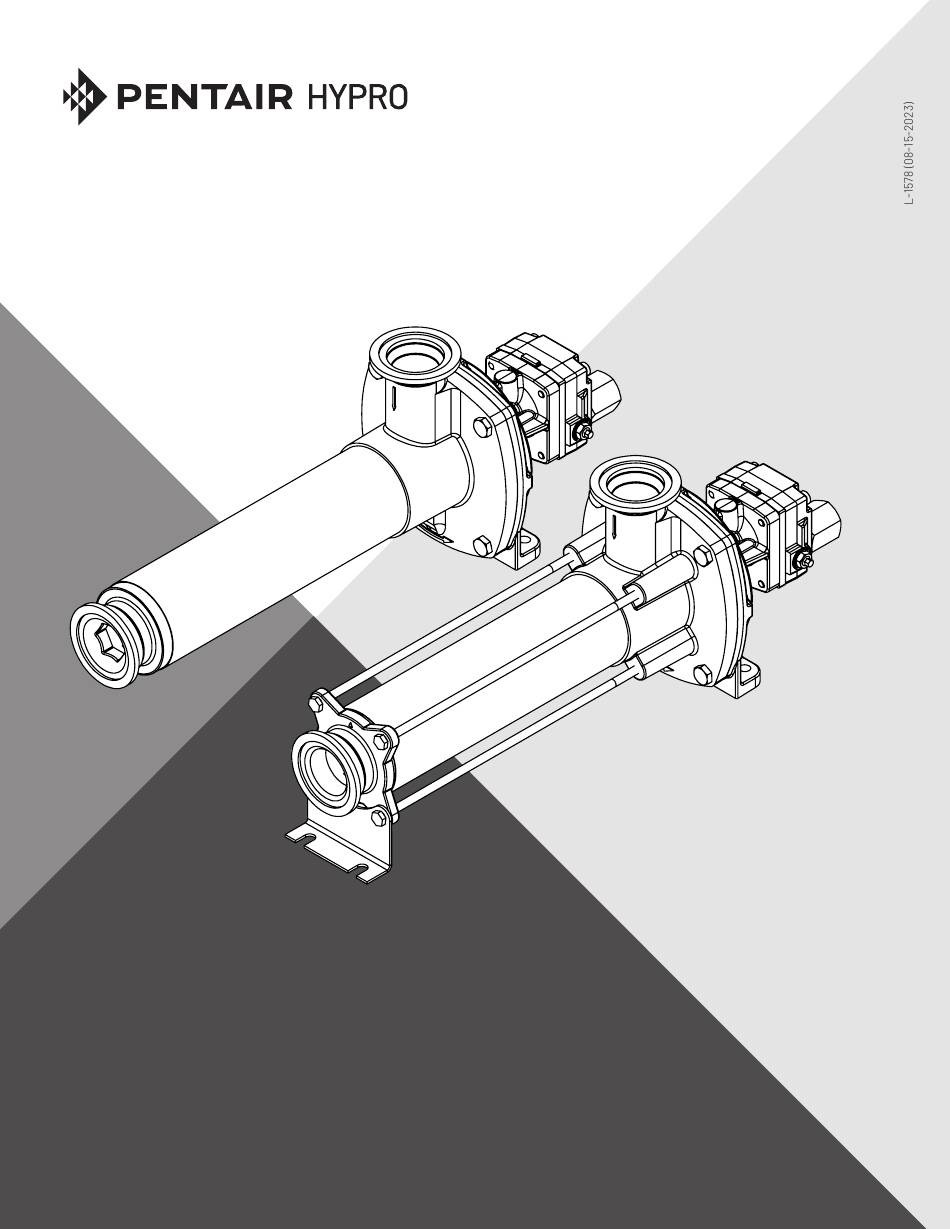

- Page 1 HYDRAULICALLY DRIVEN COBALT PUMPS 93HPS SERIES INSTALLATION AND OPERATIONS MANUAL pentair.com ©2023 Pentair. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS NOTES.........................................3 SAFETY INSTRUCTIONS..................................4 INTRODUCTION....................................5 TECHNICAL DATA ....................................6 INSTALLATION.....................................11 COMMISSIONING, START-UP, OPERATION, SHUT-DOWN........................14 MAINTENANCE AND SERVICE................................16 TROUBLESHOOTING....................................17 REPAIR PARTS....................................18 DECLARATION OF INCORPORATION..............................22 WARRANTY........................................23 L-1578 (08-15-2023) -
Page 3: Notes
N’essayez pas d’installer votre pompe avant de lire le manuel. Des exemplaires originaux du manuel pour des pompes de Hypro sont fournis en anglais. Pour trouver une copie dans votre langue maternelle pour aller a www.hypro.pentair.com (French). NON tentare di installare la vostra pompa prima di leggere il manuale. Esemplare originale del manuale per Hypro pompe sono in inglese. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Only authorized operators having the knowledge and skill necessary to safely use a pump, or any equipment the SAVE THESE INSTRUCTIONS: This manual contains important pump is connected to, may run the pump. instructions that should be followed during installation, operation, and maintenance of the product. -
Page 5: Introduction
(outlet) PURPOSE OF MANUAL or vacuum of the pump (inlet). Pentair has provided this manual to provide instructions and DO NOT run a pump in reverse of its intended rotation. ... -
Page 6: Technical Data
TECHNICAL DATA PUMP IDENTIFICATION Pentair uses serialized labeling to enable users to precisely identify the pump’s manufacturing date. Serial Number: First and second digits: year (22 = 2022). Third through fifth digits: consecutive day of the year the pump was manufactured. - Page 7 TECHNICAL DATA MODEL 93HPS114-M05 PERFORMANCE DATA All specifications and performance data are based on water as a carrier fluid. 93HPS114-M05Y-001 2000 1800 1600 1400 1200 1000 Pump Flow [GPM] 93HPS114-M05Y-001 19 LPM - Hyd ∆ bar Pump Flow (L/min) L-1578 (08-15-2023)
- Page 8 TECHNICAL DATA MODEL 93HPS114-M05-SP PUMP TECHNICAL DATA 2" UNIVERSAL FLANGE INLET PORT 15.79 4.95 8.77 3.81 6.62 24.76 2" UNIVERSAL FLANGE OUTLET PORT 18.69 18.08 5.25 2.65 R.22 1.59 93HPS114-M05-SP: All performance data is based on water as a carrier fluid. MODEL 93HPS114-M05-SP SPECIFICATIONS HYDRAULIC MOTOR HYDRAULIC MOTOR...
- Page 9 TECHNICAL DATA PERFORMANCE DATA - MODEL 93HPS114-M05-SP All specifications and performance data are based on water as a carrier fluid. 93HPS114-M05-SP 2000 1800 1600 1400 1200 5 GPM - Hyd ∆ PSI 1000 NPSHR 93HPS114-M05-SP Pump Flow [GPM] 18 LPM - Hyd ∆ bar Pump Flow (L/min) L-1578 (08-15-2023)
- Page 10 (See Figure 1). LIFTING, TRANSPORT, AND INTERMEDIATE STORAGE TOOLS TRANSPORT Hypro 93HPS Series centrifugal pumps and mounting assemblies are designed with metric fasteners. All Hypro pumps are capable of being transported by air, ...
-
Page 11: Installation
Pumping systems must be installed in accordance with Pentair installation instructions. Failure to do so will void STANDARD MOUNTING your warranty and could cause damage to property, serious personal injury, or death. - Page 12 INSTALLATION PUMP PLUMBING To achieve maximum pump performance, pump inlet REF. NO. DESCRIPTION and outlet lines should be at least the same size as their respective port, and should have as few restrictions as Tank Lid possible. Pump plumbing must be capable of withstanding Vent Line the maximum suction and pressure generated by the pump.
- Page 13 INSTALLATION HYDRAULIC INSTALLATION The case drain line must be connected directly to the hydraulic reservoir with no restrictions, and the case drain Prior to installation, refer to the tractor or sprayer manual and port on the motor must always be oriented upward. Ideally, determine what type of hydraulic system is being used.
-
Page 14: Commissioning, Start-Up, Operation, Shut-Down
COMMISSIONING, START-UP, OPERATION, AND SHUTDOWN START-UP, OPERATION, SHUTDOWN STARTING, OPERATION, AND SHUTDOWN THE HYDRAULIC PUMP Before attempting to start your pump, the following must be understood and followed to ensure safe operation. OPEN CENTER SYSTEMS - ALL MODELS Adjusting Centrifugal Pump Output BEFORE STARTING THE PUMP ATTENTION M08, M10, and M16 motors have bypass screw fully Ensure all unnecessary personnel are clear of the area. - Page 15 COMMISSIONING, START-UP, OPERATION, AND SHUTDOWN / MAINTENANCE AND SERVICE CLOSED CENTER (LOAD-SENSING) SYSTEMS MAINTENANCE AND SERVICE Adjusting Centrifugal Pump Output: PRIOR TO SERVICE Close and lock down the bypass adjusting screw, if equipped, All maintenance should be done when machinery is stationary ...
-
Page 16: Maintenance And Service
MAINTENANCE AND SERVICE MAINTENANCE, ROUTINE SERVICING, AND Inspect the O-ring located on the discharge and replace if INSPECTION damaged. To re-assemble the pump, it is best to have the pump laying on PREVENTATIVE MAINTENANCE CHECKLIST its hydraulic motor with the motor shaft oriented upward. ANNUALLY (<1000 Remove the inner stack components from the shell and CHECK... -
Page 17: Troubleshooting
TROUBLESHOOTING If the proper Hydraulic Pump Unit has been selected according to Pentair recommendations, and the unit has been correctly plumbed into the hydraulic system, operation should be quite satisfactory. If spraying performance is unsatisfactory or hydraulic system heat is excessive, check the following troubleshooting guide for possible problems and solutions. -
Page 18: Repair Parts
The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used. Failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective, it should be sent back to Pentair for service. Pump Repair Kit No. 3430-0953 Contains: O-rings (Ref. 14 &... - Page 19 REPAIR PARTS MODELS 93HPS114-M05, 93HPS114-M05Y ITEM NUMBER PART NUMBER DESCRIPTION QTY. Motor Body Assy (No CD) 0150-2514C Motor Body Assy (CD) 0150-2522C End Plate Sub-Assy RR (-8 -10) 0255-2500C2 End Plate Sub-Assy RR (Block) 0255-2500C4 Motor Shaft 0542-2500 Gerotor Housing Coated 0720-2602 Flange Inlet Machined 0750-1584S...
- Page 20 REPAIR PARTS MODEL 93HPS114-M05-SP Pump Repair Kit No. 3430-0953 Contains: O-rings (Ref. 14 & Hydraulic Motor Part Nos. 2500-0506C (M05), 2500- 15), Mechanical Seal (Ref. 21), Seal installation Tool (3010- 0505C (M05Y). 0455) and Seal Chamber Fluid (2160-0138). Replacement Chamber Fluid # 2160-0138 Contains: 23 ...
- Page 21 REPAIR PARTS MODEL 93HPS114-M05-SP ITEM NUMBER PART NUMBER DESCRIPTION QTY. Motor Body Assy (No CD) 0150-2514C Motor Body Assy (CD) 0150-2522C End Plate Sub-Assy 0255-2500C2 Motor Shaft 0542-2500 Gerotor Housing Coated 0720-2602 Flange Inlet Machined 0750-1586S Mounting Flange Speed Sensor Mount 0752-9310C4 Mounting Flange 0752-9310C3...
-
Page 22: Declaration Of Incorporation
EC DECLARATION OF INCORPORATION EC Declaration of Incorporation Manufacturers Name: Pentair Flow Technologies, LLC Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Emission Directive 2010/26/EU and of Parts 1 of Annex I of Machinery Directive 2006/42/EC. -
Page 23: Warranty
Fx: 800.323.6496 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
