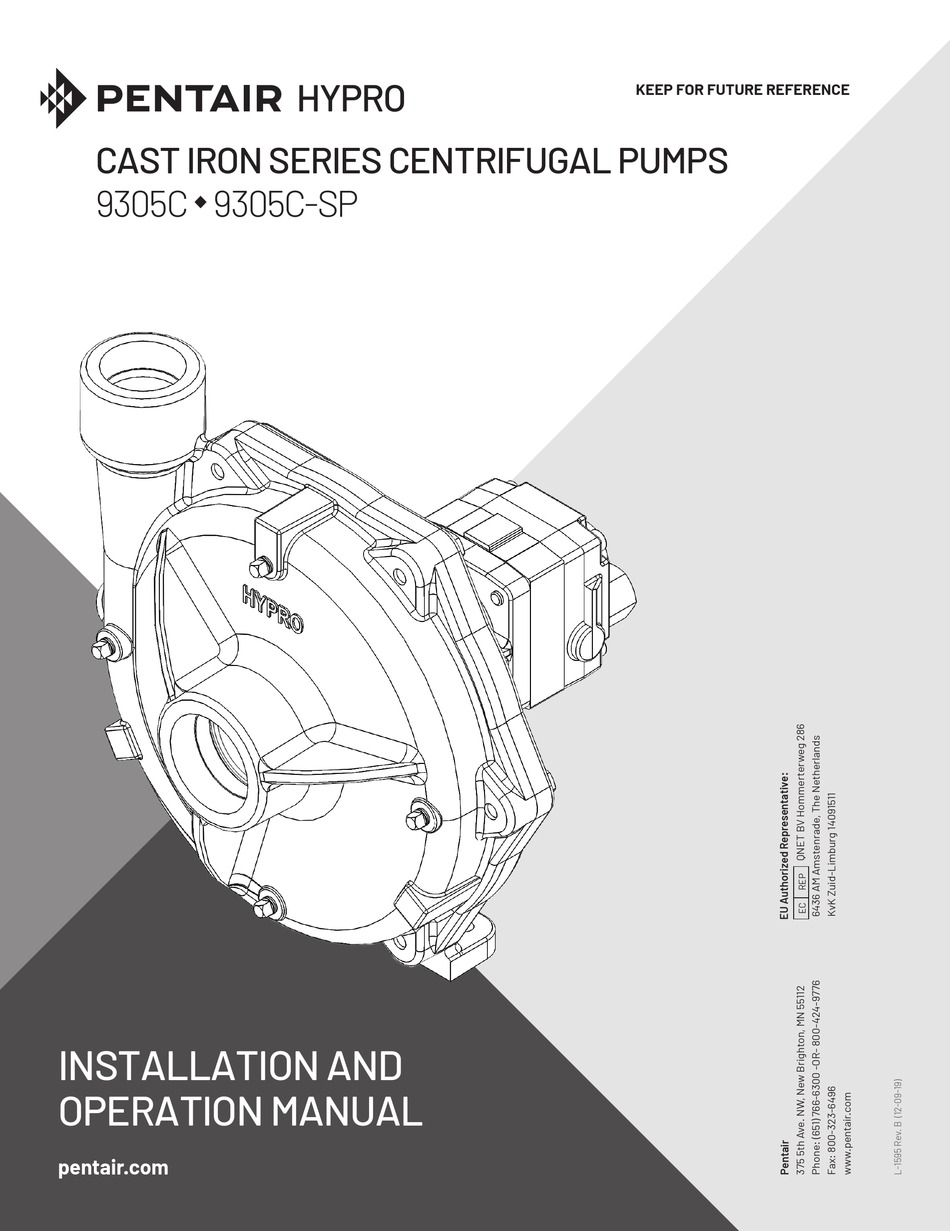

- Page 1 KEEP FOR FUTURE REFERENCE CAST IRON SERIES CENTRIFUGAL PUMPS 9305C 9305C-SP INSTALLATION AND OPERATION MANUAL pentair.com...
-
Page 2: Table Of Contents
Contents EU Languages ..................................3 Introduction.................................4 Description..............................4 Intended Uses................................4 Purpose of Manual..............................4 Misuses................................4 Pump Identification..............................5 Pump Technical Data..............................5 Fluid Pumping Applications............................7 Tools................................7 Lifting, Transport, and Intermediate Storage.......................7 Assembly and Installation................................8 Assembly............................8 Installation............................8 Plumbing Diagram..............................9 Control Systems ..............................10 Commissioning, Start-Up, Operation, Shutdown........................10 Information.............................10 Start-Up, Operation, Shutdown..........................11 Maintenance and Servicing..............................12 Information..........................12 D i s p o s a l . -
Page 3: Eu Languages
Hypro sont fournis en anglais. Pour trouver une copie dans votre langue maternelle pour aller a www.hypro.pentair.com (French) NON tentare di installare la vostra pompa prima di leggere il manuale. Esemplare originale del manuale per Hypro pompe sono in inglese. Per trovare una copia nella vostra lingua andare a www.hypro.pentair.com (Italian) Не пытайтесь установить ваш насос до чтения руководства. Оригинальные копии этого руководства для насосы Hypro на английском языке. Найти копию на ваш родной язык перейти к www.hypro.pentair.com (Russian) NO intente instalar su bomba antes de leer el manual. -
Page 4: Introduction
Introduction Description Hypro centrifugal pumps are designed for creating and boosting pressure in fluid circuits. The pump operates by taking in fluid from the inlet port after which it is slung by the impeller and expelled through the outlet port. Construction features include housings, impellers and seals which come in a variety of materials in order to be resistant to a range of chemicals. Standard models of centrifugal pumps rotate clockwise, when looking at the front (Volute end) of the pump. Intended Uses Hypro centrifugal pumps are intended for creating or boosting dynamic pressure in approved fluids. Hypro centrifugal pumps should never be used to pump liquids above 140°F (60°C), or below 34°F (1°C). For pumps equipped with hydraulic motors, the pump should not be run if the hydraulic oil temperature exceeds 160°F (71°C). -
Page 5: Pump Identification
Pump Identification Hypro uses serialized labeling to enable users to precisely identify the pump’s manufacturing date. Serial Number: First and second digits: year (14 = 2014) Third through fifth digits: consecutive day of the year the pump was manufactured. Sixth through tenth digits: unique pump serial number. Pump Technical Data (All specifications and performance data are based on water as a carrier fluid.) 9305C-HM3C... - Page 6 Pump Technical Data Hydraulic Hydraulic Motor Hydraulic Max Flow Max Pump Motor Inlet Hydraulic Mounting Pump Outlet Flow Rate GPM Pressure Pump Ports Weight Max PSI Ports Bolts Max PSI Rate GPM [LPM] PSI [BAR] lb[kg] [BAR] [BAR] [LPM] 1/2” NPT 2”...
-
Page 7: Fluid Pumping Applications
Fluid Pumping Applications Pump Materials Compatibility Impeller Pump Housing Seal Application Silicon Nylon Cast Iron Ceramic Carbide Weed Control Chemicals Insect Control Brush Control Pest Control Chemicals and Fumigants Liquid Fertilizers Powdered Fertilizers Fluid Transfer Acids Table 1 Flammable liquids, sewage, and clean water should never be pumped through a Hypro pump. Hypro pumps are not designed to be used as clean water pumps as defined in 10CFR Parts 429 and 431. -
Page 8: Assembly And Installation
Figure 1 Transport • All Hypro pumps are capable of being transported by air, sea, rail or motor vehicle. When the pump is shipped, ensure that the pump is moved in accordance with local and national laws and is properly secured to prevent unwanted movement which could cause damage to person or property. Prior to shipping, all fluids should be removed from the pump. -
Page 9: Plumbing Diagram
• If a rigid plumbing system is to be used on a Hypro centrifugal pump, the system must be properly aligned with the inlet and outlet ports. • For pumps with gas engines, the exhaust must be directed away from operators and anyone standing nearby to ensure that exhaust fumes do not enter their breathing zone. -
Page 10: Control Systems
• Closed center (Pressure-Compensated) systems • Metering orifices needed for optimal performance • Use the smallest motor possible • Closed center Load Sensing (Flow and Pressure-Compensated) systems • No special requirement for bypass or metering orifices Hydraulic system plumbing • When installing the hydraulic motor into the tractor or sprayer’s hydraulic system, make sure that no dirt or liquid gets into the hydraulic motor. KEEP ALL HYDRAULIC CONNECTIONS CLEAN. • Ensure return line is connected to low pressure return port on the tractor recommended for hydraulic motors, the ports are identified on the motor casting. Hydraulic supply lines should be at least the same size as the hydraulic motor port or larger. -
Page 11: Start-Up, Operation, Shutdown
• Hypro centrifugal pumps should only be used on tractors or tow-behind spray platforms which have electrically conductive tires in order to reduce the risk of electrocution. • Never operate a Hypro centrifugal pump outside while there is a chance of getting struck by lightning. • Never leave electrical wires or plumbing components where they can be a tripping hazard or become entangled in a moving component. Ideally, electrical cables, hoses, pipes and fittings should be routed overhead. In the event electrical wiring must be routed over the ground, operators are required to use rubber ramps if they cross a gangway. •... -
Page 12: Maintenance And Servicing
Closed Center (Pressure-Compensated) Systems Adjusting Centrifugal Pump Output 1. Open the bypass adjusting screw in the hydraulic motor three (3) turns and secure it in place with the bypass jam nut. 2. Start the tractor and allow hydraulic oil to circulate for approximately 10 to 15 minutes or until adequately warmed 3. Close and lock down the bypass adjusting screw in the hydraulic motor. 4. Prime the centrifugal pump with all valves open. (See Priming the Pump.) 5. Refer to sprayer manufacturer’s manual to set spraying pressure and flow. To change the flow or pressure generated by the pump, slowly adjust tractor’s flow control valve. 6. To shutdown the pump, move the selector for the tractor spool valve to the float position and allow the pump to come to a gradual stop. If the pump is not brought to a gradual stop, the sudden change in hydraulic pressure and pump RPM could cause damage to the pump’s drive system. -
Page 13: Cleaning
Cleaning Your pump will last longer and give best performance when properly taken care of. Proper pump care depends on the liquid being pumped and when the pump will be used again. After each use, flush pump with a neutralizing solution for the liquid just pumped. Follow with a clean water rinse. This is especially important for corrosive chemicals. It is good practice to clean the pump after each use to prevent deposits from forming and damaging the pump. For infrequent use and before long periods of storage, drain pump thoroughly. Open any drain plugs, remove suction hose from liquid, and blow pump dry with air. An antifreeze/rust inhibitor should be injected into the pump before both ports are plugged and the pump is stored. Plug all ports to keep out air until pump is used again. -
Page 14: Replacement Parts
Replacement Parts The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used. Failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective, it should be sent back to Hypro for service. 9305C-HM3C, 9305C-HM3C-SP, 9305C-HM3C-BSP Hydraulic Motor Part No. -
Page 15: Ec Declaration Of Incorporation
EC DECLARATION OF INCORPORATION EC Declaration of Incorporation Manufacturers Name: Pentair Flow Technologies, LLC Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Emission Directive 2010/26/EU and of Parts 1 of Annex I of Machinery Directive 2006/42/EC. - Page 16 Check with your shipping company for specific instructions. For a detailed list of where Pentair trademarks are registered, please visit www.pentair.com/en/registrations.html. Pentair trademarks and logos are owned by Pentair PLC. or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
