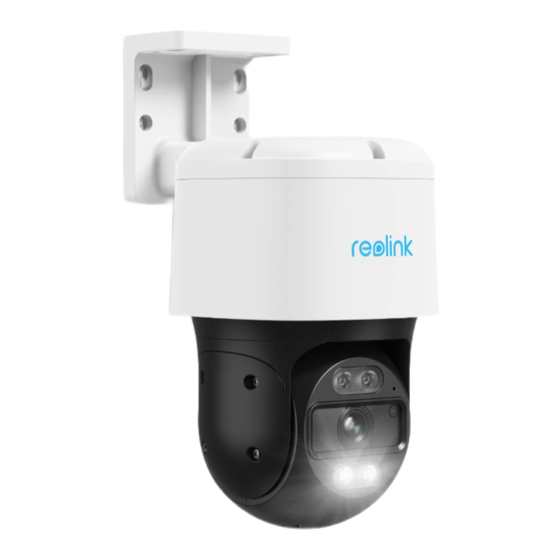

- Page 1 Q S G 1 _ A _ E N Quick Start Guide Apply to: RLC-830A @ R e o l i n kTe c h h t t p s ://re o l i n k . c o m...
-
Page 2: Table Of Contents
Contents What's in the Box What's in the Box Camera Introduction Connection Diagram Camera Waterproof Lid Mounting Hole Template Set UP the Camera Mount the Camera Troubleshooting Specification Quick Start Guide Surveillance Sign Ethernet Cable Notification of Compliance Pack of Screws English English... -
Page 3: Camera Introduction
Camera Introduction Mount Speaker lnfrared Light Built-in Mic Lens SD Card Slot Daylight Sensor Spotlight Reset Button * Press for about 10 seconds to restore the Waterproof Lid device to factory settings. Network Cable Power Port (Optional) English English... -
Page 4: Connection Diagram
Connection Diagram Set UP the Camera Before using the camera, please connect your camera as instructed Download and launch the Reolink App or Client software, and follow the below to finish initial setup. onscreen instructions to finish initial setup. 1. Connect the camera to a Reolink NVR (not included) with an Ethernet cable. 2. Connect the NVR to your router, and then power on the NVR. • On Smartphone NOTE: The camera should be powered with a 12V DC adapter or a PoE powering device such as PoE injector, PoE switch or Reolink NVR (not in- Scan to download cluded in the package). the Reolink App. PoE IP Camera • On PC Power Adapter Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client. Reolink NVR Router NOTE: eSATA • If you are connecting the PoE camera to a Reolink PoE NVR, please set AUDIO DC 48V HDMI up the camera via the NVR interface. -
Page 5: Mount The Camera
• Do not place the camera in a shaded area and point it towards a well-lit area. Otherwise, it may result in poor image quality. To ensure best image quality, the lighting condition for both the camera and the capture object should be the same. • Make sure the power ports are not directly exposed to water or moisture and not blocked by dirt or other elements. • The waterproof camera can work properly under conditions like rain and snow. However, it doesn’t mean the camera can work underwater. • Do not install the camera at places where rain and snow can hit the lens directly. 1. Drill holes in accordance with the mounting hole template. 2. Install the mount base with screws included in the package. 3. To adjust the camera direction, you may control the camera to pan and tilt via Reolink App or Client. NOTE: Use the drywall anchors included in the package if needed. English English... -
Page 6: Troubleshooting
Troubleshooting Mount the Camera to Ceiling Camera is not powering on 1. Drill holes in accordance with If your camera is not powering on, please try the following solutions: the mounting hole template. 2. Install the mount base with screws included in the package. • Make sure your camera is powered on properly. The PoE camera should 3. To adjust the camera direction, be powered by a PoE switch/injector, a Reolink NVR or a 12V power you may control the camera to adapter. pan and tilt via Reolink App or • If the camera is connected to a PoE device as listed above, connect it to Client. another PoE port and check again. • Try again with another Ethernet cable. NOTE: Use the drywall anchors included in the package if needed. Picture is not clear If the picture from the camera is not clear, please try the following solutions: • Check the camera lens for dirt, dust or spiderwebs. Please clean with a soft, clean cloth. - Page 7 FCC Compliance Statement Infrared Night Vision: 15 Meters This device complies with Part 15 of the FCC Rules. Operation is subject Day/Night Mode: Auto switchover to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. General Dimension: 248 x 110x 147mm NOTE: This equipment has been tested and found to comply with the Weight: 1.21KG limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Operating Temperature: -10°C~+55°C (14°F~131°F) These limits are designed to provide reasonable protection against Operating Humidity: 10%~90% harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not For more specifications, visit https://reolink.com/. installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. English English...
- Page 8 ISED Compliance Statements collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Limited Warranty This product comes with a 2-year limited warranty that is valid only if purchased from Reolink Official Store or a Reolink authorized reseller. Simplified EU Declaration of Conformity Learn more: https://reolink.com/warranty-and-return/. Reolink declares that this device is in compliance with the essential re- NOTE: We hope that you enjoy the new purchase. But if you are not quirements and other relevant provisions of EMC Directive 2014/30/EU satisfied with the product and plan to return, we strongly suggest that and LVD 2014/35/EU. you reset the camera to factory default settings before returning. Terms and Privacy UKCA Declaration of Conformity Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children. Reolink declares that this product is in compliance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment Safety Regulations 2016.
- Page 9 End User License Agreement By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement (“EULA”) between you and Reolink. Learn more: https://reolink.com/eula/. Technical Support If you need any technical help, please visit our official support site and contact our support team before returning the products, https://support.reolink.com. English English...
