Graco VIS-CON 226-816 Instructions Manual

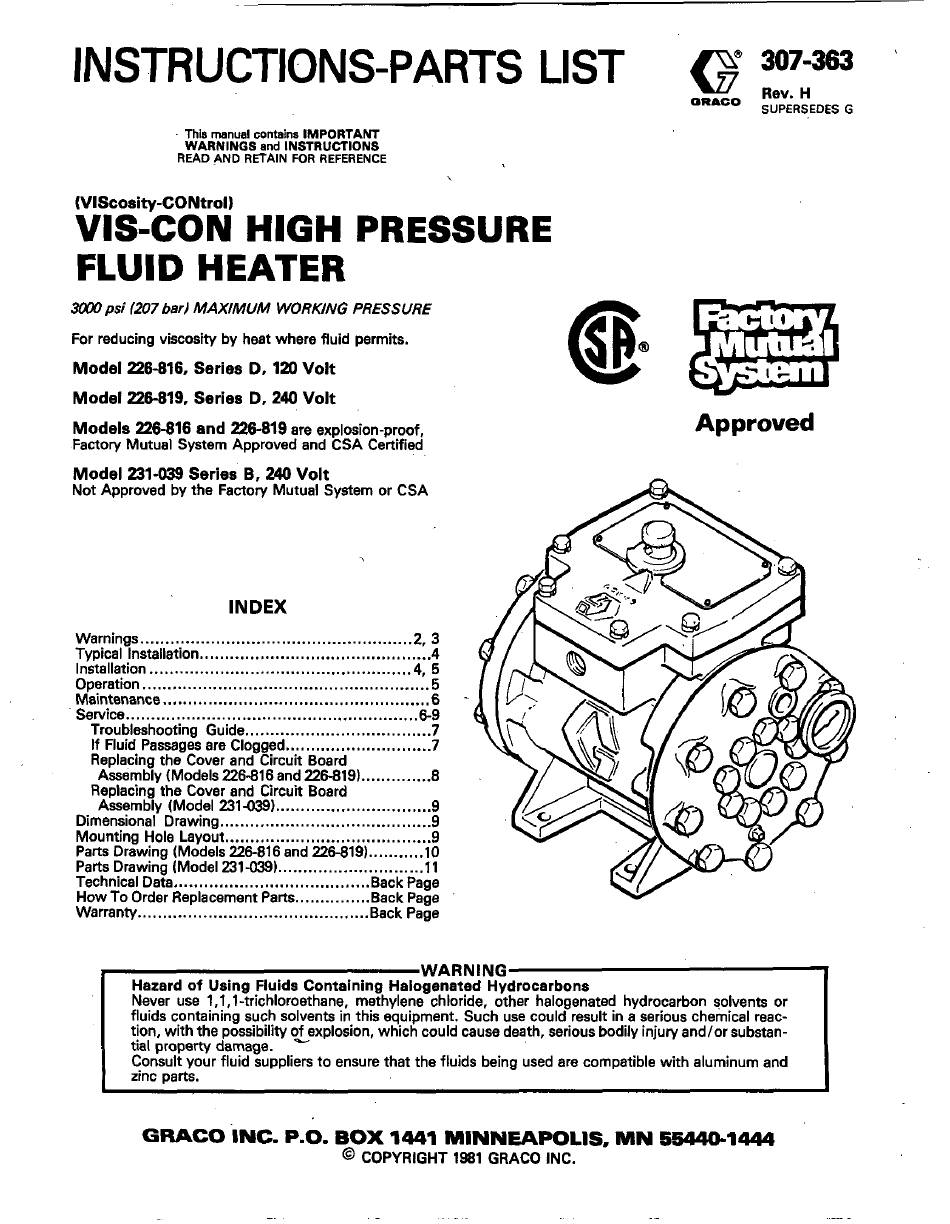

INSTRUCTIONS-PARTS LIST
307-363
SUPERSEDES G
Rev. H
This
manual oontains
IMPORTANT
WARNINGS
and
INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
(VIScositv-CONtroll

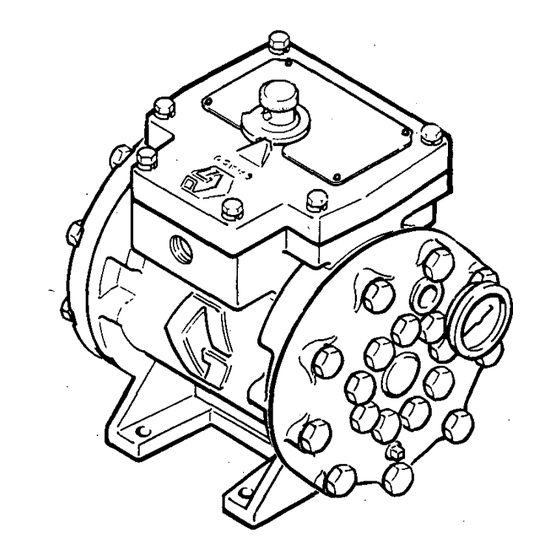

VIS-CON HIGH PRESSURE
FLUID HEATER
31xM
psi
1207 bar) MAXIMUM WORKING PRESSURE
For reducing viscos'ky by heat where fluid permits.
Model 225816, Series
D.
120 Volt
Model 226-819. Series
D,
240
Volt
Models 226816 end 226-819 are explosion-proof,
Factory Mutual System Approved and CSA Certified
Not Approved by the Factory Mutual System or CSA
Model 231-039 Series B, 240
Volt
INDEX
Warnings.
....................................................
.2, 3
Typical Installation
..............................................
4
Installation
....................................................
4. 5
Operation
.........................................................
6
Maintenance
.....................................................
6
Service
.........................................................
.6-9
Troubleshooting Guide
.....................................
7
If Fluid Passages are Clogged
.............................
7
Replacing the Cover and Circuit Board
Replacing the Cover and Circuit Board
Assembly (Models 226-816 and 226419) 8
Assembly (Model 231-0391
...............................
9
Dimensional Drawina
..........................................
9
..............
-
Mounting Hole Layout
.........................................
9
Parts Drawing (Models 226-816 and
226-8191
...........
10
Technical Data Back Page
Parts Drawing (Model 231-0391 11
How To Order Replacement Parts
...............
Back Page
Warranty
..............................................
Back Page
.............................
.......................................
Approved
Hazard
of
Using Fluids Containing Halogenated Hydrocarbons
WARNING
fluids containing such solvents in this equipment. Such use could result in a serious chemical reac-
Never use 1.1.1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
tion, with the possibility oJexplosion, which could cause death, serious bodily injury andlor substan-
tial
property damage.
Consult your fluid suppliers to ensure that the fluids being used are compatible with aluminum and
zinc parts.
GRACO
INC.
P.O. BOX 1441
MINNEAPOLIS. MN 55040-1444
@
COPYRIGHT 1981 GRACO INC.
