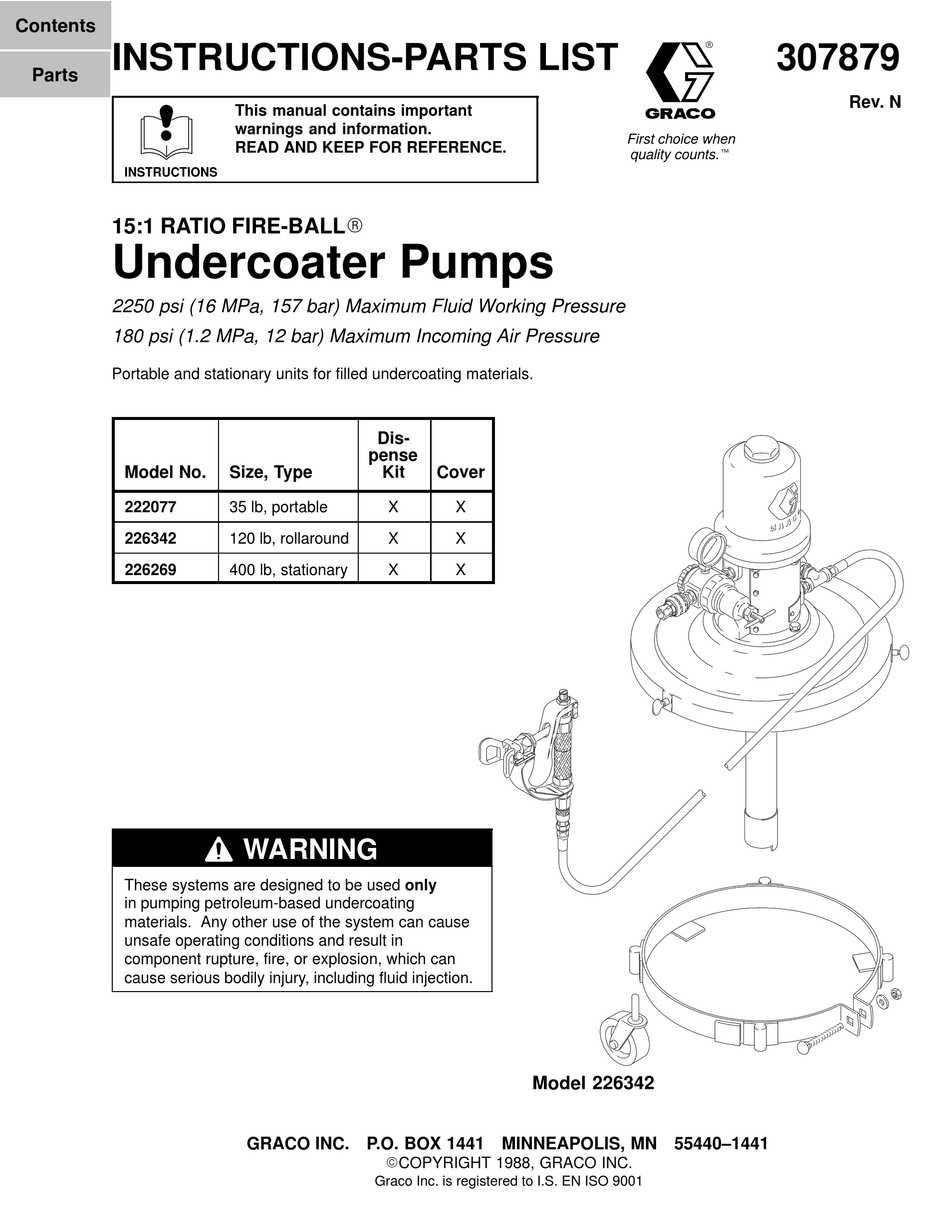

INSTRUCTIONS-PARTS LIST
Parts
INSTRUCTIONS

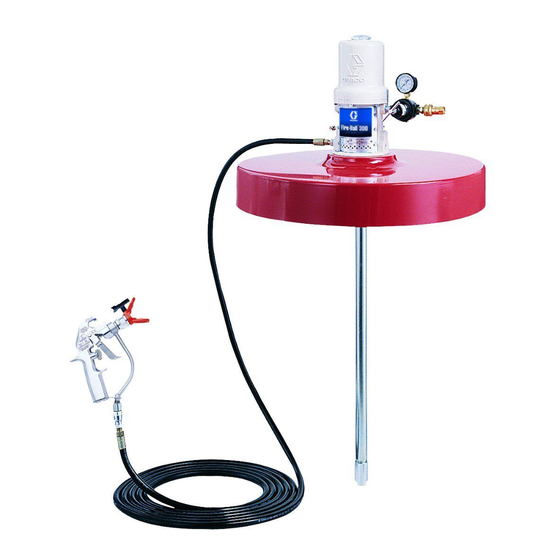

15:1 RATIO FIRE-BALLR
Undercoater Pumps
2250 psi (16 MPa, 157 bar) Maximum Fluid Working Pressure
180 psi (1.2 MPa, 12 bar) Maximum Incoming Air Pressure
Portable and stationary units for filled undercoating materials.
Model No.
222077
226342
226269
These systems are designed to be used only
in pumping petroleum-based undercoating
materials. Any other use of the system can cause
unsafe operating conditions and result in
component rupture, fire, or explosion, which can
cause serious bodily injury, including fluid injection.
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
Dis-
pense
Size, Type
Kit
35 lb, portable
X
120 lb, rollaround
X
400 lb, stationary
X
WARNING
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1988, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Cover
X
X
X
Model 226342
307879
First choice when
quality counts.t
Rev. N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 222077 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco 222077

  • Page 1 Model 226342 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1988, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
  • Page 2: Table Of Contents

    ......Model 222077, 35-lb Pail Size Unit ... . .
  • Page 3: Warnings

    Warnings Warning Symbol Caution Symbol WARNING CAUTION This symbol alerts you to the possibility of serious This symbol alerts you to the possibility of damage to injury or death if you do not follow the instructions. or destruction of equipment if you do not follow the instructions.
  • Page 4 D This equipment is for professional use only. D Read all the instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor.
  • Page 5: Installation

    Installation Grounding D Fluid hoses: Use only electrically conductive hoses WARNING with a maximum of 500 feet (150 m) combined hose length to ensure grounding continuity. FIRE AND EXPLOSION HAZARD Before operating, ground the system as D Spray gun: Obtain grounding through connection to explained below.
  • Page 6 2. Install an air line lubricator (F) for automatic air supplied. motor lubrication. D For Models 222077 & 226269: Remove the cover 3. Install the air regulator (C) to control pump speed from the supply drum and install the pump and and pressure.
  • Page 7: Operation

    Operation Pressure Relief Procedure 4. Hold a metal part of the gun firmly to the side of a WARNING grounded metal pail, and trigger the gun to relieve pressure. INJECTION HAZARD 5. Engage the gun safety latch. Fluid under high pressure can be in- jected through the skin and cause seri- 6.
  • Page 8 Operation Start-up: Single or Multiple Pump Systems 1. Close the air regulators and bleed-type master air 6. If your pump accelerates quickly, or is running too valves to all but one pump. fast, stop it immediately and check the fluid supply. If the supply container is empty and air has been 2.
  • Page 9: Model 222077, 35-Lb Pail Size Unit

    Parts Model 222077 Dispense Kit 222079 35-lb Pail Size Unit Part No. Description No. Part No. Description 109075 AIR REGULATOR; See 307204 for parts. 206405 PUMP, 15:1 Ratio Fire-ball; 208536 COUPLER, quick disconnect See 306531 for parts. 204940 SWIVEL; See 306861 for parts.
  • Page 10: Model 226342, 120-Lb Drum Size Unit With Dolly

    Parts Model 226342 120-lb Drum Size Unit with Dolly No. Part No. Description 206699 PUMP, 15:1 Ratio Fire-ball; See 306531 for parts. 222079 DISPENSE KIT; See Parts List on page 9. 204574 COVER; See 306345 for parts. 204144 BASE, dolly; Includes items 4a to 4d 100023 WASHER, flat;...
  • Page 11: Model 226269, 400-Lb Stationary Drum

    Parts Model 226269 400-lb Stationary Drum Size Unit No. Part No. Description 206700 PUMP, 15:1 Ratio Fire-ball; See 306531 for parts. 222082 DISPENSE KIT; See Parts List below. 200326 COVER; drum Dispense Kit 222082 Part No. Description 109075 AIR REGULATOR; See 307204 for parts.
  • Page 12: Accessories

    Accessories Accessories must be purchased separately. Use only GENUINE GRACO PARTS AND ACCESSORIES. Air Line Lubricator Bleed–type Master Air Valve 107142 250 psi (1.7 MPa, 17.4 bar) Maximum Working 300 psi (2.1 MPa, 21 bar) Maximum Working Pressure Pressure Relieves air trapped in the air line between the 214847 3/8”...
  • Page 13 Notes 307879...
  • Page 14: Graco Warranty

    Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
