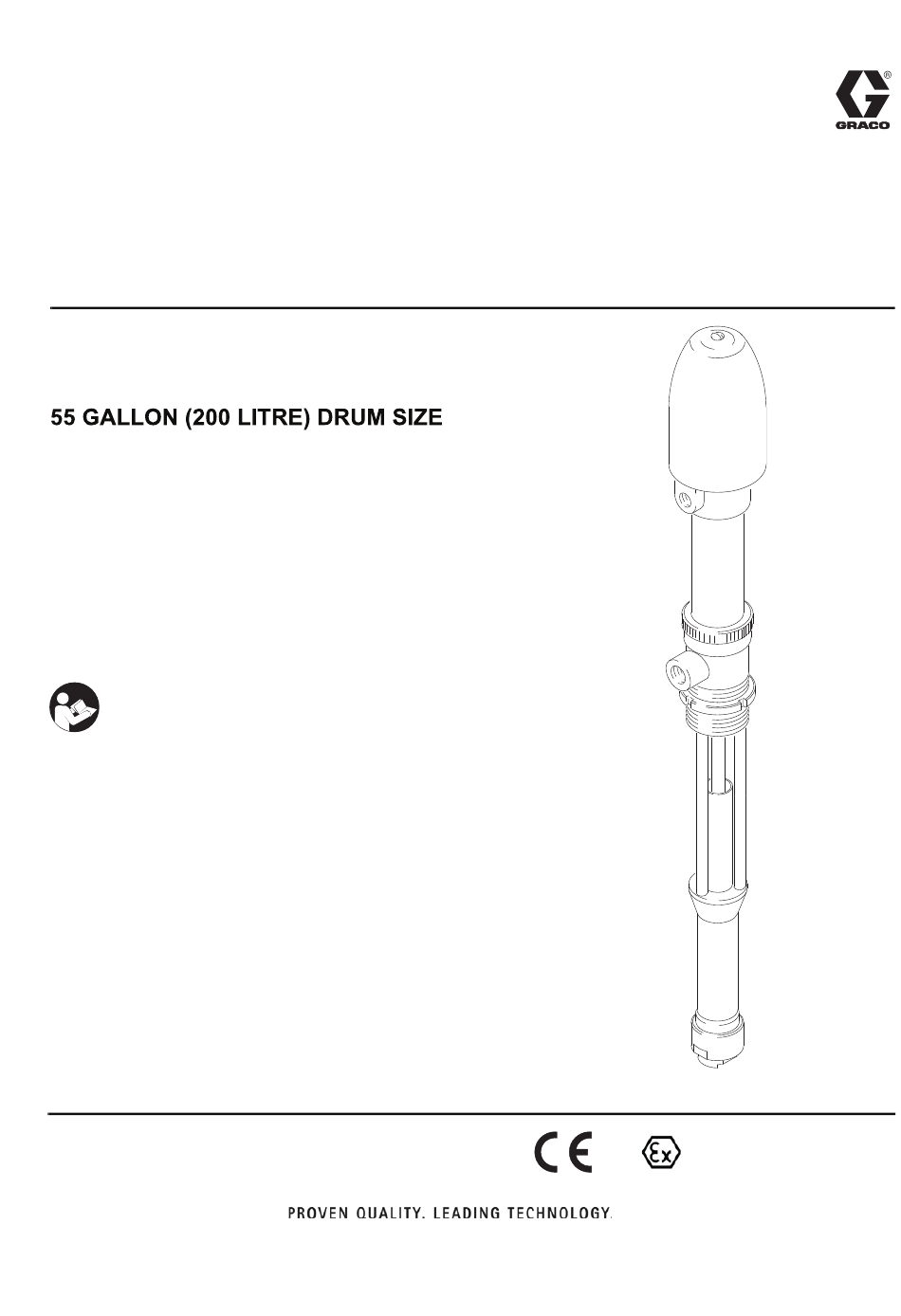

Instructions - Parts List
2:1 Ratio Standard Pump
360 psi (25 bar) Maximum Fluid Working Pressure
180 psi (12.5 bar) Maximum Air Input Pressure
Model 226040, Series G
Stainless Steel, PTFE, Packed
Important Safety Instructions.
Read all warnings and instructions. Save
these instructions.

Table of Contents

Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pump Service (Model 226040) . . . . . . . . . . . . . . . . . . 10
Pump Service (Model 223954) . . . . . . . . . . . . . . . . . . 11
Pump Parts (Model 226040) . . . . . . . . . . . . . . . . . . . 12
Pump Parts (Model 223954) . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . 22
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

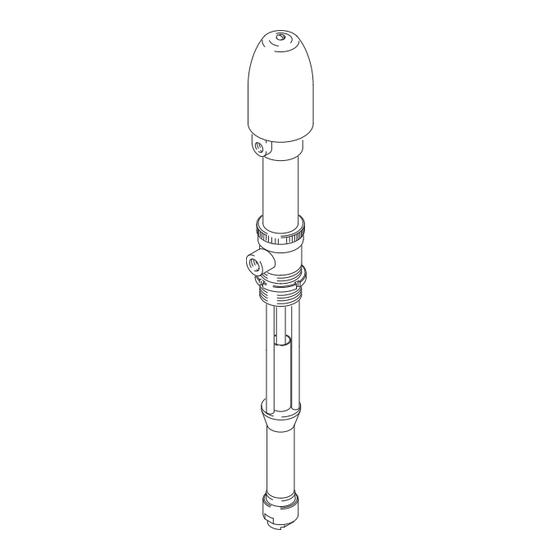

Model 223954 Shown
II 1/2 G T6
ITS03ATEX11227
2575
307026S
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graco G Series

Summary of Contents for Graco G Series

  • Page 1: Table Of Contents

    Graco Standard Warranty ..... 22 Graco Information ......22...

  • Page 2: Symbols

    Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. • Do not alter or modify this equipment. Use only genuine Graco parts and accessories. • Check equipment daily. Repair or replace worn or damaged parts immediately.
  • Page 3 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. • Ground the equipment and the object being sprayed. Refer to Grounding the System on page 4. •...

  • Page 4: Installation

    Contact your Graco distributor for assistance in planning a system to suit your needs. 2. Always use Genuine Graco Parts and Accessories. 3. Reference numbers and letters in parentheses refer to the callouts in the figures and the partslists on pages 12 through 15.
  • Page 5 Installation Pump Air Regulator Air Line Lubricator Air Line Filter Bleed-Type Master Air Valve (required, for pump) Fluid Drain Valve (required) 3/8 npt(f) Fluid Return Inlet G Grounded Air Hose Grounded Fluid Hose Pump Fluid Inlet 1/4 npt(f) Pump Air Inlet Bung Locknut M 1/2 npt(f) Pump Fluid Outlet Ground Wire (required;...
  • Page 6 Installation System Accessories • An air line filter (C) removes harmful dirt and moisture from the compressed air supply. Refer to Fig. 2 and the Accessories section. • A second bleed-type air valve (D) isolates the air NOTE: To ensure maximum pump performance, be sure line accessories for servicing.

  • Page 7: Operation

    Operation Pressure Relief Procedure WARNING PRESSURIZED EQUIPMENT HAZARD The system pressure must be manually relieved to prevent the system from starting or spraying accidentally. To reduce the risk of an injury from accidental spray from the gun, splashing fluid, or 03765 moving parts, follow the Pressure Relief Procedure Fig.

  • Page 8: Troubleshooting

    Operation Corrosion Protection for Pump Lubrication If you are not using an accessory air line lubricator, CAUTION manually lubricate the motor daily. Disconnect the air regulator, place about 15 drops of light machine oil in the Water, or even moist air, can cause your pump to pump air inlet, reconnect the regulator and turn on the air corrode.
  • Page 9 NOTES 307026...

  • Page 10: Pump Service (Model 226040)

    Pump Service (Model 226040) BEFORE YOU START 7. On the upper connecting rod (120), install one cup packing (107**) with the lips facing up, the bearing 1. Have all the necessary repair parts on hand. (108**), and the second packing (107**) with the lips Recommended spare parts are marked with an facing down.

  • Page 11: Pump Parts (Model 226040)

    Pump Parts Model 226040, Series G Stainless Steel, PTFE Packed 118** 134** LIPS FACE DOWN 107** LIPS FACE UP 108** 107** LIPS FACE DOWN GROOVES FACE UP TORQUE TO 20-25 ft-lb (27-34 N•m) 104** GROOVES FACE DOWN 111** LIPS FACE UP 112** 111** LIPS FACE...
  • Page 12 Pump Parts Model 226040, Series G Stainless Steel, PTFE Packed Ref. PART No. Part No. Description Qty. DESCRIPTION 101 204722 AIR MOTOR; 166564** . BEARING, connecting rod See 307851 for parts 204725 . FRAME, displacement pump 102 204724 DISPLACEMENT PUMP ASSY 204885 .

  • Page 13: Accessories

    Accessories Must be purchased separately. AIR REGULATOR AND GAUGE 300 psi (21 bar) MAXIMUM WORKING PRESSURE GROUNDING CLAMP 103538 GROUND WIRE 208950 202156 0-200 psi (0-14 bar) Regulated Pressure Range; 25 ft (7.6 m) long, 3/8 npt(f) inlet and outlet. 12 gauge (1.5 mm FLUID DRAIN VALVE BLEED-TYPE MASTER AIR VALVE...
  • Page 14 Accessories FLUID FILTER 300 psi (21 bar) MAXIMUM WORKING PRESSURE For filtering paint in a circulating system. 6 gpm (22.7 liter/min) maximum volume. 3/4 npt(f) inlet and outlet. 213057 30 mesh 213058 60 mesh MOUNTING BRACKET 203987 213059 100 mesh For mounting Model 223954 to a wall.

  • Page 15: Dimensions

    Dimensions 1/4 npt(f) AIR INLET 3/8 npt(f) RETURN 1/2 npt(f) FLUID OUTLET 2” npsm (Adjustable) 3/4 npt(f) FLUID INTAKE (MODEL 223954 ONLY) Pump No. Overall Length Pump Length Weight 226040 50.25 in 32.375-33.875 in. 17 lb (7.7 kg) (1276 mm) (822-860 mm) 223954 30.5 in.

  • Page 16: Service Information

    Service Information Listed below by the assembly changed are Old, New, and Added parts. Assembly Changed Status Ref. No Part No. Name 204724 Displ. Pump 161789 Bearing to Series F 186647 Bearing 161794 Bearing 186648 Bearing Added 111791 Seal 223955 Disp. Pump 186563 Adapter to Series B...

  • Page 17: Technical Data

    Technical Data Category Data Maximum fluid working pressure 360 psi (25 bar) Air input pressure operating range 30-180 psi (2-12 bar) Pump cycles per 1 gallon (3.8 liters) 40 (50 for Model 223954) Maximum recommended pump speed for 100 cycles per min continuous operation Air consumption approx.
  • Page 18 Technical Data KEY: Fluid Outlet Pressure - Black Curves NOTE: Pump may be operated continuously to shaded Air Consumption - Gray Curves area (100 cpm). Area shown is for Model 226040 only. For Model 223954, 100 cpm line is at 1.5 gpm. cycles/min (Model 223954) cycles/min (Other Models) scfm...

  • Page 19: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
