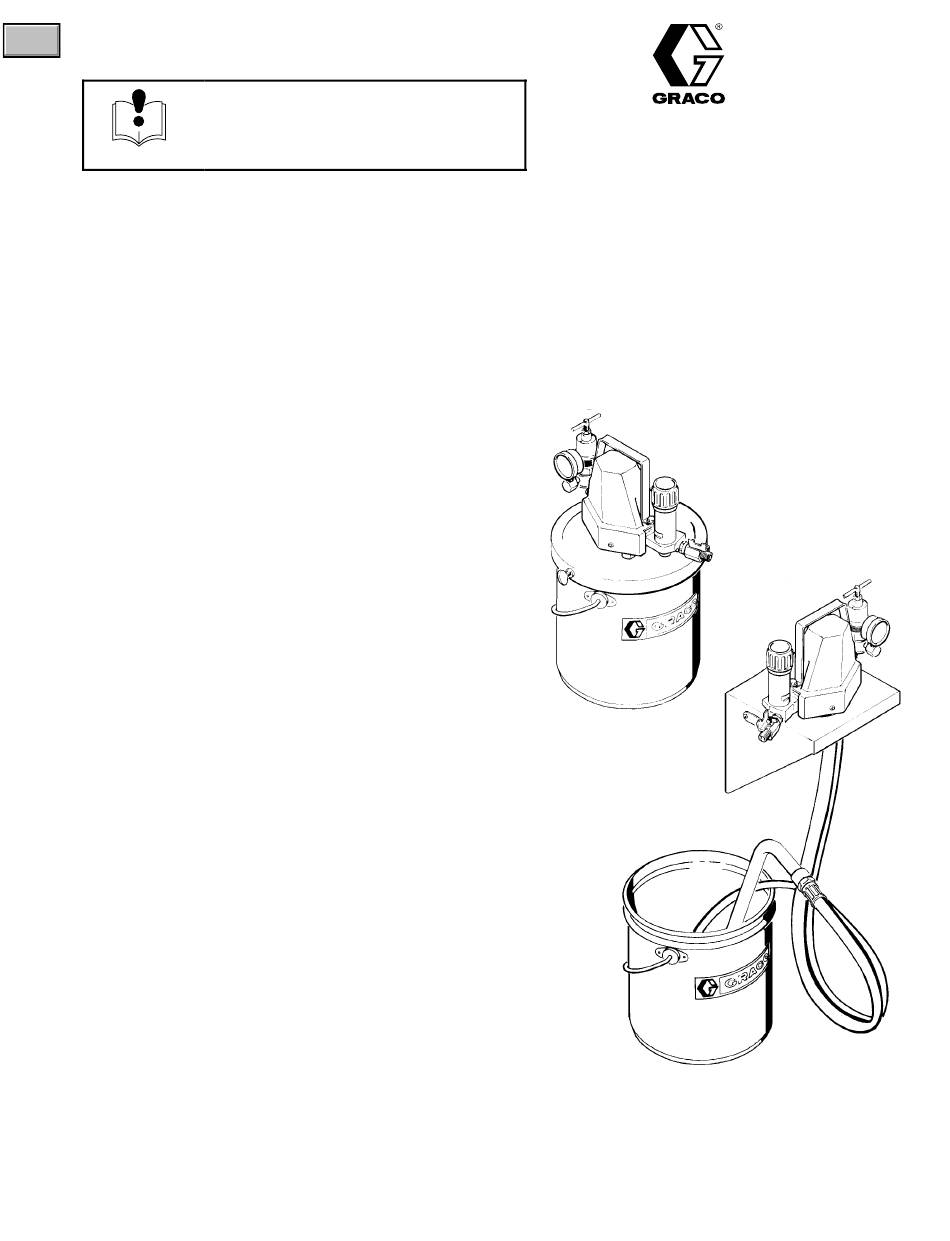

INSTRUCTIONS-PARTS LIST
Parts
INSTRUCTIONS
FOR SUPPLYING ONE OR TWO AIR SPRAY GUNS
Princet Air Powered Diaphragm
Pump
0.7 MPa, 7 bar (100 psi) Maximum Working Pressure
Model 214826, Series C

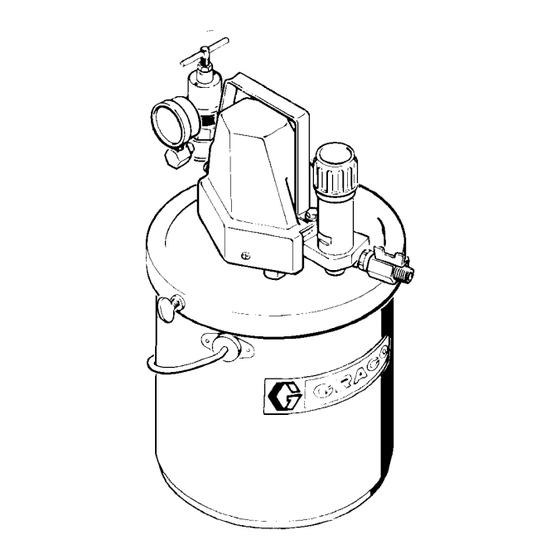

Basic portable sprayer
Model 226928
Portable sprayer with air and fluid hoses,
Series 700 spray gun, and atomizing air regulator
Model 214827, Series B
Basic wall-mounted sprayer
Model 226929
Wall-mounted sprayer with air and fluid hoses, spray
gun, and atomizing air regulator
Model 223837, Series A
Basic portable sprayer
Model 223838
Portable sprayer with atomizing air regulator
Model 223839
Portable sprayer with 7.6 m (25 ft) air and fluid hoses,
Series 800 spray gun, 25W air cap, and atomizing air
regulator
Model 224269, Series A
Same as 223839 except has 15.2 m (50 ft) hoses
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1978, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
307319
First choice when
quality counts.t
Rev. V
Advertisement
Table of Contents
Related Manuals for Graco Prince C Series
Summary of Contents for Graco Prince C Series
- Page 1 Series 800 spray gun, 25W air cap, and atomizing air regulator Model 224269, Series A Same as 223839 except has 15.2 m (50 ft) hoses GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1978, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
........This symbol alerts you to the possibility of damage to Graco Phone Number ...... -
Page 3: Warnings
D This equipment is for professional use only. D Read all the instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. - Page 4 Typical Installation KEY FOR FIGS. 1 AND 2 100 series numbers (i.e., 116) are included with the complete Portable Sprayer Model 226928 or 223839. 200 series numbers (i.e., 221) are included with the complete Wall-Mounted Sprayer Model 226929. Two digit numbers (i.e., 35) are included in the basic sprayers. Alpha characters (i.e., A) are accessories and must be purchased separately.
- Page 5 Typical Installation Model 226929, Wall-mounted Sprayer Includes Basic Pump Model 214827, air and fluid hoses, spray gun, and atomizing air regulator. 209,216 MAIN AIR SUPPLY Fig. 2 For use with 214826 or 226928 sprayer. 061132 HOSE, nylon, 1/4 in. ID, 30 ft (9 m) long 101390 LOCKWASHER, 3/8 in.
-
Page 6: Installation
Installation All Sprayers Ground the Sprayer Connect the air and fluid hoses as shown in Figs. 1, 2, Static electricity is created by the high velocity flow of and 3. fluid through the pump and hose. When the static electricity is discharged, sparking occurs. Sparks can WARNING ignite vapors from solvents, the fluid being sprayed, dust particles, and other flammable substances, result-... -
Page 7: Operation
Operation Pressure Relief Procedure All Sprayers To reduce the risk of serious bodily injury, including Turn all regulators fully counterclockwise. Open the splashing fluid or solvent in the eyes or on the skin, or bleed-type master air valve (A) to the pump and in- injury from moving parts, always follow this procedure crease the pressure at the air regulator (209) to make when shutting off the pump, and before checking or... - Page 8 Operation 209,216 MAIN AIR SUPPLY Basic pump Accumulator Air regulator Suction hose Drain hose Suction tube Gauge Manifold Ball valve Plastic tie Air spray gun Air hose Fluid hose Air atomizing kit Bleed type master air valve Air filter Ball valve Fluid regulator Fig.
- Page 9 Operation Accumulator Cleaning The accumulator’s air chamber dampens pressure WARNING pulses when the pump cycles. It can also regulate how much fluid goes to the pump and how much is sent to Many fluids are flammable and/or toxic. Follow the the fluid container.
-
Page 10: Troubleshooting
Troubleshooting 1. Relieve the pressure. WARNING 2. Check all possible causes and problems before To reduce the risk of serious injury whenever you disassembling the pump. are instructed to relieve pressure, always follow the Pressure Relief Procedure on page 7. Problem Cause Solution... - Page 11 Troubleshooting Problem Cause Solution Excessive surges O-ring (37) is worn or damaged Replace. Outlet valve (2) is worn Clean or replace. Not enough air pressure Increase. Exhaust muffler (51) is plugged or iced Clean; use air filter. Leaking at the accumulator cap O-ring (37) is worn or damaged Replace.
-
Page 12: Service
Service NOTE: To reduce down time, have repair parts avail- Diaphragm Refer to Fig. 7. able. See Repair Kit 214835 and 220238. The diaphragm (13) has a long working life. Most Rocker Arm Refer to Fig. 8. problems occur from dirt and lack of lubrication. Do not disassemble the diaphragm unless it is really neces- 1. - Page 13 Service 32,33 48,49 PTFE (SHINY) SIDE DOWN ROUND EDGE FACING DIAPHRAGM 10,11 APPLY LOCTITE 242 TO THREADS TORQUE TO 17 NSm (12 FT-LB) Fig. 7 TORQUE TO 7 NSm (5 ft-lb) Fig. 8 307319...
- Page 14 Portable Sprayer Parts Model 214826 Includes items 101 – 134 Part No. Description Model 223837 Includes items 101 – 134 100016 LOCKWASHER, 1/4 in. 100220 SCREW, thumb, 5/16–18 x 1 in. 100403 PLUG, pipe, 1/8 nptf 101108 PAIL 101962 SCREW, set, 1/4–20 x 3/8 in. 187146 STRAINER Model 214826 162485...
- Page 15 Wall-Mounted Sprayer Parts Model 214827 Includes items 201–234 Model 226929 Includes items 201–239 Part No. Description 100016 LOCKWASHER, 1/4 in. 100403 PLUG, pipe, 1/8 npt(f) 162485 NIPPLE, 3/8 npt(m) x 3/8 npsm 104815 AIR REGULATOR, 0–4 bar (0–60 psi), 21 bar (300 psi) max. inbound air 213a see 308167 for parts 104969...
- Page 16 Basic Pump Parts 31** 33** **32 **33 30** 28** 29** 27** 26** 25** 26** 27** **37 307319...
-
Page 17: Parts
Basic Pump Parts Model 963685, Series C Includes items 1–56 Part Part Description Description 104948 HOUSING, lower 104926 RETAINER, spring 841500 OUTLET VALVE ASSEMBLY 841503 SHUTTLE Includes items 2a–2e 844430** PIN, rocker 844412* . GASKET aluminum 844431** BEARING 848440* . O-RING; PTFE 848446** RING, retaining 101823... -
Page 18: Accessories
Regulator Kit Parts REGULATOR KIT 214882 0–125 psi (0–9 bar) Maximum Working Pressure 300 psi (21 bar) Maximum Inlet Pressure For atomizing the air supply to the gun. PART NO. DESCRIPTION 164724 AIR HOSE, 1/4 in. ID, 254 mm (10 in.) long, cpld 1/8 npt(m) x 1/8 npt(m) swivel 100329... - Page 19 Accessories Agitator 205588 Fluid Pressure Regulator 203831 100 psi (7 bar) Maximum Working Pressure 250 psi (18 bar) Maximum Inbound Pressure See manual 306565 for parts. 0–60 psi (0–4 bar) Regulated Pressure Dolly 205054 Use with portable units for roll around convenience. Air Spray Guns 200 psi (14 bar) Maximum Working Pressure Cover Mounted Agitator 226086...
-
Page 20: Technical Data
Technical Data Air Pressure Range ..1.5 bar (22 psi) minimum to 7 bar (100 psi ) maximum Air Consumption ... . approximately 0.01 m /min per liter of fluid at 4 bar (0.43 cfm per gallon of fluid at 50 psi) Delivery... - Page 21 Performance Chart bar psi 25 CYCLES/MIN 35 CYCLES/MIN 40 CYCLES/MIN 60 CYCLES/MIN 80 CYCLES/MIN 95 CYCLES/MIN 11.4 liters/min FLUID FLOW 307319...
-
Page 22: Warranty
Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
