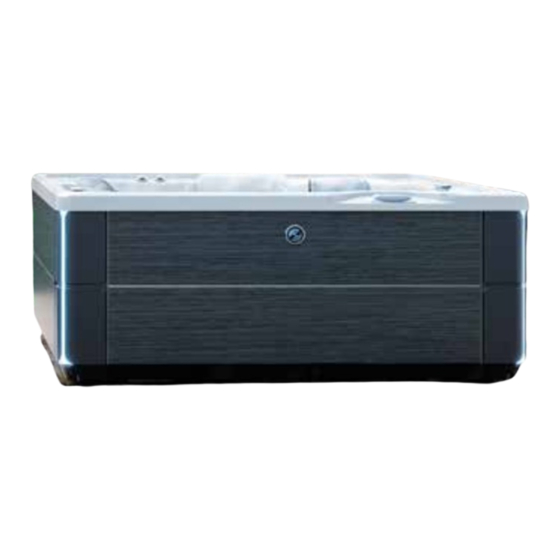

HotSpring HIGHLIFE GRANDEE Owner's Manual
2024
Hide thumbs
Also See for HIGHLIFE GRANDEE:
- Owner's manual (52 pages) ,
- Owner's manual (132 pages) ,
- Pre-delivery instructions (20 pages)
Related Manuals for HotSpring HIGHLIFE GRANDEE
Summary of Contents for HotSpring HIGHLIFE GRANDEE
- Page 1 HIGHLIFE COLLECTION ® 2024 Owner’s Manual GRANDEE ® ENVOY ® VANGUARD ® ARIA ® SOVEREIGN ® ® ® ® PRODIGY JETSETTER JETSETTER...
- Page 2 Prior to registering, you will need the serial number that is located within the equipment compartment of your HOT SPRING spa. To register please go to http://www.hotspring.com/hot-tub-owners/hot-tub-product-warranty-registration or simply scan the QR code below: FOR YOUR RECORDS...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INFORMATION ARIA (MODEL ARN) ............24 SOVEREIGN (MODEL IIN) ..........25 IMPORTANT SAFETY INSTRUCTIONS ......1 PRODIGY (MODEL HN) .............26 IMPORTANT SPA INSTRUCTIONS ........3 JETSETTER LX (MODEL JTN) ..........27 GETTING STARTED JETSETTER (MODEL JJN) ..........28 SPA FEATURES.............. -
Page 4: Safety Information
• Do not operate the audio main controls while inside the spa (if spa is afety nformatIon equipped with an audio component). • Do not connect any auxiliary components (for example, cable IMPORTANT SAFETY additional speakers, headphones, additional audio components) to the audio system unless approved by WATKINS WELLNESS . - Page 5 • Persons taking medications which induce drowsiness, such as DANGER - RISK OF ELECTRICAL SHOCK tranquilizers, antihistamines, or anticoagulants should not use the spa. • Install at least 5 feet (1.5 m) from all metal surfaces. A spa may be installed within 5 feet (1.5 m) of a metal surface if each metal surface HEALTH PROBLEMS AFFECTED BY SPA USE is permanently connected by a minimum No.
-
Page 6: Important Spa Instructions
SPA SHELL AVOIDING THE RISK OF SKIN BURNS Your HOT SPRING spa has an acrylic shell. Stains and dirt generally will not adhere to your spa’s surface. A soft cloth should easily remove • To reduce the risk of injury, before entering a spa the user should most dirt. -
Page 7: Getting Started
ettInG tarted SPA FEATURES (Your spa may look different) 1 ) Control panel has a full color LCD touchscreen 2 ) The SmartJet ® system lets you divert water to different combinations of jets simply by turning the lever. 3) The Comfort Control lever lets you dial in ®... -
Page 8: Quick Start-Up Instructions
COMFORT CONTROL lever. JETSTREAM jets located in the SPRING dealer or online at: FOOTWELL are not adjustable. www.HotSpring.com/planning-tools/pre-delivery-instructions HYDROSTREAM JET The HYDROSTREAM jet is a mid-size hydromassage jet that delivers a great massage to the feet, back and shoulder areas. Turn the faceplate to increase and decrease the jet pressure. - Page 9 • Push the jet button on the home screen then press • Know which water treatment system you will be using and make sure button(s) in jet menu to run the jet pump(s) on high speed for one you have necessary chemicals available. Read all of the instructions minute.
-
Page 10: Equipment Compartment Door
10. RECHECK Activate the clean cycle again to circulate the spa water for another the Total Alkalinity (TA) at 80 ppm, Calcium Hardness ten-minute period. (CH) at 100 ppm (if using Salt system between 25 - 75 ppm), then spa water pH at between 7.4 and 7.8. using a FRESHWATER 9. -
Page 11: Water Quality And Maintenance
This type of damage is considered chemical ® Vanishing Act Calcium Remover FRESHWATER Smart Monitoring abuse and is not covered under the terms of the limited warranty. System *For more information visit www.hotspring.com/ save-water Water Quality and Maintenance Page 8... -
Page 12: Fundamentals Of Water Maintenance
FUNDAMENTALS OF promote scaling and cloud water. The recommended pH reading is between 7.2 - 7.8. To lower the pH level, use FRESHWATER WATER MAINTENANCE pH/Alkalinity Down (sodium bisulfate). To raise the pH level, use FRESHWATER pH/Alkalinity Up (sodium carbonate). •... -
Page 13: The Hot Spring Spa Water Maintenance Program
FRESHWATER SALT SYSTEM acid or any type of sanitizer which is not recommended by WATKINS WELLNESS. The Salt System converts water and sodium chloride salt into chlorine sanitizer. This is compatible with chlorine based systems and chemicals. THE HOT SPRING SPA WATER Although the system is reduced maintenance, it is not automatic. -
Page 14: Vanishing Act Instructions
VANISHING ACT INSTRUCTIONS (Your spa may look different) HEATER RETURN Instructions for Use: IMPORTANT: • Always make sure water is balanced and properly sanitized, After Filling your hot tub, use a test strip to measure the using the EPA approved sanitizer, before entering your hot hardness level of the water. -
Page 15: Vacation Water Care Instructions
OZONE MAINTENANCE LONG TIME PERIODS (5-14 DAYS) (OPTIONAL) Reduced or no ozone bubbles coming from heater return (clogged Prior to leaving: ozone injector) or no ozone, clean the injector: 1. At least one day before you leave, set the temperature to its lowest 1. -
Page 16: Water Terminology
Eventually the soap build-up in the water will be concentrated, resulting MPS: Monopersulfate is the non-chlorine oxidizer used with the in an unclean feeling on the bather’s skin, which is impossible to remedy. FRESHWATER silver ion purification system. Not a sanitizer (not When this occurs, it’s time to drain and refill the spa. -
Page 17: Operating Instructions
peratInG nStructIonS Home Screen Functions - Main Screen FRESHWATER FRESHWATER Salt System screen. MAIN CONTROL PANEL Salt System NOTE: This is also works for the (Optional IQ IQ Smart Monitoring System if The main control panel features a full color LCD touchscreen that system) installed. -
Page 18: Home Screen Top Bar
HOME SCREEN TOP BAR SETTINGS SCREEN Press on the Home screen to display the Settings Screen. In the setting screen you will be able to set the spa clock, see internal Home Screen information about your spa, change to °F or °C, change brightness of the screen, change the language and lock out the spa screen functions. - Page 19 SETTINGS SCREEN CONTINUE INFORMATION SCREEN Press button in Settings screen to display specific spa Information Settings screen. Info Spa Model: xxxxxxxxxx Control Box: xxxxxxxxx Bartop: xxxxxxx Graphics: xxxxxxxxx SPA LOCK When active, the Spa Lock feature disables all functions on the control CLOCK SETTING SCREEN panel.
-
Page 20: Home Screen
HOME SCREEN Heat Figure 2 Energy Saving Mode Heat w/Boost Heat Saver Main Screen Chill Auto w/Boost TEMPERATURE CONTROL HOUR MINUTE Figure 3 DURATION Press the screen if in sleep mode and then the actual temperature on Home screen to display Set Temperature screen below. -
Page 21: Jet Menu
JET MENU Press on Home screen to display Jet Menu screen. HOUR MINUTE Auto Clean Cycle Screen Home Screen In the Auto Clean Cycle Screen you will be able to set the time of day you would like the clean cycle to run every day. NOTE: The clean cycle time CAN NOT overlap with the Energy Savings Depending on you spa model you will see one of the following screens. -
Page 22: Lights Control
LIGHTS CONTROL Option 3: Press any of the white circles on the screen to bring up a zone screen. Press on the Home screen to access primary lights screen. This option allows you too customize each zone with a different color and brightness. -
Page 23: Freshwater Salt System (Only)
MUSIC SYSTEM (OPTIONAL) Option 4: Press logo light zone #5 white circle illustrated on previous page to enter Press on the Home screen to access the Music System screen. the Logo Light screen. The Music icon will only display on the Home Screen if your spa has the Press the to manually adjust the brightness of the Logo Music System installed. -
Page 24: Jet Menu
GRANDEE (MODEL GGN) JET PUMP 1-JET SYSTEM 1 JET PUMP 1-JET SYSTEM 2 Right SMARTJET lever in position Right SMARTJET lever in position 4 PRECISION jets with MOTO-MASSAGE DX 4 PRECISION jets with MOTO-MASSAGE DX 4 PRECISION jets 2 HYDROSTREAM jets 6 HYDROSTREAM jets 2 PRECISION jets NOTE:... -
Page 25: Envoy (Model Kkn)
ENVOY (MODEL KKN) JET PUMP 1-JET SYSTEM 2 JET PUMP 1-JET SYSTEM 1 Right SMARTJET lever in position Right SMARTJET lever in position 2 SOOTHINGSTREAM jets 4 PRECISION jets with MOTO-MASSAGE DX 2 dual port hydromassage rotary jets 2 HYDROSTREAM jets 1 JETSTREAM jet 2 PRECISION jets NOTE:... -
Page 26: Vanguard (Model Vvn)
VANGUARD (MODEL VVN) JET PUMP 1-JET SYSTEM 2 JET PUMP 1-JET SYSTEM 1 SMARTJET lever in position SMARTJET lever in position 2 SOOTHINGSTREAM jets 4 PRECISION jets with MOTO-MASSAGE DX 2 rotary hydromassage jets 2 HYDROSTREAM jets 2 JETSTREAM jets 2 PRECISION jets 10 PRECISION jets NOTE:... -
Page 27: Aria (Model Arn)
ARIA (MODEL ARN) JET PUMP 1-JET SYSTEM 1 JET PUMP 1-JET SYSTEM 2 SMARTJET lever in position SMARTJET lever in position 4 PRECISION jets with MOTO-MASSAGE DX 2 SOOTHINGSTREAM jets 2 HYDROSTREAM jets 2 rotary hydromassage jets 2 PRECISION jets 2 JETSTREAM jets 10 PRECISION jets NOTE:... -
Page 28: Sovereign (Model Iin)
SOVEREIGN (MODEL IIN) JET SYSTEM 1 SMARTJET lever in position 1 MOTO-MASSAGE DX jet 4 directional PRECISION jets 2 rotary PRECISION wrist jets 2 JETSTREAM jets 6 directional PRECISION jets 1 Water Feature NOTE: Indicates Levers used in system JET SYSTEM 2 SMARTJET lever in position 10 directional PRECISION jets... -
Page 29: Prodigy (Model Hn)
PRODIGY (MODEL HN) JET SYSTEM 1 SmartJet lever in position 1 MOTO-MASSAGE DX jet 4 directional PRECISION jets 2 HYDROSTREAM jets 2 directional PRECISION jets 10 directional PRECISION jets 2 HYDROSTREAM jets g. 1 Water Feature NOTE: Indicates Levers used in system JET SYSTEM 2 SmartJet lever in position... -
Page 30: Jetsetter Lx (Model Jtn)
JETSETTER LX (MODEL JTN) JET SYSTEM 1 SMARTJET lever in position 1 MOTO-MASSAGE DX jet 4 directional PRECISION jets 2 rotary PRECISION wrist jets 2 JETSTREAM jets 6 directional PRECISION jets NOTE: Indicates Levers used in system JET SYSTEM 2 SMARTJET lever in position 1 MOTO-MASSAGE DX jet... -
Page 31: Jetsetter (Model Jjn)
JETSETTER (MODEL JJN) JET SYSTEM 1 SMARTJET lever in position 1 MOTO-MASSAGE DX jet 4 directional PRECISION jets 2 rotary PRECISION wrist jets 1 JETSTREAM jet NOTE: Indicates Levers used in system JET SYSTEM 2 SMARTJET lever in position 10 directional PRECISION jets 2 SOOTHINGSTREAM jets 1 dual port hydromassage rotary jet Page 28... -
Page 32: Spa Care And Maintenance
PREVENTION OF FREEZING are and aIntenance Your spa has been designed and engineered for year-round use in Your HOT SPRING spa is manufactured from the highest quality, most any climate. In some areas, extremely cold temperatures below 10°F durable materials available. Even so, the spa care and maintenance (-12°C) combined with strong wind, may cause partial freezing of the program you develop will ultimately determine how long your spa, and jet pump, even though the water inside the spa remains at the selected... -
Page 33: Filter System
b) BELLAFONTANA water feature, if applicable (plug 2 openings and the filter compartment after each cleaning will help to extend their use the shop vac to pull water from the 3rd opening). service life. IMPORTANT: The frequency and duration of use, and the number of c) Filter compartment and MOTO-MASSAGE DX niche, if applicable occupants all contribute to determining the appropriate time between (removal of the faceplate may be necessary). -
Page 34: Care Of The Exterior
CARE OF THE SPA COVER To remove and replace the spa pillows: WARNING: The cover is a manual safety cover that meets or 1. Carefully pull and lift on one end of pillow to stretch pillow (longer) exceeds all prevailing requirements of ASTM 1346-91 for spa safety until the pillow is released from the plastic retainer. -
Page 35: Cover Lifter System
COVER LIFTER SYSTEM HOW TO CLOSE THE COVER 1. Standing along side the cover, place one hand on the upper corner of Clearance required behind cover when open: the cover and gently push forward in the direction of the spa. The cover will rotate forward to cover half of the spa. -
Page 36: Electrical Requirements
supply power to the spa. lectrIcal eQuIrementS • The subpanel requires a 50 amp, single phase, 230 volt, four wire IMPORTANT: Fill the spa with water before turning on the power. service (two line, one neutral, one ground). The grounding conductor must not be less than #10 AWG. -
Page 37: 115 Volt Gfci (Jetsetter Jjn)
SOVEREIGN (IIN), PRODIGY (HN) & JETSETTER LX (JTN) 230 volt permanently connected model WARNING! THE EXACT PHYSICAL LOCATION OF THE TERMINALS ON THE GFCI BREAKER WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX. FACTORY WIRED HEATER... -
Page 38: 115/230 Volt Convertible Model
waterproof cover, the outlet should be no closer than 6 feet (1.8 meters) Required Part: A Subpanel (230 volt Convertable) available from your HOT SPRING dealer. and no farther than 10 feet (3 m) from the spa (reference National Electrical Code). 1. - Page 39 JETSETTER (JJN) 230 volt converted model IMPORTANT! The exact physical location of the terminals on the GFCI breaker will vary between manufacturers. Connecting the hot wire to the neutral terminal will cause irreversible damage to the control box. 230V, 50 Amp, 2-POLE, CIRCUT BREAKER (NON GFCI)
-
Page 40: Service Information
If the spa is not heating, the red and green lights are blinking, but ervIce nformatIon the pump and light are operating, then the pressure switch may be open. Opening of the pressure switch is normally a result of one or a GENERAL INFORMATION combination of these problems: A clogged filter cartridge... -
Page 41: Acts Invalidating Warranty
• If the pump is shutting down due to excessive heat, make sure the Operation of the spa does not mean “use” of the spa! WATKINS equipment compartment has adequate ventilation. The air gap at the WELLNESS does not recommend using the spa if the water temp is bottom must not be blocked. - Page 42 GENERAL OPERATION TROUBLESHOOTING GUIDE Problem Probable causes Solutions Entire spa is inoperative • Power failure • Check power source • GFCI tripped • Reset GFCI; call for service if it will not reset • Heater high-limit thermostat tripped • Disconnect power for at least thirty seconds to reset heater high limit. If it will not reset, check for clogged filters.
-
Page 43: Door Panel Removal
DOOR PANEL REMOVAL Use the following instruction to remove the front door panel below the docking station. When replacing the door, reverse the order making sure the Logo is properly connected first. Locate spa locking clips Go to the 3 locking III) clip and use the following steps to... -
Page 44: Spa Specifications
SPA SPECIFICATIONS Spa Model Footprint Height Effective Heater Water Filled Dead Electrical Dimension Filter (Watts) Capacity Weight Weight* Weight* Requirements Area GRANDEE 100" x 91" 38" 325** 4,000 455 gallons 790 lbs 5,810 lbs. 125 lb/ft² 230 volt, 20A & 30A (Model GGN) 2.54 m square... - Page 46 This manual contains installation, operating, maintenance and service information for the following 2024 HOT SPRING spa models: 60 HZ MODELS EFFECTIVE DATE GRANDEE (MODEL GGN) 12/23 ENVOY (MODEL KKN) 12/23 VANGUARD (MODEL V VN) 12/23 ARIA (MODEL ARN) 12/23 SOVEREIGN (MODEL IIN) 12/23 PRODIGY (MODEL HN) 12/23...
