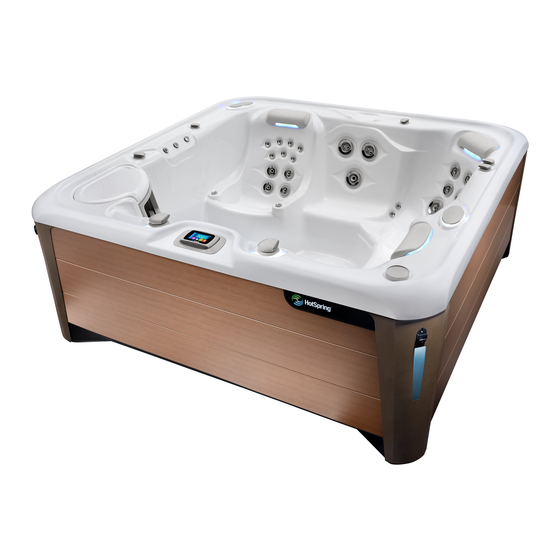

HIGHLIFE
Congratulations on your decision to enjoy the finest spa available...
Welcome to the growing family of HOT SPRING spa owners.
Pre-Delivery Instructions
Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure
the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for
delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and
electrical requirements.
Remember to carefully review the Owner's Manual that accompanies your spa, and to register the spa's warranty
within 10 days of delivery. These items, along with other valuable information, will be found in the Owner's Package
which has been placed in the equipment compartment of your spa, where you will also find its serial number.
Watkins Wellness™ reserves the right to change features, specifications and design without notification and without
incurring any obligation.
DATE PURCHASED: _________________________________________________________________
DATE INSTALLED: ___________________________________________________________________
DEALER: ___________________________________________________________________________
ADDRESS: __________________________________________________________________________
TELEPHONE: _______________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of
exterior surfaces (decks and gazebos). In addition, some communities have adopted residential barrier codes which
may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or spa) by
children under 5 years of age. Your HOT SPRING spa is equipped with a locking cover that meets the ASTM F1346-
91 Standard for Safety Covers and as a result, is usually exempt from most barrier requirements. As a general
practice, your local Building Department will inform you of any applicable barrier requirements at the time a permit is
obtained for the installation of an electrical circuit. Your Hot Spring dealer can provide information on which permits
may be required.
x
Hot Spring Spa Pre-Delivery Instructions
COLLECTION
®
Page x
Register your warranty
using the QR code below:
x
