DEMO MANUAL DC2603A-B
QUICK START PROCEDURE

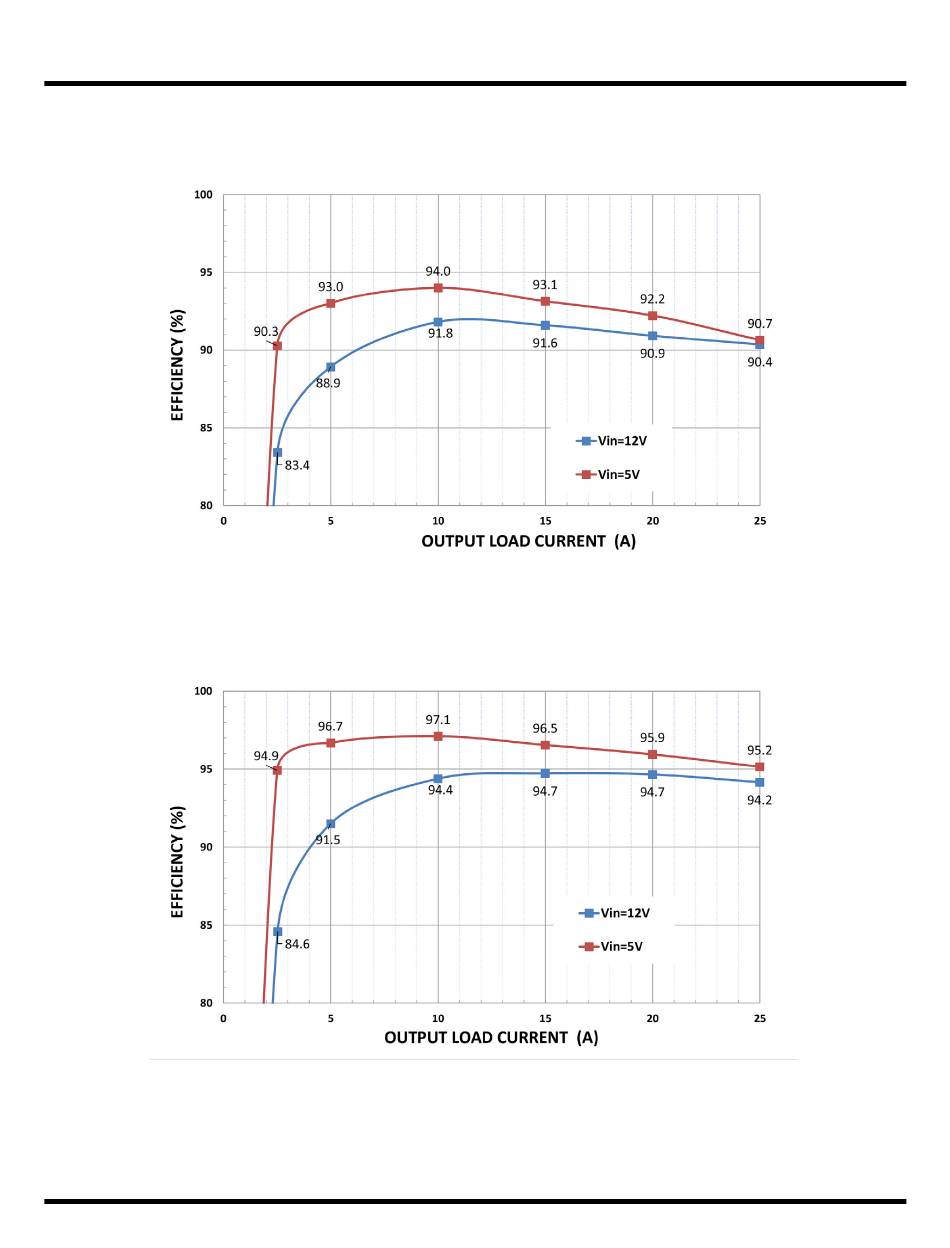

Figure 3. Measured Efficiency on Channel 1 (V
Figure 4. Measured Efficiency on Channel 2 (V
4
Efficiency vs Load Current at V
OUT1
Efficiency vs Load Current at V
OUT2
= 1.5V, f
= 600kHz
O
SW
= 1.5V, f
= 600kHz, Channel2 Disabled)
SW
= 3.3V, f
= 600kHz
O
SW
= 3.3V, f
= 600kHz, Channel1 Disabled)
SW
dc2603abf
