  • Page 1 DM 046 S-DIAS Digital Mixed Module Instruction Manual Date of creation: 04.04.2017 Version date: 26.07.2023 Article number: 20-008-046-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

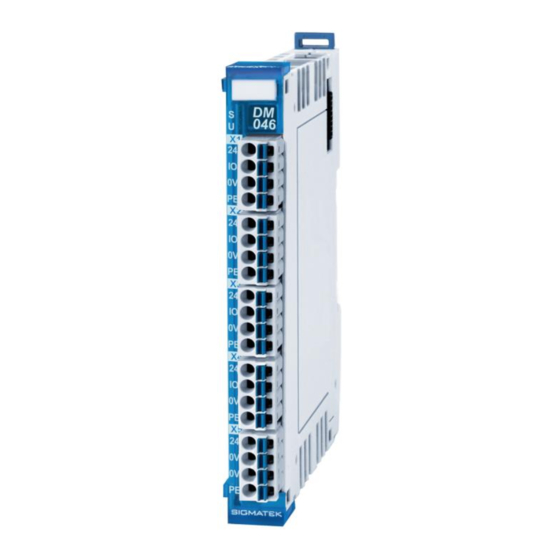

  • Page 3 DM 046 with 4 back-readable digital outputs The S-DIAS Digital Mixed Module DM 046 has four back-readable digital outputs (+24 V/1.7 A). These can also be used as digital inputs (24 V/3.7 mA/0.5 ms) The supply voltage is monitored for under voltage.
  • Page 4: Table Of Contents

    DM 046 S-DIAS DIGITAL MIXED MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............
  • Page 5 S-DIAS DIGITAL MIXED MODULE DM 046 Mechanical Dimensions ............17 Connector Layout ..............18 Status LEDs ................. 19 Applicable Connectors ............... 19 Label Field ................... 20 Wiring ..................21 Wiring Example ................21 Note ....................22 8.2.1 Connecting Inductive Loads ..........22 Assembly/Installation ............
  • Page 6 DM 046 S-DIAS DIGITAL MIXED MODULE 14.2 Repair ................... 29 15 Disposal ..................29 16 Hardware Class DM046 ............30 16.1 General ..................31 16.2 Digital Inputs and Outputs ............31 16.2.1 Communication Interfaces ............. 31 Page 4 26.07.2023...
  • Page 7: Introduction

    General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours.
  • Page 8: Basic Safety Directives

    DM 046 S-DIAS DIGITAL MIXED MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
  • Page 9 S-DIAS DIGITAL MIXED MODULE DM 046 INFORMATION Information  Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
  • Page 10: Disclaimer

    It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations.
  • Page 11: General Safety Directives

    S-DIAS DIGITAL MIXED MODULE DM 046 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product.
  • Page 12: Software/Training

    DM 046 S-DIAS DIGITAL MIXED MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
  • Page 13: Standards And Directives

    The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product DM 046 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •...
  • Page 14: Type Plate

    DM 046 S-DIAS DIGITAL MIXED MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023...
  • Page 15: Technical Data

    S-DIAS DIGITAL MIXED MODULE DM 046 Technical Data Digital Input Specifications (Back-reading the Digital Outputs) Number Input voltage typically +24 V maximum +30 V Signal level low: < +8 V high: > +14 V Switching threshold typically +11 V Input current 3.7 mA at +24 V...
  • Page 16: Electrical Requirements

    DM 046 S-DIAS DIGITAL MIXED MODULE Electrical Requirements External power supply +24 V 18-30 V DC External current consumption corresponds to the load on the digital outputs Power supply +24 V + outgoing 24 V supply maximum 6.8 A Voltage supply from S-DIAS bus...
  • Page 17 S-DIAS DIGITAL MIXED MODULE DM 046 26.07.2023 Page 15...
  • Page 18: Voltage Monitor

    DM 046 S-DIAS DIGITAL MIXED MODULE Voltage Monitor Power supply +24 V supply voltage > 18 V (DC OK-LED lights green) Miscellaneous Article number 20-008-046 Standard UL in preparation Approbations UL in preparation Environmental Conditions Storage temperature -20 ... +85 °C Ambient temperature 0 ...
  • Page 19: Mechanical Dimensions

    S-DIAS DIGITAL MIXED MODULE DM 046 Mechanical Dimensions 26.07.2023 Page 17...
  • Page 20: Connector Layout

    DM 046 S-DIAS DIGITAL MIXED MODULE Connector Layout INFORMATION The GND supply (X5: Pin 2 and Pin 3) is internally bridged. Only one GND pin (pin 2 or pin 3) is required to power the module. The bridged connections may be used for further looping of the GND supply.
  • Page 21: Status Leds

    S-DIAS DIGITAL MIXED MODULE DM 046 Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the...
  • Page 22: Label Field

    DM 046 S-DIAS DIGITAL MIXED MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 20 26.07.2023...
  • Page 23: Wiring

    S-DIAS DIGITAL MIXED MODULE DM 046 Wiring Wiring Example 26.07.2023 Page 21...
  • Page 24: Note

    DM 046 S-DIAS DIGITAL MIXED MODULE Note • Up to 4 outputs are powered by a common +24 V supply. • The cross section of the conductor for the +24 supply must be sufficient for the maximum total current. •...
  • Page 25: Assembly/Installation

    S-DIAS DIGITAL MIXED MODULE DM 046 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.
  • Page 26: Mounting

    DM 046 S-DIAS DIGITAL MIXED MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches.
  • Page 27 S-DIAS DIGITAL MIXED MODULE DM 046 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 25...
  • Page 28: Addressing

    DM 046 S-DIAS DIGITAL MIXED MODULE 10 Addressing Address Size Access Type Description Reset value (hex) (bytes) Memory Input register Bit 0 Input 1 Bit 1 Input 2 … 0000 0000 Bit 3 Input 4 Bit 4-7 Reserved Bit 8...
  • Page 29: Supported Cycle Times

    S-DIAS DIGITAL MIXED MODULE DM 046 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) x= supported 11.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported 26.07.2023 Page 27...
  • Page 30: Transport/Storage

    DM 046 S-DIAS DIGITAL MIXED MODULE 12 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport.
  • Page 31: Maintenance

    S-DIAS DIGITAL MIXED MODULE DM 046 14 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 14.1 Service This product was constructed for low-maintenance operation. 14.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
  • Page 32: Hardware Class Dm046

    16 Hardware Class DM046 Hardware Class DM046 For the S-DIAS DM046 digital module This hardware class is used to control the hardware module DM 046 with 4 digital backreadable outputs. More information on the hardware can be found in the module documentation.
  • Page 33: General

    S-DIAS DIGITAL MIXED MODULE DM 046 16.1 General Class state State This server shows the actual status of the hardware class. Device ID State The device ID of the hardware module is shown in this server. FPGA version State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0).
  • Page 34 DM 046 S-DIAS DIGITAL MIXED MODULE Documentation Changes Change date Affected Chapter Note page(s) 20.07.2017 4.1 Wiring Example changed 17.08.2017 1.6 Environmental Conditions Pollution Degree 3.2 Applicable Connectors Sleeve length added Added info regarding ultrasonically welded strands 18.10.2017 3.3 Label Field...
