- Page 1 DI 169 S-DIAS Digital Input Module Instruction Manual Date of creation: 23.06.2015 Version date: 26.07.2023 Article number: 20-006-169-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

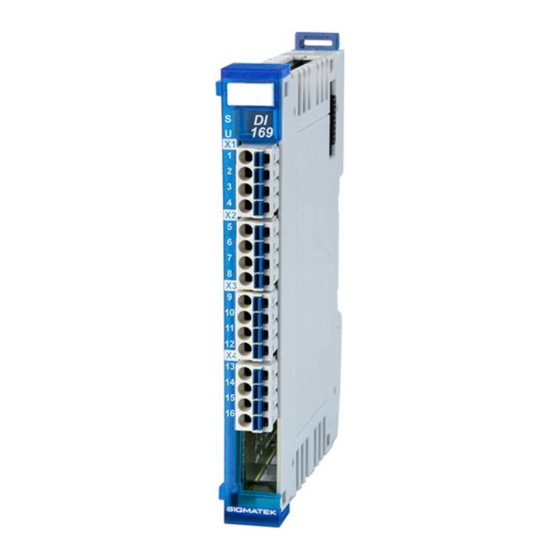

- Page 3 S-DIAS Digital Input Module DI 169 with 16 counter inputs The S-DIAS digital input module DI 169 is equipped with 16 counter inputs for Open-Collector outputs. The actual input signal can be read (use as digital input - earthing switching).
-
Page 4: Table Of Contents
DI 169 S-DIAS DIGITAL INPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIGITAL INPUT MODULE DI 169 Connector Layout ..............17 Status LEDs ................. 18 Applicable Connectors ............... 18 Label Field ................... 19 Wiring ..................20 Wiring Example ................20 Note ....................21 Assembly/Installation ............22 Check Contents of Delivery ............22 Mounting ..................
- Page 6 DI 169 S-DIAS DIGITAL INPUT MODULE 16 Hardware Class DI169 ............31 16.1 General ..................33 16.2 Digital Inputs 1-16 and Counter..........34 16.2.1 Communication Interfaces ..............35 Page 4 26.07.2023...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
DI 169 S-DIAS DIGITAL INPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIGITAL INPUT MODULE DI 169 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIGITAL INPUT MODULE DI 169 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
DI 169 S-DIAS DIGITAL INPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product DI 169 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
DI 169 S-DIAS DIGITAL INPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIGITAL INPUT MODULE DI 169 Technical Data Digital Input Specifications Number Input signal GND switching Pull-up voltage typically +24 V maximum +30 V Collector current typically 2.5 mA maximum 3.5 mA Saturation voltage maximum 1 V at 3 mA Residual current maximum 200 µA... - Page 16 DI 169 S-DIAS DIGITAL INPUT MODULE Page 14 26.07.2023...
-
Page 17: Miscellaneous
S-DIAS DIGITAL INPUT MODULE DI 169 Miscellaneous Article number 20-006-169 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 18: Mechanical Dimensions
DI 169 S-DIAS DIGITAL INPUT MODULE Mechanical Dimensions Page 16 26.07.2023... -
Page 19: Connector Layout
S-DIAS DIGITAL INPUT MODULE DI 169 Connector Layout 26.07.2023 Page 17... -
Page 20: Status Leds
DI 169 S-DIAS DIGITAL INPUT MODULE Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 21: Label Field
S-DIAS DIGITAL INPUT MODULE DI 169 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 19... -
Page 22: Wiring
DI 169 S-DIAS DIGITAL INPUT MODULE Wiring Wiring Example Page 20 26.07.2023... -
Page 23: Note
S-DIAS DIGITAL INPUT MODULE DI 169 Note The input filters, which suppress noise signals, allow operation in harsh environmental conditions. A careful wiring method is also recommended to ensure error-free function. The following guidelines should be observed: • Avoid parallel connections between input lines and load-bearing circuits. -
Page 24: Assembly/Installation
DI 169 S-DIAS DIGITAL INPUT MODULE Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 25: Mounting
S-DIAS DIGITAL INPUT MODULE DI 169 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 26 DI 169 S-DIAS DIGITAL INPUT MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 24 26.07.2023...
-
Page 27: Addressing
S-DIAS DIGITAL INPUT MODULE DI 169 10 Addressing Address Size Access Description Reset value (hex) (bytes) Type Read PDO 0000 Digital input status register 0000 0002 Latched input signal register 0000 Latched input signal (reading deletes latched edge) 0004 Counter 1 status register... - Page 28 DI 169 S-DIAS DIGITAL INPUT MODULE 0014 Latched input signal control register 1 g_rising Enable register rising edge _edge_intr Bit 0: Input 0 ‘1‘ is latched Bit 1: Input 1- 0016 Latched input signal control register 2 g_falling Enable register falling edge...
- Page 29 S-DIAS DIGITAL INPUT MODULE DI 169 Counter mode: g_mode_set Bit 1…0: Channel 1 mode (input 1 + 2) Bit 3…2: Channel 2 mode (input 3 + 4) Bit 5…4: Channel 3 mode (input 5 + 6) Bit 7…6: Channel 4 mode (input 7 + 8) Bit 9…8: Channel 5 mode...
-
Page 30: Supported Cycle Times
DI 169 S-DIAS DIGITAL INPUT MODULE 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) x= supported 11.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported Page 28 26.07.2023... -
Page 31: Transport/Storage
S-DIAS DIGITAL INPUT MODULE DI 169 12 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 32: Maintenance
DI 169 S-DIAS DIGITAL INPUT MODULE 14 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 14.1 Service This product was constructed for low-maintenance operation. 14.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. -
Page 33: Hardware Class Di169
S-DIAS DIGITAL INPUT MODULE DI 169 16 Hardware Class DI169 Hardware Class DI169 for the S-DIAS DI169 digital input module 26.07.2023 Page 31... - Page 34 DI 169 S-DIAS DIGITAL INPUT MODULE This hardware class is used to control the DI 169 valve output module with 16 counter input. The input signals can be read (used as digital input). More information on the hardware can be found in the module documentation.
-
Page 35: General
S-DIAS DIGITAL INPUT MODULE DI 169 16.1 General Class State State This server shows the actual status of the hardware class. Device ID State The device ID of the hardware module is shown in this server. FPGA Version State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). -
Page 36: Digital Inputs 1-16 And Counter
DI 169 S-DIAS DIGITAL INPUT MODULE 16.2 Digital Inputs 1-16 and Counter Input[1-16] Input Digital input 1-16, status queried over read(). Input[1-16] Input Latched digital input 1-16 Latched input was not set since the last reading input was set since the last reading When the read() method of the server is called, the server is then reset in the next cycle. -
Page 37: Communication Interfaces
S-DIAS DIGITAL INPUT MODULE DI 169 16.2.1 Communication Interfaces ALARM Downlink With this downlink the corresponding alarm class can be placed via the hardware editor. 26.07.2023 Page 35... - Page 38 DI 169 S-DIAS DIGITAL INPUT MODULE Documentation Changes Change Date Affected Chapter Note page(s) 28.04.2016 5 Mounting Graphics distances 09.12.2016 1.4 Miscellaneous UL added 17.08.2017 1.5 Environmental Conditions Pollution Degree 3.2 Applicable Connectors Sleeve length added Added info regarding ultrasonically welded strands 18.10.2017...
