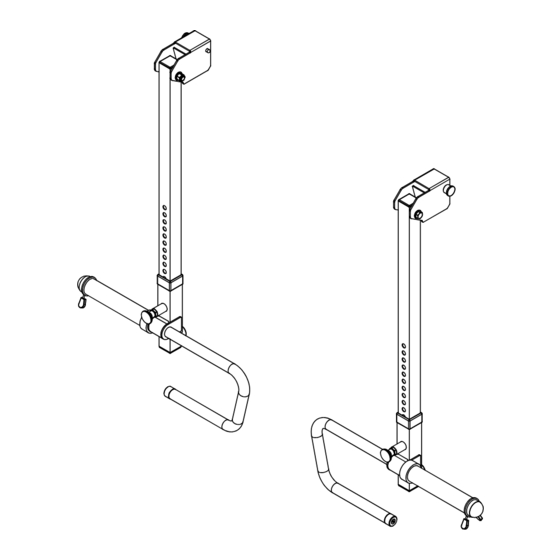

- Page 1 ARC TRAINER FOR SUPER GYM 1 OWNER’S MANUAL Model No. ARC TRAINER FOR SG1 Fitness Authority Industrial Co., LTD. No. 15, Xiangxue Rd., Dali Dist., MK20764 Taichung City 41275, Taiwan. ATTAIN FITNESS...
- Page 2 7. Make certain all cables are seated within the pulleys before every use. 8. Exercise with care to avoid injury. 9. If you are unsure about the proper use of the ATTAIN FITNESS ARC TRAINER FOR SG1, call your local ATTAIN FITNESS dealer or our customer service department.
- Page 3 EXPLODED 403L 404R...
-
Page 4: Parts Chart
PARTS CHART NO. DESCRIPTION QTY. ADJ. TUBE ADJUSTMENT FRAME 403L LEFT HANDLE BAR 404R RIGHT HANDLE BAR FOAM PAD HOLLOW PLUG 403L 45mm SQ. PLUG ROUND PLUG OLYMPIC ADAPTER SLEEVE 2" OLYMPIC SPRING RUBBER CUSHION STOPPER STOPPER 404R BUSHING PLASTIC COVER PIN BOLT SPRING 1/2"... - Page 5 STEP 1 1. Attach four 45mm Sq. Plugs (407) to two Adj. Tubes (401). 2. Attach two Adj. Tubes (401) to Left & Right Pulley Height Adjuster (9L & 10R) using two Pins (415).
- Page 6 STEP 2 1. Attach Left & Right Handle Bar (403L & 404R) to the Adj. Tubes (401) using two 3/8" X 1" Hex Socken Dome Bolts (421), two Stoppers (412) and two 3/8” Nylon Nuts (427). 403L 404R...
- Page 7 STEP 3 1. Attach two Rubber Cushions (411), two Olympic Adapter Sleeves (409) and two 2” Olympic Springs (410) to Left & Right Handle Bar (403L & 404R) using two 5/16” Inner Hex Screws (423). 403L 404R...
- Page 8 Guide Rods (6). 5. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the ATTAIN FITNESS ARC TRAINER FOR SUPER GYM 1! If you have questions or comments, please contact our customer service department at +1 877-551-7484 and info@attainfitnessusa.com.
