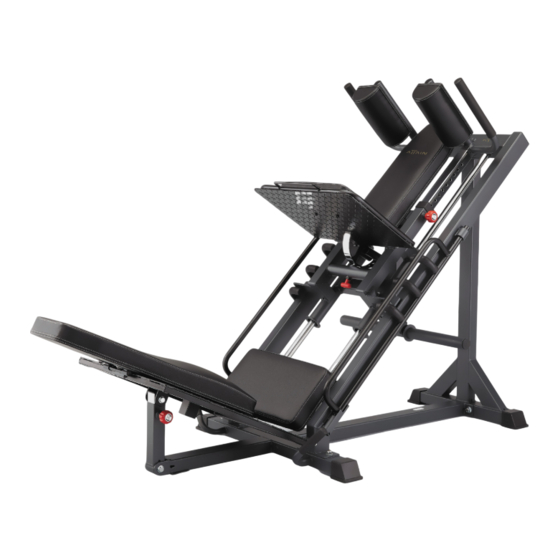

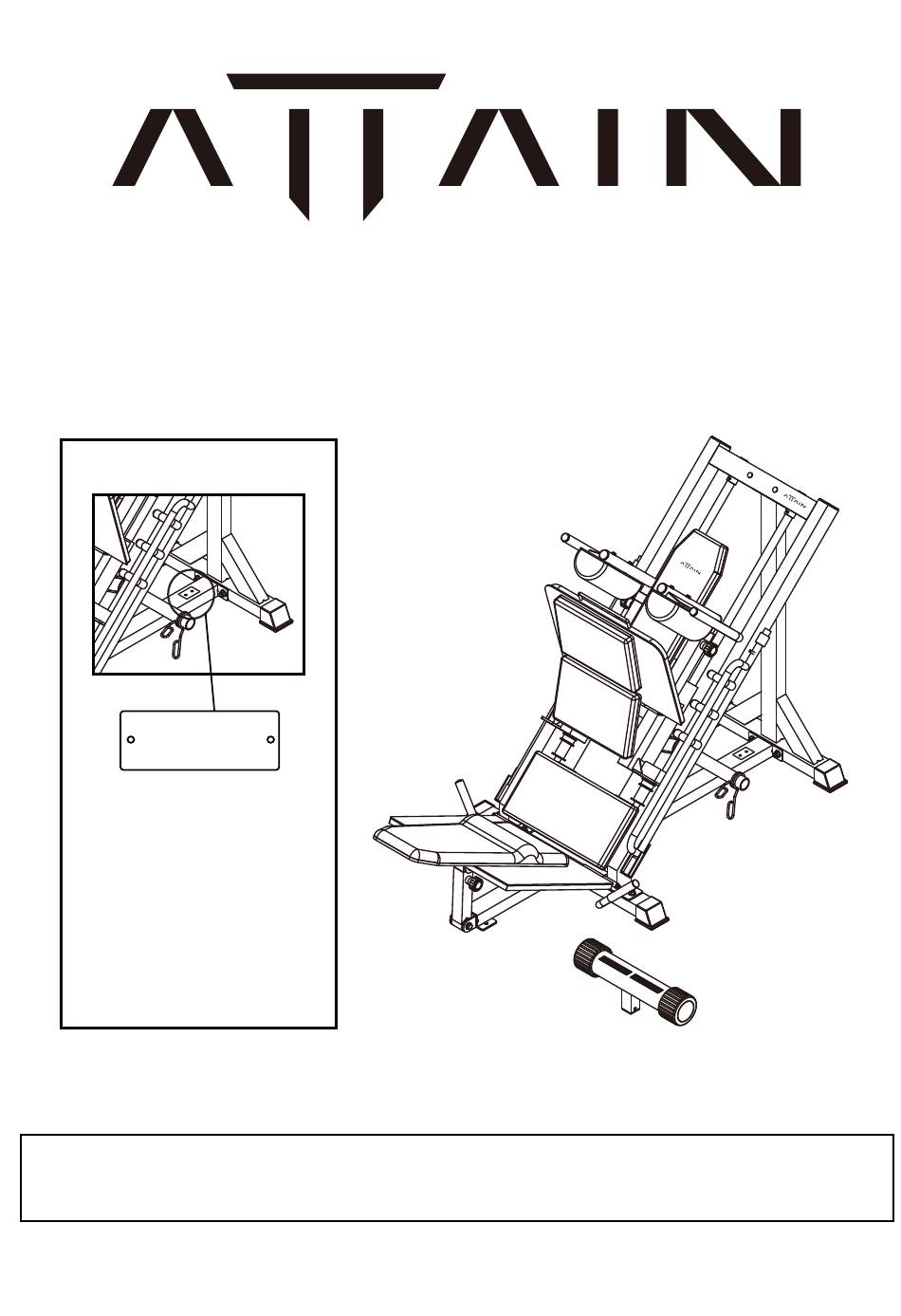

H880 LINEAR BEARING SQUAT RACK
Serial Number Location
ATTAIN
S E R I A L
1 2 3 4 5 6 7 8
Record your Serial number
and purchase date here:
S/N __________________
DATE:________________
DEALER:______________
______________________
Model No. H880
MA409
ATTAIN FITNESS
OWNER'S MANUAL
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
Taichung City 41275, Taiwan.
Advertisement
Related Manuals for ATTAIN FITNESS H880
Summary of Contents for ATTAIN FITNESS H880
- Page 1 H880 LINEAR BEARING SQUAT RACK OWNER’S MANUAL Serial Number Location ATTAIN S E R I A L 1 2 3 4 5 6 7 8 Record your Serial number and purchase date here: S/N __________________ DATE:________________ DEALER:______________ ______________________ Model No. H880 Fitness Authority Industrial Co., LTD.
- Page 2 7. Make certain all cables are seated within the pulleys before every use. 8. Exercise with care to avoid injury. 9. If you are unsure about the proper use of the ATTAIN FITNESS H880, call your local ATTAIN FITNESS dealer or our customer service department.
- Page 3 Gym Placement Planner 38.7" HEIGHT 82.3" 50" Important Notes and Tips: Recommended Tools 1. Do not tighten bolts until instructed. for Assembly 2. Two people are required for the safe assembly of this product. 3. Use window cleaner or water to assist with sliding roller pads on to tubes.
- Page 4 H880 PARTS LIST 1 NOTE: If you are missing a listed part, it likely has been pre-installed in our factory for quality control purposes. Please con�nue with assembly. *Parts images are not to scale. (2) FRONT STABILIZER (3) REAR UPRIGHT...
- Page 5 H880 PARTS LIST 2 NOTE: If you are missing a listed part, it likely has been pre-installed in our factory for quality control purposes. Please con�nue with assembly. *Parts images are not to scale. (25) SPRING CLIP (26) SEAT PAD...
-
Page 6: Base Frame Assembly
STEP 1 Base Frame Assembly To ease the assembly process, do NOT tighten bolts until instructed. Assembly requires two people. 1. Attach the Base Connector (6) to the Bolts welded on the Front Stabilizer (2) using two 1/2" Washers (55) and two 1/2" Nylon Nuts (59). 2. - Page 7 STEP 2 Shoulder Pads, Safety Stoppers, and Weight Holder Assembly 1. Attach the Weight Holder Support (14) to the Weight Holder (12) using one 1/2" X 3-1/4" Hex Bolt (46), two 1/2" Washers (55), and one 1/2" Nylon Nut (59) on the top hole of the Weight Holder (12) and one 1/2"...
- Page 8 STEP 3 Leg Press Plate and Foot Platform Assembly 1. Attach the bottom side of the Foot Platform (10) to the Main Frame (1) by aligning the holes and then inserting the solid Foot Platform Axle (20). Attach a 3/8" Nut (60) to each side of the Foot Platform Axle (20).
- Page 9 STEP 4 Back Pad Assembly 1. Adjust the Leg Press Plate (9) to the flat position and then attach the Back Pad (29) to the Linear Bearing Assembly (4) using two 3/8" X 2-3/4" Hex Bolts (49) and two 3/8" Washers (56).
- Page 10 STEP 5 Calf Raise Assembly 1. Attach one 50mm End Plug (33) and two 75mm Round End Caps (69) to the Calf Block (13A). To perform calf raises, insert the Calf Block into the central hole in the Foot Platform (10). 2.
-
Page 11: Parts List
PARTS LIST NO. DESCRIPTION QTY. MAIN FRAME FRONT STABILIZER REAR UPRIGHT LINEAR BEARING ASSEMBLY SOLID GUIDE ROD BASE CONNECTOR RIGHT SHOULDER ASSEMBLY LEFT SHOULDER ASSEMBLY LEG PRESS PLATE FOOT PLATFORM HIP PAD PLATE WEIGHT HOLDER CALF BLOCK WEIGHT HOLDER SUPPORT RIGHT SAFETY STOPPER LEFT SAFETY STOPPER FOOT PLATFORM ADJUSTER... - Page 12 PARTS LIST NO. DESCRIPTION QTY. 50 X 55mm PLASTIC SLEEVE 1/2" X 18mm BUSHING LINEAR BEARING RUBBER BUMPER PLASTIC STUD SPRING KNOB POP PIN 1/2" X 3-1/2" HEX BOLT 1/2" X 3-1/4" HEX BOLT 1/2" X 3" HEX BOLT 5/16" X 2-1/4" SCREW 3/8"...
- Page 13 OVERVIEW...
- Page 14 Linear Bearing Assembly(4). Enjoy many years of a Fit Lifestyle. Thank you for purchasing the ATTAIN FITNESS H880 LINEAR BEARING SQUAT RACK! If you have any questions or comments, please contact our customer service department at +1 877-551-7484 and info@attainfitnessusa.com.
