Model No. H840
MK2380
ATTAIN FITNESS

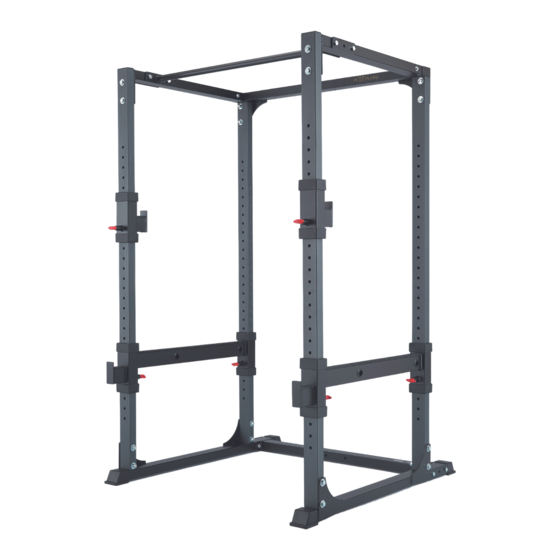

H840 POWER RACK
OWNER'S MANUAL
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
Taichung City 41275, Taiwan.
Advertisement
Related Manuals for ATTAIN FITNESS H840
Summary of Contents for ATTAIN FITNESS H840
- Page 1 H840 POWER RACK OWNER’S MANUAL Serial Number Location ATTAIN S E R I A L 1 2 3 4 5 6 7 8 Record your Serial number and purchase date here: S/N __________________ DATE:________________ DEALER:______________ ______________________ Model No. H840 Fitness Authority Industrial Co., LTD.
- Page 2 30cm on left and right side and at least 15cm in front and rear side. The recommended free area in at least 60cm on every side. 16. If you are unsure about the proper use of the ATTAIN FITNESS H840 POWER RACK call your local ATTAIN FITNESS dealer or our customer service department.
- Page 3 Gym Placement Planner 23.62" 23.62" 51" 48" 23.62" 23.62" HEIGHT 80" Important Notes and Tips: Recommended Tools 1. Do not tighten bolts until instructed. for Assembly 2. Two people are required for the safe assembly of this product. Ratchet 3. Use window cleaner or water to assist with sliding roller pads on to tubes.
- Page 4 H840 Assembly PARTS LIST 1 NOTE: If you are missing a listed part, it likely has been pre-installed in our factory for quality control purposes. Please con�nue with assembly. *Parts images are not to scale. (1) REAR STABILIZER (2) RIGHT BASE FRAME...
- Page 5 STEP 1 ASSEMBLY INSTRUCTIONS Do NOT tighten any bolts until instructed. 1. Attach Rear Stabilizer (1) to Right Base Frame (3) and Left Base Frame (2) using four 1/2" X 4" Hex Bolts (17) and four 1/2" Nylon Nuts (23). Backing plates that are welded to the Base Frames should be on the outside of machine.
- Page 6 STEP 2 ASSEMBLY INSTRUCTIONS 1. Attach Top Frames (7) to Rear Top Frame (6), using three 3/8" X 3/4" Hex Bolts (19) and three 3/8" Washers (22). Attach Top Frames (7) to Front Upright (4) using two 1/2" X 2 3/4" Hex Bolts (18), four 1/2"...
-
Page 7: Exploded View
EXPLODED VIEW... -
Page 8: Parts Chart
PARTS CHART NO. DESCRIPTION QTY. TUBE REAR STABILIZER RIGHT BASE FRAME LEFT BASE FRAME FRONT UPRIGHT 78.2"(1986mm) REAR UPRIGHT 76.5"(1940mm) ----- -- welded tube on top end REAR TOP FRAME TOP FRAME CHIN UP BAR SAFETY ARM BAR CATCH BACKING PLATE 45mm X 75mm CAP 45mm X 75mm PLUG 45mm X 75mm SLIDER... - Page 9 Make certain all bolts are tightened securely. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the ATTAIN FITNESS H840 POWER RACK! If you have any questions or comments, please contact our customer service department at +1 877-551-7484 and info@attainfitnessusa.com.
