Serial Number Location
Located under the Top Tier
ATTAIN
S E R I A L
1 2 3 4 5 6 7 8
Record your Serial number
and purchase date here:
S/N __________________
PURCH.DATE:_________
DEALER:______________
______________________
______________________
Model No. H808
MB1326
ATTAIN FITNESS
H808 Dumbbell Rack
OWNER'S MANUAL
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
Taichung City 41275, Taiwan.
Advertisement
Related Manuals for ATTAIN FITNESS H808
Summary of Contents for ATTAIN FITNESS H808

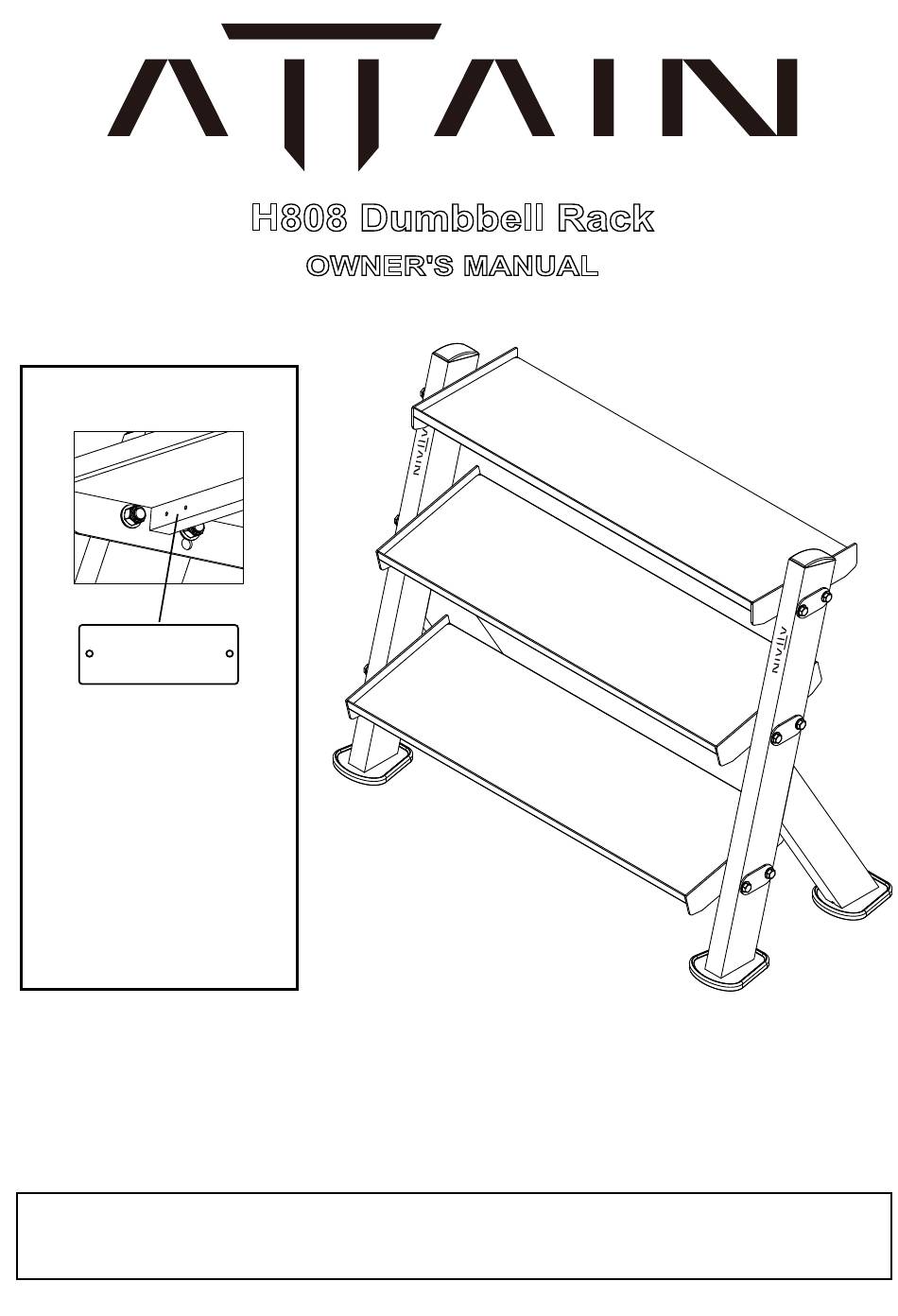

- Page 1 H808 Dumbbell Rack OWNER'S MANUAL Serial Number Location Located under the Top Tier ATTAIN S E R I A L 1 2 3 4 5 6 7 8 Record your Serial number and purchase date here: S/N __________________ PURCH.DATE:_________ DEALER:______________...
- Page 2 Failure to do so may result in serious injury. 4. Keep children away from the ATTAIN FITNESS H808 at all times. 5. If you are unsure about the proper use of the ATTAIN FITNESS H808, please call your local ATTAIN FITNESS dealer or our customer service department.
- Page 3 Gym Placement Planner 22.6" HEIGHT 38.8" 49.4" Important Notes and Tips: Recommended Tools 1. Do not tighten bolts until instructed. for Assembly 2. Two people are required for the safe assembly of this product. 3. Use window cleaner or water to assist with sliding roller pads on to tubes.
- Page 4 Assemble Parts List NOTE: IF A PART IS MISSING, IT LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES. PLEASE PROCEED WITH ASSEMBLY. *Parts images are not to scale. Additional Hole for Angle Adjustment (2T) TOP DUMBBELL TIER (2L) LOW DUMBBELL TIER X 2pcs (3) STEEL BACKING PLATE X 6pcs (1) MAIN FRAME X 2pcs...
- Page 5 Adjustable Top Tier Overview PLEASE CHOOSE BETWEEN OPTION A OR B. This Dumbbell Rack has been designed with an adjustable top tier #2T, it can be assembled in the flat position (OPTION A) or at an angle (OPTION B). A. If you wish to use the Top Tier for items such as Kettlebells, Lat Bars or other Accessories, it is recommended that you assemble it in the flat position.
- Page 6 ASSEMBLY (NOTE: Two Racks can be joined to make a longer rack. If you have purchased a second rack wish to connect them, please refer to the next page for additional information. Please recycle unused components. 1. Using a Rubber Mallet or similar tool, install the #6 CAPS into the top of BOTH of the #1 MAIN FRAMES as shown in Fig.
- Page 7 Connecting 2 Racks into 1 When joining 2 rack together, remove the parts listed at the bottom from the assembly area The #1 MAIN FRAME used in the Center position will not require the #3 Backing Plates. Discarded Parts, please recycle Remaining Components to save or recycle (7) 1/2"...
- Page 8 EXPLODED...
- Page 9 1. Be certain all bolts are tightened securely. Check and tighten all bolts before every use. 2. If unsure about the proper use of the ATTAIN FITNESS H808 call your local dealer. 3. Keep children away from the ATTAIN FITNESS H808.
