Serial Number Location
ATTAIN
S E R I A L
1 2 3 4 5 6 7 8
Record your Serial number
and purchase date here:
S/N __________________
PURCH.DATE:_________
DEALER:______________
______________________
______________________
Model No. H870
MB1308B
ATTAIN FITNESS

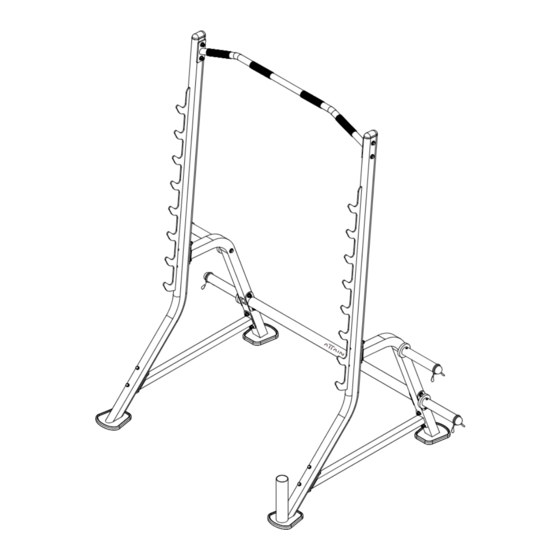

H870 SQUAT RACK
OWNER'S MANUAL
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
Taichung City 41275, Taiwan.
Advertisement
Related Manuals for ATTAIN FITNESS H870
Summary of Contents for ATTAIN FITNESS H870
- Page 1 H870 SQUAT RACK OWNER'S MANUAL Serial Number Location ATTAIN S E R I A L 1 2 3 4 5 6 7 8 Record your Serial number and purchase date here: S/N __________________ PURCH.DATE:_________ DEALER:______________ ______________________ ______________________ Model No. H870 Fitness Authority Industrial Co., LTD.
- Page 2 5. Keep your hands away from moving parts other than the designated handles. 6. Exercise with care to avoid injury. 7. If you are unsure about the proper use of the ATTAIN FITNESS H870, call your local ATTAIN FITNESS dealer or our customer service department.
- Page 3 Gym Placement Planner WALL 47.3" HEIGHT 71.5" 82.1" Important Notes and Tips: Recommended Tools for Assembly 1. Do not tighten any bolts until instructed. 2. Two people are required for the safe assembly of the gym. Ratchet 3. Use silicone lubricant on guide rods prior to weight 9/16"...
- Page 4 H870 PARTS LIST 1 NOTE: If you are missing a listed part, it likely has been pre-installed in our factory for quality control purposes. Please con�nue with assembly. *Parts images are not to scale. (3) CHIN UP (2R) REAR UPRIGHT...
- Page 5 STEP 1 Assemble Upright Frame TO EASE THE ASSEMBLY PROCESS. DO NOT TIGHTEN ANY BOLTS UNTIL INSTRUCTED. 1. Loosely assemble Rear Connector (4) to the Right & Left Rear Upright Frame (2R & 2L) with two Lower Weight Holders (6), using four 3/8"...
- Page 6 STEP 2 Assemble Upright Frame 1. Using a rubber mallet, install the two 40 X 80mm Oval Plugs (10) to the Right and Left Upright Frame (1R & 1L). 2. Loosely assemble two Frame Connectors (5) to the Right and Left Upright Frame (1R &...
- Page 7 STEP 3 Assemble Top Frame 1. Loosely assemble Chin Up Bar (3) to the Right and Left Upright Frame (1R & 1L) using four 3/8" X 2-1/2" Hex Bolts (16), eight 3/8" Washers (19), and four 3/8" Nylon Nuts (21).
- Page 8 STEP 4 Assemble Olympic Adapter Sleeve 1. Attach and tighten Upper Weight Holder (7) to the Right & Left Rear Upright Frame (2R & 2L) using one 3/8" X 1" Hex Threaded Bolt (17), one 3/8" Washer (19), and one 1" Plug. 2.
- Page 9 SAFETY SPOTTER OPTION 1. If you have purchased the optional H871 Safety Spotters, please tilt the top back slightly to attach and remove the Rght and Left Safety Spotters (8R & 8L) to the gun rack.
-
Page 10: Detailed Parts List
DETAILED PARTS LIST NO. DESCRIPTION QTY. UPRIGHT FRAME - RIGHT UPRIGHT FRAME - LEFT REAR UPRIGHT FRAME - RIGHT REAR UPRIGHT FRAME - LEFT CHIN UP BAR REAR CONNECTOR FRAME CONNECTOR LOWER WEIGHT HOLDER UPPER WEIGHT HOLDER OLYMPIC ADAPTER SLEEVE 40 X 80mm OVAL PLUG 2"... - Page 11 OVERVIEW...
- Page 12 Make certain all bolts are tightened securely. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the ATTAIN FITNESS H870 SQUAT RACK! If you have any questions or comments, please contact our customer service department at +1 877-551-7484 and info@attainfitnessusa.com.
