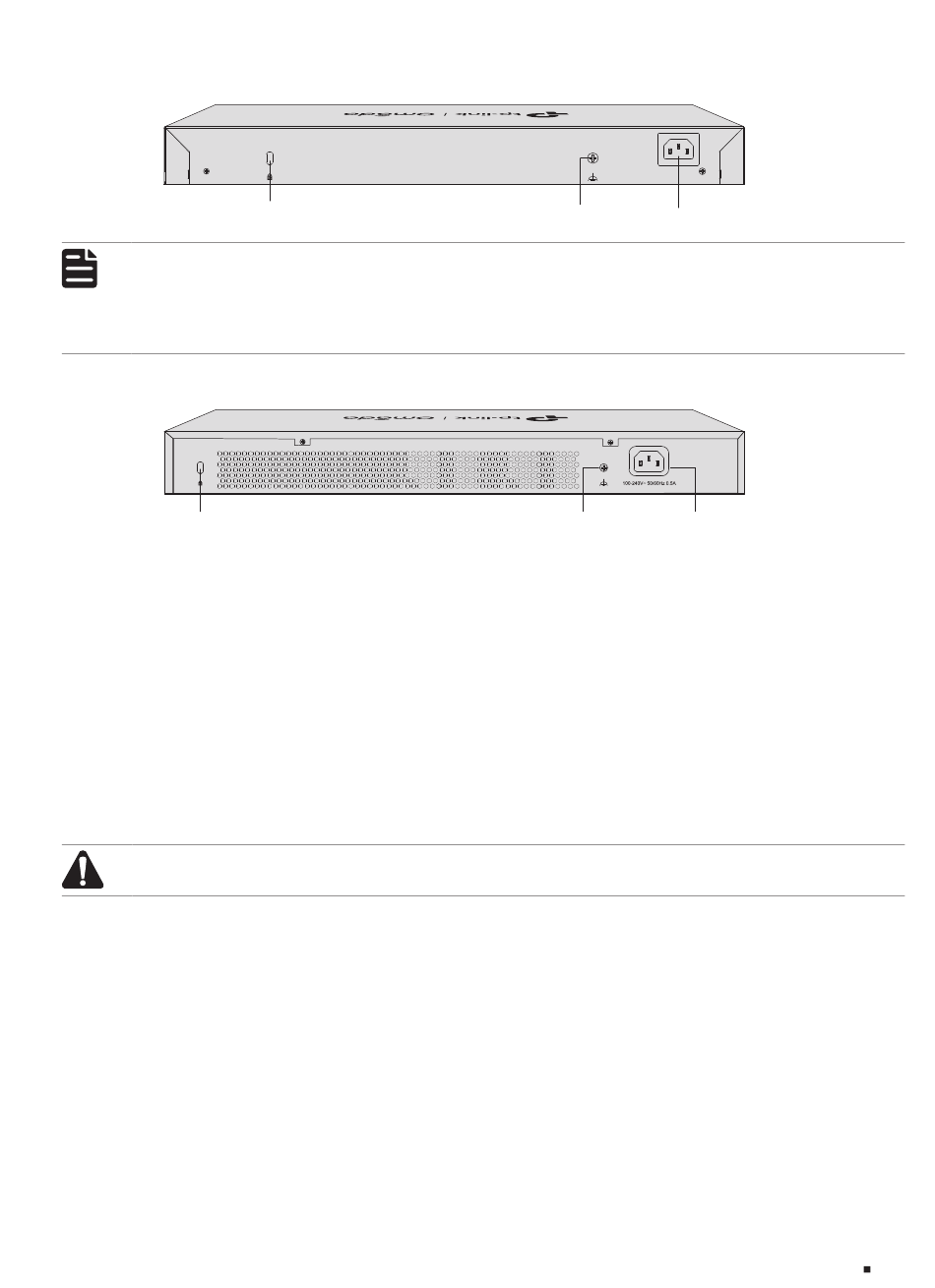

The rear panel of SG3428XMPP/SG3452XMPP is shown as the following figure. The figure is for
demonstration purposes only. Your switch may differ in appearance from the depicted.
Kensington Security Slot
Note:
In countries/regions using low voltage (e.g. Canada, Colombia, Costa Rica, Dominican Republic,
Ecuador, El Salvador, Guatemala, Honduras, Japan, Mexico, Panama, Puerto Rico, Taiwan (China), and
United States), SG3452XMPP needs up to 12A AC input when the input voltage is 100-120V (included).
In other countries/regions, the AC input requirement is 120 (not included)- 240V~ 50/60Hz 10A.
The rear panel of other models is shown as the following figure. The figure is for demonstration
purposes only. Your switch may differ in appearance from the depicted.
Kensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
measures, go to https://www.tp-link.com/support, search the model number of your switch and go to
the product Support web page, refer to the Lightning Protection Guide from the Related Documents:
https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~
50/60 Hz).
Caution:
Please use the provided power cord.
Omada L2+ Managed Switch
Grounding Terminal
Power Socket
Grounding Terminal Power Socket
