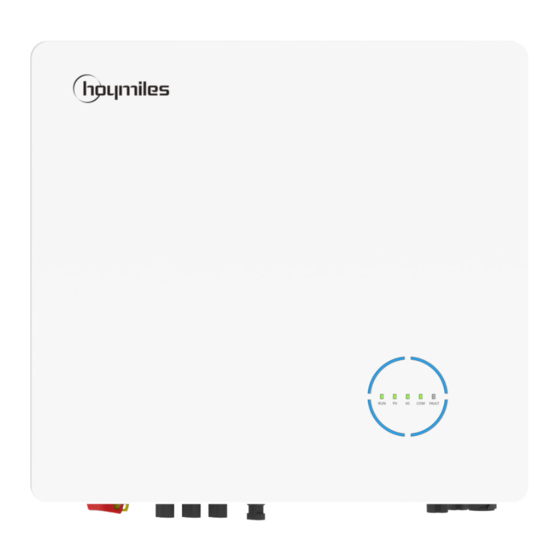

- Page 1 Open Energy for All Three-phase Hybrid Inverter Quick Installation Guide HYT-5.0HV-AUG1 HYT-6.0HV-AUG1 HYT-8.0HV-AUG1 HYT-10.0HV-AUG1 HYT-12.0HV-AUG1 Region: Australia REV1.1 hoymiles.com...
-
Page 2: Packing List
Hybrid Inverter Quick Installation Guide 1 General Declaration • The information in this quick installation guide is subject to change due to product updates or other reasons. • This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise specified. -
Page 3: Product Overview
Para1 COM1 8-NC 8-485B 8-485A_2 7-NC 7-485A 7-485B_2 6-NC 6-NC 6-485A_1 5-485B 5-CANL 5-485B_1 4-485A 4-CANH 4-CANL 3-NC 3-NC 3-CANH 2-NC 2-NC 2-DI IN- COM2 1-NC 1-NC 1-DI IN+ Meter Para2 © 2024 Hoymiles Power Electronics Inc. All rights reserved. -
Page 4: Wiring Diagram
Hybrid Inverter Quick Installation Guide 4 Wiring Diagram... - Page 5 Hybrid Inverter Quick Installation Guide © 2024 Hoymiles Power Electronics Inc. All rights reserved.
- Page 6 Hybrid Inverter Quick Installation Guide 5 Wall Mounting Steps ≥300 mm ≥200 mm ≥200 mm ≥300 mm ≥15° ≥500 mm DC SWITCH 75 mm 75 mm 65 mm DC SWITCH DC SWITCH © 2022 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 7: Electrical Connection
Step 2 Grid Cable (Same wirings for GEN if needed) GRID PARA1 ON OFF 7-8 mm PARA2 Click Step 3 EPS Cable GRID PARA1 ON OFF 7-8 mm 20-25 mm 13 mm≤Φ≤18 mm 4 mm²≤S≤6 mm² PARA2 © 2024 Hoymiles Power Electronics Inc. All rights reserved. - Page 8 Hybrid Inverter Quick Installation Guide 1.2 N·m DC SWITCH 0.7-0.9 N·m GRID Φ D2/6 D4/8 PARA1 ON OFF D1/5 D3/7 7-8 mm Φ: 4-5 mm 2.5 mm²≤S≤4 mm² DC SWITCH METER PARA2 Click...
-
Page 9: Step 5 Battery Cable
S=6 mm² METER PARA2 BAT+ BAT- Click Step 6 Signal Communication (Connection of communication box is mandatory) RJ45 Terminal Connection (METER, BMS) GRID DC SWITCH 40 mm 0.6-0.8 N·m 6-7 N·m © 2024 Hoymiles Power Electronics Inc. All rights reserved. -
Page 10: Ethernet Connection
Hybrid Inverter Quick Installation Guide Step 7 Data Transfer Stick (DTS) Connection Wi-Fi and 4G Connection 0.6-0.8 N·m Ethernet Connection 0.6-0.8 N·m 8-NC 7-NC 6-RX- 5-NC PARA1 4-NC 3-RX+ 2-TX- 1-TX+ 0.8-1.5 N·m 0.5-0.8 N·m... - Page 11 Hybrid Inverter Quick Installation Guide 7 DTS Online Setting 1. Search “Hoymiles” in the App Store (iOS) or the Play Store (Android), or scan the QR code to download the Hoymiles Installer App. 2. Open the App and log in with your installer account and password. For new Hoymiles installers, please apply for an installer account from your distributor in advance.
- Page 12 Hybrid Inverter Quick Installation Guide (b) Select the DTS’s wireless network and tap on “Connect”. (The network name of the DTS consists of DTS and product serial number, and the default password is ESS12345.) 4. Network configuration. (a) Upon successful connection, tap on “Network Config” again and access the Network Configuration page.
- Page 13 The serial number (SN) can be entered manually or identified through scanning the QR code. If the GEN port is connected to the PV inverter or generator, the PV side meter also needs to be configured. © 2024 Hoymiles Power Electronics Inc. All rights reserved.
- Page 14 Hybrid Inverter Quick Installation Guide 2. Tap “Grid Profile Config → ESS Advanced Config → Meter Model” to choose “Three-phase Meter”, and tap “Save”. 3. Tap “Inverter Management → Battery Setting” to set battery type, BMS protocol, and battery capacity, and tap “Save”.
- Page 15 GEN port is “Generator” or “Inverter”, and tap “Save”. (The default option is “None”.) 5. Make sure that all cables including DC cables, AC cables, and communication cables are properly connected, and all DC and AC switches are turned on, and then tap “Self-check”. © 2024 Hoymiles Power Electronics Inc. All rights reserved.
- Page 16 User Manual in the QR code or at www.hoymiles.com/resources/download/ Hoymiles Power Electronics Inc. Add: Floor 6-10, Building 5, 99 Housheng Road, Gongshu District, Hangzhou 310015, P. R. China Tel: +86 571 2805 6101 Email: service@hoymiles.com support@hoymiles.com AP040957 www.hoymiles.com...
