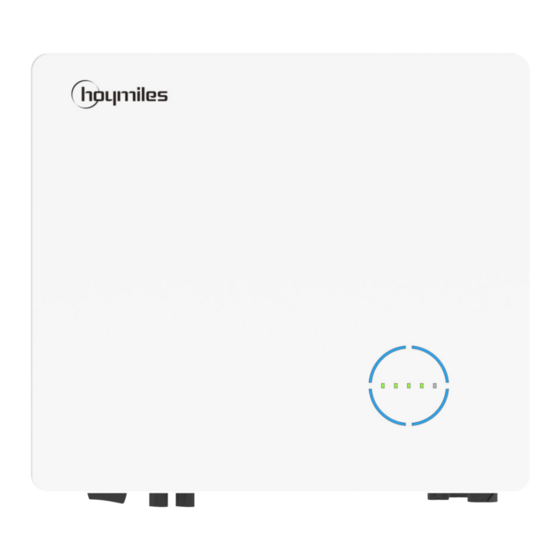

Hoymiles HYS-3.6LV-EUG1 Quick Installation Manual
Hybrid inverter
Hide thumbs
Also See for HYS-3.6LV-EUG1:
- User manual (63 pages) ,
- Quick installation manual (33 pages) ,
- Quick installation manual (16 pages)
Related Manuals for Hoymiles HYS-3.6LV-EUG1
Summary of Contents for Hoymiles HYS-3.6LV-EUG1
- Page 1 Open Energy for All Hybrid Inverter Quick Installation Guide HYS-3.0LV-EUG1/AUG1 HYS-3.6LV-EUG1/AUG1 HYS-4.6LV-EUG1/AUG1 HYS-5.0LV-EUG1/AUG1 HYS-6.0LV-EUG1/AUG1 Region: Global REV1.3 hoymiles.com...
-
Page 2: Packing List
Hybrid Inverter Quick Installation Guide 1 General Declaration • The information in this quick installation guide is subject to change due to product updates or other reasons. • This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise specified. -
Page 3: Mounting The Inverter
Hybrid Inverter Quick Installation Guide 3 Mounting the Inverter ≥300 mm ≥200 mm ≥200 mm ≥300 mm ≥15° ≥500 mm 75 mm 75 mm 65 mm © 2022 Hoymiles Power Electronics Inc. All rights reserved. © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 4: Wiring Diagram
Hybrid Inverter Quick Installation Guide 4 Wiring Diagram... - Page 5 Hybrid Inverter Quick Installation Guide © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 6 Hybrid Inverter Quick Installation Guide...
- Page 7 Hybrid Inverter Quick Installation Guide © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 8: Electrical Connection
Hybrid Inverter Quick Installation Guide 5 Electrical Connection Step 1 Grounding Protection Wire L=H+(2-3) mm S≥6 mm² 1.2 N·m Step 2 Grid (Same wirings for GEN if needed) 7-8 mm 20-25 mm 13 mm≤ ≤18 mm S=6 mm² 2 N·m Click Step 3 EPS 7-8 mm... - Page 9 Hybrid Inverter Quick Installation Guide Step 4 PV Φ 7-8 mm Φ: 4-5 mm 2.5 mm²≤S≤4 mm² Click Step 5 Battery S: 20-25 mm² Lock Click Click © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 10 Hybrid Inverter Quick Installation Guide Step 6 Signal Communication (Connection of communication box is mandatory) 8-485A_2 120 Ohm 7-485B_2 6-485A_1 5-485B_1 D2/6 D4/8 4-CANL 3-CANH 2-DI IN- 1-DI IN+ Para1 COM1 8-NC 8-485B 8-485A_2 7-NC 7-485A 7-485B_2 6-NC 6-NC 6-485A_1 5-485B 5-CANL 5-485B_1...
- Page 11 Hybrid Inverter Quick Installation Guide RJ45 Terminal Connection (METER, BMS) 40 mm 0.6-0.8 N·m 6-7 N·m Step 7 Data Transfer Stick (DTS) WIFI and 4G Connection 0.6-0.8 N·m © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 12: Ethernet Connection
0.5-0.8 N·m 6 DTS Online Setting 1. Search “Hoymiles” in the App Store (iOS) or the Play Store (Android), or scan the QR code to download the Hoymiles Installer App. 2. Open the app and log in with your installer account and password. For new Hoymiles installers, please apply for... - Page 13 “Network Config”. (b) Select the DTS’s wireless network and click on “Connect”. (The network name of the DTS consists of DTS and product serial number, and the default password is ESS12345) © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 14 Hybrid Inverter Quick Installation Guide 4. Network configuration. (a) Upon successful connection, click on “Network Config” again and access the Network Configuration page. (b) Select the router Wi-Fi and enter the password. (c) Click on “Send to DTU”. 5. Check the DTS indicator for a solid blue light, which signifies a successful connection. The network configuration takes about 1 minute, please be patient.
- Page 15 2. Click the “Meter Location“ to configure the grid side meter. The serial number (SN) can be entered manually or identified through scanning the QR code. If the GEN port is connected with the PV inverter or diesel generator, the PV side meter also needs to be configured. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 16 3. Click on “O&M → Toolkit”, access the Overview page and click the “Self-check”. The self check can be completed after PV, battery, grid, EPS and GEN are properly connected. Hoymiles Power Electronics Inc. Add: Floor 6-10, Building 5, 99 Housheng Road, Gongshu District, User Manual in the QR code or at Hangzhou 310015, P.
