Hoymiles HYS-8.0LV-EUG2 Quick Installation Manual

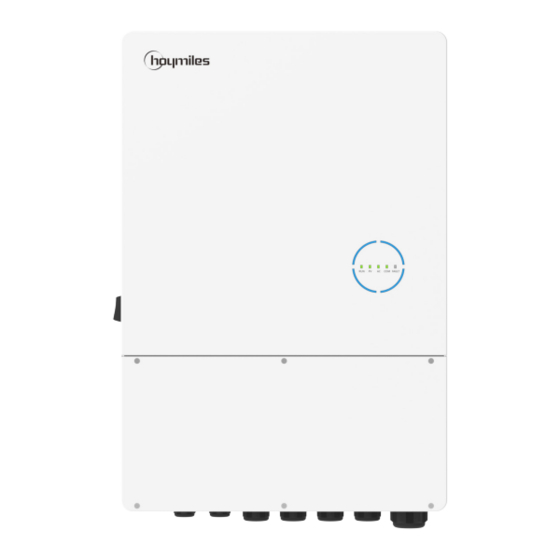

Single-phase hybrid inverter
Hide thumbs Also See for HYS-8.0LV-EUG2:
Table of Contents

Advertisement

Quick Links

Download this manual
Open Energy for All
Single-phase Hybrid Inverter
Quick Installation Guide
HYS-8.0LV-EUG2
HYS-10.0LV-EUG2
HYS-12.0LV-EUG2
Region: Global REV1.2
hoymiles.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYS-8.0LV-EUG2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoymiles HYS-8.0LV-EUG2

Summary of Contents for Hoymiles HYS-8.0LV-EUG2

  • Page 1 Open Energy for All Single-phase Hybrid Inverter Quick Installation Guide HYS-8.0LV-EUG2 HYS-10.0LV-EUG2 HYS-12.0LV-EUG2 Region: Global REV1.2 hoymiles.com...

  • Page 2: Packing List

    Hybrid Inverter Quick Installation Guide 1 General Declaration • The information in this quick installation guide is subject to change due to product updates or other reasons. • This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise specified.

  • Page 3: Product Dimensions

    Hybrid Inverter Quick Installation Guide 3 Product Dimensions 518.5 mm 502 mm 202 mm 740 mm COM FAULT 770.5 mm DC SWITCH GRID BAT+ BAT- COM1 COM2 © 2023 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 4: Wiring Diagram

    Hybrid Inverter Quick Installation Guide 4 Wiring Diagram...
  • Page 5 Hybrid Inverter Quick Installation Guide © 2023 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 6 Hybrid Inverter Quick Installation Guide...
  • Page 7 Hybrid Inverter Quick Installation Guide © 2023 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 8 Hybrid Inverter Quick Installation Guide 5 Recommended Cable List...
  • Page 9 Hybrid Inverter Quick Installation Guide 6 Wall Mounting Steps ≥300 mm ≥200 mm ≥200 mm ≥300 mm ≥15° ≥500 mm 203 mm 203 mm © 2023 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 10: Electrical Connection

    Hybrid Inverter Quick Installation Guide 7 Electrical Connection Step 1 Opening the Wiring Box Cover COM FAULT Product Overview COM FAULT BATT+ BATT- PV1+ PV1- PV2+ PV2- GRID PV1+ PV1- PV2+ PV2- 1. LED Indicators 2. DC Switch 3. PV Terminals 4.

  • Page 11: Step 2 Ground Cable Connection

    PV1+ PV1- PV2+ PV2- 13-14 mm 13-14 mm Step 4 Battery Cable Connection 8 mm 22.6 N·m BATT+ 20-23 mm BATT+ BATT- PV1+ PV1- PV2+ PV2- 20-23 mm BATT- GRID © 2023 Hoymiles Power Electronics Inc. All rights reserved. GRID...

  • Page 12: Step 5 Ac Cable Connection

    Hybrid Inverter Quick Installation Guide Step 5 AC Cable Connection The following diagrams are examples of connecting grid cables. The GEN and EPS connection methods are similar to the grid connection, and note that EPS has its own PE terminal beside L/N. For recommended cable specifications of EPS and GEN, please refer to the recommended cable list mentioned above.
  • Page 13 Earth Fault Alarm, Load Control DO1 (NO1, COM1) and Generator Control. Dry contact output. The DO2 will control the bypass DO2 (NO2, COM2) contactor under certain logic. 4G and Wi-Fi Connection 0.6-0.8 N·m © 2023 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 14: Ethernet Connection

    Hybrid Inverter Quick Installation Guide Ethernet Connection BATT+ PV1+ PV1- PV2+ PV2- BATT- 0.6-0.8 N·m 8-NC 7-NC 6-RX- 5-NC PARA1 4-NC 3-RX+ 2-TX- 1-TX+ 0.8-1.5 N·m 0.5-0.8 N·m Step 7 Installing the Wiring Box Cover After the cables are firmly and correctly connected, install the wiring box cover. GRID COM FAULT 1.2 N·m...
  • Page 15 8 DTS Online Setting GRID 1. Search “Hoymiles” in the App Store (iOS) or the Play Store (Android), or scan the QR code to download the Hoymiles Installer App. 2. Open the App and log in with your installer account and password. For new Hoymiles installers, please apply for an installer account from your distributor in advance.
  • Page 16 Hybrid Inverter Quick Installation Guide (b) Select the DTS’s wireless network and click on “Connect”. (The network name of the DTS consists of DTS and product serial number, and the default password is ESS12345.) 4. Network configuration. (a) Upon successful connection, click on “Network Config” again and access the Network Configuration page.
  • Page 17 1. Connect the wireless network of DTU. Open the App, click “Toolkit → Meter Location“ to configure the grid side meter. The serial number (SN) can be entered manually or identified through scanning the QR code. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 18 Hybrid Inverter Quick Installation Guide 2. Click “Grid Profile Config → ESS Advanced Config → Meter Model” to choose “Single-phase Meter”, and click “Save”. 3. Click “Inverter Management → Battery Setting” to set battery type, BMS protocol and battery capacity, and click “Save”.
  • Page 19 “None”.) 5. Make sure that all cables including DC cables, AC cables and communication cables are properly connected, and all DC and AC switches are turned on, and then click “Self-check”. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 20 User Manual in the QR code or at www.hoymiles.com/resources/download/ Hoymiles Power Electronics Inc. Add: Floor 6-10, Building 5, 99 Housheng Road, Gongshu District, Hangzhou 310015, P. R. China Tel: +86 571 2805 6101 Email: service@hoymiles.com support@hoymiles.com AP040871 www.hoymiles.com...

This manual is also suitable for:

Hys-10.0lv-eug2Hys-12.0lv-eug2
