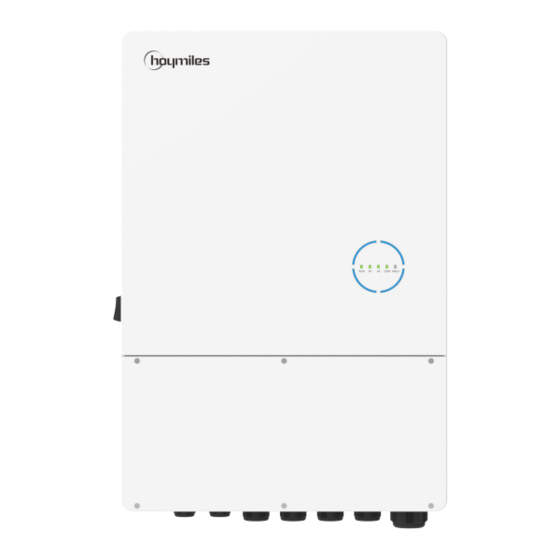

Hoymiles HYS-8.0LV-EUG2 Quick Installation Manual

Single-phase hybrid inverter
Hide thumbs Also See for HYS-8.0LV-EUG2:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
Open Energy for All
Single-phase Hybrid Inverter
Quick Installation Guide
HYS-8.0LV-EUG2
HYS-10.0LV-EUG2
HYS-12.0LV-EUG2
Region: Global REV1.4
hoymiles.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYS-8.0LV-EUG2 and is the answer not in the manual?

Questions and answers

Related Manuals for Hoymiles HYS-8.0LV-EUG2

Summary of Contents for Hoymiles HYS-8.0LV-EUG2

  • Page 1 Open Energy for All Single-phase Hybrid Inverter Quick Installation Guide HYS-8.0LV-EUG2 HYS-10.0LV-EUG2 HYS-12.0LV-EUG2 Region: Global REV1.4 hoymiles.com...
  • Page 2 Table of Contents EN·················································································01 BG ················································································02 CS ·················································································03 DA ················································································04 DE·················································································05 EL ·················································································06 ES ·················································································07 ET ·················································································08 FI ··················································································09 FR ·················································································10 HR ················································································11 HU ················································································12 IT ··················································································13 LT··················································································14 LV ·················································································15 NL·················································································16 PL ·················································································17 PT ·················································································18 RO ················································································19 SK ·················································································20 SL ·················································································21 SV ·················································································22 Instructions ································································23...

  • Page 3: Packing List

    Document Expansion Screw M6*6 Bracket*1 Document*1 Sleeve*6 COM FAULT Inverter*1 Ground Terminal*1 Screw M4*2 DTS Connecting Line*1 Accessories Packing List DTS*1 Smart Meter*1 CT*1 Optional (Wi-Fi, Ethernet, 4G) Battery Temperature Sensor*1 © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 4 Hybrid Inverter Quick Installation Guide 1 Обща декларация • Информацията в това кратко ръководство за инсталация подлежи на промяна при актуализиране на продукта или по други причини. • Това ръководство не може да замени предупрежденията, поставени на продукта, или мерките за безопасност, описани в ръководството за употреба, освен ако не е указано друго. Всички...
  • Page 5 1× měnič 1× svorka uzemnění 2× šroub M4 1× spojovací vedení DTS Seznam balení příslušenství 1× inteligentní elektroměr 1× DTS 1× snímač teploty baterie 1× proudový transformátor Volitelné (Wi-Fi, Ethernet, 4G) © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 6 Hybrid Inverter Quick Installation Guide 1 Generel erklæring • Oplysningerne i denne installationsvejledning kan ændres på grund af produktopdateringer eller af andre årsager. • Denne vejledning kan ikke erstatte produktmærkaterne eller sikkerhedsforanstaltningerne i brugervejledningen, medmindre andet er angivet. Alle beskrivelser her er kun vejledende. •...
  • Page 7 COM FAULT 1 x Wechselrichter 1 x Erdungsanschluss 2 x M4-Schraube 1 x DTS-Verbindungsleitung Zubehörpackliste 1 x DTS 1 x Intelligenter Stromzähler 1 x CT Optional (WLAN, Ethernet, 4G) 1 x Batterie-Temperatursensor © 2024 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 8: Περιεχόμενα Συσκευασίας

    Hybrid Inverter Quick Installation Guide 1 Γενική δήλωση • Οι πληροφορίες στον παρόντα οδηγό γρήγορης εγκατάστασης υπόκεινται σε αλλαγές λόγω ενημερώσεων προϊόντων ή άλλων λόγων. • Ο παρών οδηγός δεν αντικαθιστά τις ετικέτες προϊόντος ή τις προειδοποιήσεις ασφαλείας στο εγχειρίδιο χρήσης, εκτός εάν ορίζεται άλλως. Όλες οι περιγραφές στο παρόν παρέχονται αποκλειστικά...

  • Page 9: Lista De Embalaje

    1 terminal de conexión a tierra 2 tornillos M4 1 línea de conexión DTS Lista de accesorios incluidos 1 DTS 1 sensor de temperatura de la 1 contador inteligente 1 CT (Wi-Fi, Ethernet, 4G) opcional batería © 2024 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 10: Üldine Teave

    Hybrid Inverter Quick Installation Guide 1 Üldine teave • Kiirpaigaldusjuhendis olevat teavet võidakse muuta toote tarkvara värskenduste või muude muudatuste tõttu. • Selle juhendi juhised ei asenda kleebistega antud teavet ega kasutusjuhendi ohuhoiatusi, kui sellest pole teavitatud. Kõik illustratsioonid on vaid näitlikustamiseks. •...

  • Page 11: Yleistä Tietoa

    M6-laajennusruuvi x6 Teline x1 Asiakirja x1 Holkki x6 COM FAULT Invertteri x1 Maadoitusliitin x1 M4-ruuvi x2 DTS-liitäntäjohto x1 Tarvikkeiden pakkausluettelo DTS x1 Älymittari x1 CTx1 Valinnainen (Wi-Fi, Ethernet, 4G) Akun lämpötila-anturi x1 © 2024 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 12: Liste D'emballage

    Hybrid Inverter Quick Installation Guide 1. Déclaration générale • Les informations contenues dans ce guide d’installation rapide sont susceptibles d’être modifiées en raison de mises à jour du produit ou pour d’autres raisons. • Ce guide ne peut pas remplacer les étiquettes du produit ou les consignes de sécurité du manuel d’utilisation, sauf indication contraire.

  • Page 13: Popis Pakiranja

    Rastezni vijak M6*6 Nosač*1 Dokument*1 Tipla*6 COM FAULT Pretvarač*1 Terminal uzemljenja*1 Vijak M4*2 DTS linija za povezivanje*1 Popis pakiranja dodatne opreme DTS*1 Pametni mjerač*1 CT*1 Opcijski (Wi-Fi, Ethernet, 4G) Senzor temperature baterije*1 © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 14 Hybrid Inverter Quick Installation Guide 1 Általános nyilatkozat • A jelen gyors telepítési útmutatóban szereplő információk a termékfrissítések vagy egyéb okok miatt változhatnak. • Ez az útmutató nem helyettesítheti a termékcímkéket vagy a felhasználói kézikönyvben található biztonsági óvintézkedéseket, hacsak nincs másképp meghatározva. Az itt található leírások csak tájékoztató...

  • Page 15: Contenuto Della Confezione

    Vite M4 2 pz. DTS 1 pz. Contenuto della confezione degli accessori DTS 1 pz. Sensore di temperatura della Contatore intelligente 1 pz. Opzionale (Wi-Fi, Ethernet, 4G) batteria 1 pz. TA 1 pz. © 2024 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 16: Pakuotės Turinys

    Hybrid Inverter Quick Installation Guide 1. Bendrasis pareiškimas • Šiame trumpajame montavimo vadove pateikta informacija gali būti keičiama dėl produkto atnaujinimų ar kitų priežasčių. • Jei nenurodyta kitaip, šis vadovas negali pakeisti gaminio etikečių ar naudotojo vadove nurodytų saugos priemonių. Visi aprašymai čia yra tik orientacinio pobūdžio. •...
  • Page 17 Document Izplešanās skrūve M6*6 Kronšteins*1 Dokuments*1 Uzmava*6 COM FAULT Invertors*1 Zemēšanas spaile*1 Skrūve M4*2 DTS savienojuma līnija*1 Piederumu komplektācijas saraksts DTS*1 Akumulatora temperatūras Viedā mērierīce*1 CT*1 Izvēles (Wi-Fi, Ethernet, 4G) sensors*1 © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 18 Hybrid Inverter Quick Installation Guide 1 Algemene verklaring • De informatie in deze snel-installatiehandleiding kan worden gewijzigd als gevolg van productupdates of om andere redenen. • Deze handleiding is geen vervanging voor de productlabels of de veiligheidsvoorschriften in de gebruiksaanwijzing, tenzij anders aangegeven. Alle beschrijvingen hier zijn slechts bedoeld als leidraad.

  • Page 19: Zawartość Opakowania

    Linia łącząca DTS * 1 Śruba M4 * 2 Lista akcesoriów w opakowaniu DTS * 1 Czujnik temperatury akumulatora * 1 Licznik inteligentny * 1, CT * 1 Opcjonalne (Wi-Fi, Ethernet, 4G) © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 20 Hybrid Inverter Quick Installation Guide 1 Declaração geral • A informação contida neste guia de instalação rápida está sujeita a alteração devido a atualizações de produto ou outras razões. • Este guia não substitui as etiquetas dos produtos ou as precauções de segurança contidas no manual de utilizador salvo especificação em contrário.

  • Page 21: Pachetul De Livrare

    1 x document 6 x manșon COM FAULT 1 x invertor 1 x clemă de împământare 2 x șurub M4 1 x linie de conexiune DTS Accesoriile din pachetul de livrare 1 x DTS 1 x senzor de temperatură acumulator 1 x contor inteligent 1 x CT Opțional (Wi-Fi, Ethernet, 4G) © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 22 Hybrid Inverter Quick Installation Guide 1 Všeobecné vyhlásenie • Informácie v tejto stručnej príručke na inštaláciu sa môžu zmeniť v dôsledku aktualizácie produktu alebo z iných dôvodov. • Táto príručka nemôže nahradiť štítky na produkte ani bezpečnostné opatrenia v používateľskej príručke, ak nie je uvedené...
  • Page 23 Document Razširitveni vijak M6*6 Nosilec*1 Dokument*1 Objemka*6 COM FAULT Inverter*1 Ozemljitveni terminal*1 Vijak M4*2 Povezovalna linija DTS*1 Seznam paketa dodatkov DTS*1 Temperaturni senzor baterije*1 Pametni merilnik*1 CT*1 Izbirno (Wi-Fi, Ethernet, 4G) © 2024 Hoymiles Power Electronics Inc. All rights reserved.

  • Page 24: Allmänna Anvisningar

    Hybrid Inverter Quick Installation Guide 1 Allmänna anvisningar • Informationen i den här snabbinstallationsguiden kan komma att ändras på grund av produktuppdateringar eller andra orsaker. • Denna guide kan inte ersätta produktmärkningen eller säkerhetsföreskrifterna i användarmanualen om inte annat anges. Alla beskrivningar här är endast vägledande. •...
  • Page 25 Dimensões do produto / Dimensiunile produsului / Rozmery produktu / Mere izdelka / Produktmått 518.5 mm 202 mm 502 mm 740 mm 770.5 mm COM FAULT DC SWITCH GRID BAT+ BAT- COM1 COM2 © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 26 / Lista de cabos recomendados / Lista cablurilor recomandate / Zoznam odporúčaných káblov / Priporočeni seznam kablov / Rekommenderad kabellista This data is the cable specification recommended by Hoymiles. For proper cable specifications, please refer to local laws and regulations and actual installation. Cable...
  • Page 27 / Pașii de montare pe perete / Postup montáže na stenu / Koraki za namestitev na steno / Väggmonteringsanvisning ≥300 mm ≥200 mm ≥200 mm ≥300 mm ≥15° ≥500 mm 203 mm 203 mm © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 28 Hybrid Inverter Quick Installation Guide 6 Electrical Connection / Електрически връзки / Elektrické připojení / El-tilslutning / Elektrischer Anschluss / Ηλεκτρική σύνδεση / Conexión eléctrica / Elektrilised ühendused / Sähköliitäntä / Branchement électrique / Električna veza / Elektromos csatlakozás / Collegamento elettrico / Elektros jungtis / Elektriskais savienojums / Elektrische aansluiting / Połączenia elektryczne / Ligação elétrica / Conectarea electrică...
  • Page 29 / Prehľad produktu / Pregled izdelka / Produktöversikt COM FAULT BATT+ BATT- PV1+ PV1- PV2+ PV2- GRID 1. LED Indicators 2. DC Switch 3. PV Terminals 4. Communication Port 5. Battery Terminals 6. Grounding Bar 7. AC Terminals © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 30 Hybrid Inverter Quick Installation Guide Step 2 Ground Cable Connection / Стъпка 2 Свързване на кабел за заземяване / Krok 2 Připojení zemnícího kabelu / Trin 2 Tilslutning af jordkabel / Schritt 2 Anschluss des Erdungskabels / Βήμα 2 Σύνδεση καλωδίου γείωσης / Paso 2 Conexión del cable de conexión a tierra / Samm 2 Maanduskaabli ühendamine / Vaihe 2 Maadoituskaapelin liitäntä...
  • Page 31 For recommended cable specifications of EPS and GEN, please refer to the recommended cable list mentioned above. 3 N·m 17-18 mm BATT+ 17-18 mm BATT- 10-12 mm GRID S=25-35 mm² S=25-35 mm² GRID S=16 mm² © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 32 Hybrid Inverter Quick Installation Guide Step 6 Communication Cable Connection / Стъпка 6 Свързване на комуникационен кабел / Krok 6 Připojení komunikačního kabelu / Trin 6 Tilslutning af kommunikationskabel / Schritt 6 Kommunikationskabelverbindung / Βήμα 6 Σύνδεση καλωδίου επικοινωνίας / Paso 6 Conexión del cable de comunicación / Samm 6 Sidekaabli ühendamine / Vaihe 6 Tietoliikennekaapelin liitäntä...
  • Page 33 Połączenie Ethernet / Ligação Ethernet / Conectarea la Ethernet / Ethernetové pripojenie / Ethernetna povezava / Ethernet-anslutning PV1+ PV1- PV2+ PV2- 0.6-0.8 N·m 8-NC 7-NC 6-RX- 5-NC 4-NC 3-RX+ 2-TX- 1-TX+ 0.8-1.5 N·m 0.5-0.8 N·m © 2024 Hoymiles Power Electronics Inc. All rights reserved.
  • Page 34 Hybrid Inverter Quick Installation Guide Step 7 Installing the Wiring Box Cover / Стъпка 7 Монтаж на капака на клемното табло / Krok 7 Instalace krytu elektroinstalační krabice / Trin 7 Installation af dækslet til ledningsboksen / Schritt 7 Anbringen der Abdeckung der Verdrahtungsdose / Βήμα 7 Τοποθέτηση...
  • Page 35 приложението Hoymiles / 7 Uvedení do provozu prostřednictvím aplikace Hoymiles / 7 Idriftsættelse via appen Hoymiles / 7 Inbetriebnahme über die Hoymiles App / 7 Θέση σε λειτουργία με την εφαρμογή Hoymiles / 7 Puesta en funcionamiento a través de la aplicación Hoymiles / 7 Kasutuselevõtt Hoymilesi rakenduse kaudu / 7 Käyttöönotto Hoymiles-sovelluksen kautta / 7.
  • Page 36 User Manual in the QR code or at www.hoymiles.com/resources/download/ Hoymiles Power Electronics Inc. Add: Floor 6-10, Building 5, 99 Housheng Road, Gongshu District, Hangzhou 310015, P. R. China Tel: +86 571 2805 6101 Email: service@hoymiles.com support@hoymiles.com AP040871 www.hoymiles.com...
