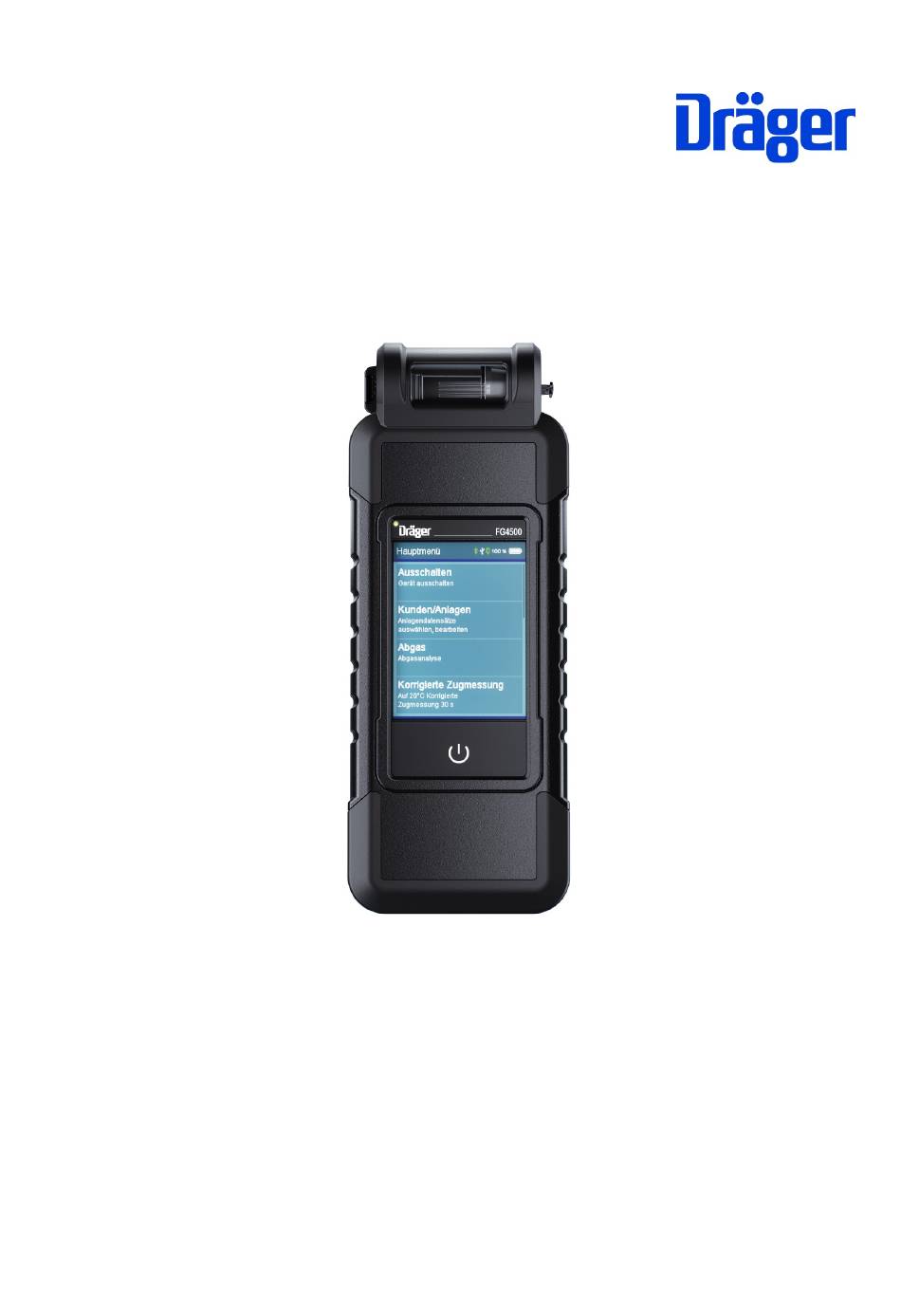

- Page 1 Operating Instructions Dräger FG4500 Dräger MSI GmbH Rohrstraße 32 58093 Hagen Tel.: 02331 95 84 0 Fax: 02331 95 84 29 e-mail: info@draeger-msi.de 5695100 Edition 01 – May 2022...
-
Page 2: Table Of Contents
Operating Instructions Dräger FG4500 Inhalt 1. Information ........................3 1.1 Certification ......................... 3 1.2 Usage ......................... 3 1.3 Maintenance ....................... 4 1.4 Disposal according to WEEE ..................4 2. The measuring device ...................... 5 3. First time use and general operation................6 3.1 Preparation for first time use .................. - Page 3 Operating Instructions Dräger FG4500 12.4 Show integrated operation instruction ..............23 12.4 Automatic daylight saving ..................23 12.5 Change bar -> Pa ....................23 12.6 Input of combustion system data ................24 12.7 Draft measurement ....................24 12.8 Calorific value ......................24 12.9 Extended fuel table ....................
-
Page 4: Information
LPG butane, coal gas, coke oven gas. The lifetime of the sensors used in the FG4500 is typically 3 years for both the O2 sensor and the CO sensor. The pressure sensor has no limited lifetime under normal-use condi- tions. -
Page 5: Maintenance
In essence, these regulations set out that collection and recycling options should be available for households. Because the FG4500 is not registered for use in private house-holds, it must not be disposed of through such channels. The devices can be returned to your national retailer or to your national Dräger Safety Organization for disposal. -
Page 6: The Measuring Device

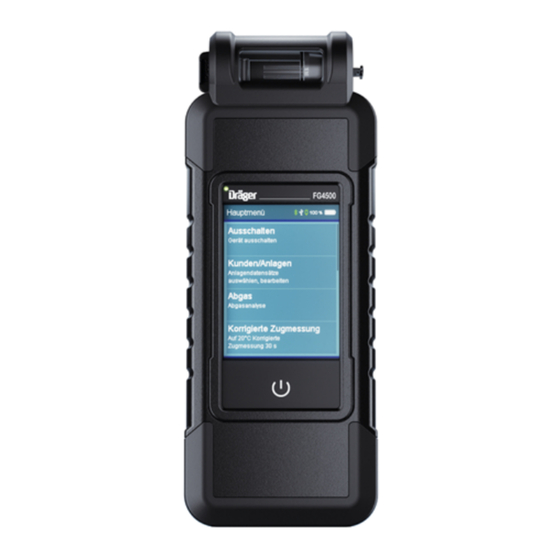

Operating Instructions Dräger FG4500 2. The measuring device The FG4500 is an all-purpose, electronic multi-channel device for calibration and testing work on small and medium-sized combustion systems. All tests and measurements can be documented through print outs or storage. Gas preconditioner... -
Page 7: First Time Use And General Operation
Ensure before each measurement that a clean filter is inserted in the gas preconditioner! Only turn the FG4500 on, if the flue gas probe is located in fresh air. The null signals of the sensors are matched with the fresh air. -
Page 8: On/Off
30 seconds of switching on, the device switches off automatically. The FG4500 then checks its functions by means of a system check. If regular maintenance is to be carried out, the device reminds of the maintenance date from one month before the due date. -
Page 9: Control Panels
Operating Instructions Dräger FG4500 3.3 Control panels Menu = opens the context menu for the selection and editing of system data Select = enables the marked position = confirms a selection Finish = leads to the next step of a function after an action... -
Page 10: Customer And Site Management
Operating Instructions Dräger FG4500 3.4 Customer and site management The Menu button opens a shortcut menu. Used together with the menu item, the context menu provides different processing options and commands. Customer data and comments can be entered via an on-screen keyboard. -
Page 11: Starting Measurements
Operating Instructions Dräger FG4500 3.6 Starting measurements Before starting a measurement, the connection used for the measurement is indicated. 3.7 Display results A result display appears after completing a measurement. 5695100 Edition 01 – May 2022... -
Page 12: Documentation Menu
Operating Instructions Dräger FG4500 3.8 Documentation menu After completion of the measurement, the documentation menu can be called. If no customer was selected before the measurement, a customer can be selected or newly created here. With Save , the measurement result is assigned to the customer. -
Page 13: Main Menu
Operating Instructions Dräger FG4500 4. Main menu Selectable menu items are: OFF: Ausschalten des Messgerätes Customers / sites: Select and edit customer / site records Flue gas measurement: Flue gas analyses with selectable parameters CO-ambient: Measurement of the CO ambient concentration... - Page 14 Operating Instructions Dräger FG4500 Delete : You can delete the selected record. That is only possible, if no measurement data is saved in the device. 5695100 Edition 01– May 2022...
-
Page 15: Flue Gas Measurement
6.1 Connecting the flue gas probe Turn the FG4500 on and press Next. After the system check, the FG4500 is ready for use. Select Flue gas measurement in the main menu. Connect the flue gas probe to the device (see connection dia- gram). -
Page 16: Measuring Combustion Air Temperature
Operating Instructions Dräger FG4500 6.3 Measuring combustion air temperature The FG4500 will now ask you to measure the combustion air tem- perature. Place the flue gas probe in the inspection opening of the combustion air intake or alternatively hold the flue gas probe in the room air. -
Page 17: Draft Measurement
Operating Instructions Dräger FG4500 6.6 Draft measurement If draft measurement is enabled in the settings, the draft (differential pressure) of the flue gas can be measured. This requires moving the flue gas probe from gas inlet G to pressure connection P. -
Page 18: Ambient Air Co Measurement
Dichtheit mittels einer Messung der CO-Konzentration der Raumluft zu bestimmen. Hierzu benötigt das FG4500 keinen externen CO-Sensor. An einem Ort mit frischer Luft ohne CO- Gehalt muss der Anzeigewert 0 ppm sein. Ist der Anzeigewert nicht 0 ppm, den Schlauch der Abgassonde vom Gerät abziehen, eine kurze Zeit mit laufender Pumpe warten und Null... -
Page 19: Checklists
Operating Instructions Dräger FG4500 9. Checklists Measurement specifications often include visual inspections and other controls that have nothing to do with the actual measurement. Such additional information regarding the mea- surements or the equipment can be recorded with checklists. Even work instructions can be created and processed in this manner. -
Page 20: Data Memory Functions
Operating Instructions Dräger FG4500 10.2 Data memory functions Selectable functions are: Info: Data storage information Show data: Show stored record Inspectors table: Viewing and editing the Inspectors table Delete measurements: Delete measurement data storage Delete all customers: Delete all customer data 10.3 Data storage information... -
Page 21: Daten Zeigen
Operating Instructions Dräger FG4500 10.4 Daten zeigen The measurement is saved with date and time and site number, if a site has been assigned. Select calls up the measurement results display. With Docu the assigned site is displayed and the measurement... -
Page 22: Inspector Table
11. Device information This function provides information about the manufacturer (Drä- ger), the measuring device type (FG4500), the version of the device software (here 1.1,003), the device serial number, the set date, the set time, the selected inspector and the next service date. -
Page 23: Settings
Operating Instructions Dräger FG4500 12. Settings The measuring device can be configured according to user's requirements. The functions are switched on and off via the control panel or switched to the input. Settings Page 1: Date and time: Date and time can be set. -
Page 24: Date And Time
Operating Instructions Dräger FG4500 Settings page 3: Auto. shutdown Off: Setting the time for automatic shutdown. Pressing the arrow button again switches to entering a footer text for the Blue- tooth printer. A default printer can also be set there. -
Page 25: Input Of Combustion System Data
Operating Instructions Dräger FG4500 12.6 Input of combustion system data Input of combustion system data during exhaust gas measurement can be switched on or off. These include boiler temperature, soot numbers and the consideration of oil derivatives. 12.7 Draft measurement Soll die Zugmessung bei der Abgasanalyse berücksichtigt werden, kann diese hiermit ein-... -
Page 26: Printer Footer
Operating Instructions Dräger FG4500 12.14 Printer footer MThis function can be used to change the printer foot text for the Bluetooth printer line by line. Under "Enter" the lines are to be edited. Press OK after typing changes to the next line. -
Page 27: Warnings And Error Messages
Operating Instructions Dräger FG4500 13. Warnings and error messages During the switch-on phase and during measurement operation, the measuring instrument checks the correct functioning. Warnings and error messages are displayed after the startup phase or during normal operation. Possible ads:... -
Page 28: Power Supply
Operating Instructions Dräger FG4500 14. Power supply 14.1 General information on power supply A rechargeable lithium-ion battery built into the measuring device enables mains-independ- ent operation. The operating time with a fully charged battery is up to 8 hours, depending on the type of measurements and the display brightness set, this may vary. -
Page 29: Specifications
Operating Instructions Dräger FG4500 15. Specifications 15.1 General technical data Display: Colour display with touchscreen Interfaces: USB-C, Bluetooth LE Power supply: Li-Ion battery, 3,6 V, 2700 mAh, charge level indicator, ;USB-C 5 V DC; 1,5 A Battery life: typical 8 hours... -
Page 30: Maintenance And Care
Operating Instructions Dräger FG4500 16. Maintenance and care In order to maintain measurement accuracy and safe function, the measuring instrument should be checked once a year by an authorized service partner and readjusted if neces- sary. The device can be cleaned with a damp, non-wet, cloth. Do not use chemical detergents.
