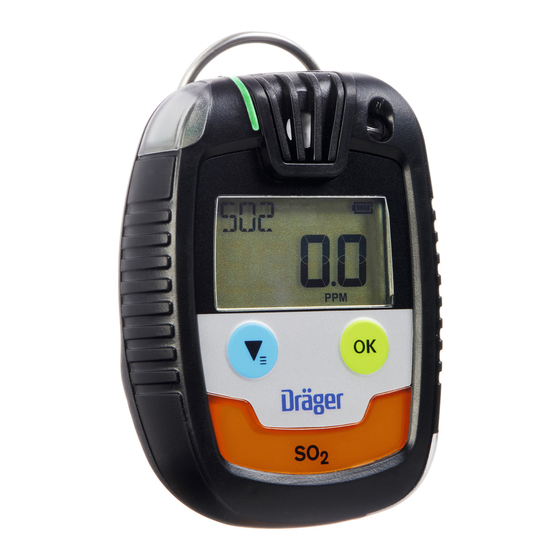

- Page 1 Dräger Pac 6x00 / 8x00 Technical manual...
-
Page 3: Table Of Contents
10.2 Technical data of the sensors and the measuring de- vice settings for Pac 6000/6500 ....18 10.3 Technical data of the sensors and the measuring de- vice settings for Pac 8000 . -
Page 4: Safety-Related Information
Safety-related information Safety-related information Conventions used in this document Basic safety information Definition of alert icons Before using this product, carefully read the associated instructions for use. This document does not replace the The following alert messages are used in this document to instructions for use. -
Page 5: Description
Description Description Product overview 3.1.1 Gas detector 8 (4x) 00333742.eps 1 Alarm LEDs 6 [OK] button 2 Operation signal/ 7 [▼] button D-Light 3 Gas inlet 8 Screw (4x) 4 Horn 9 IR interface 5 Display 3.1.2 Display 2 3 4 00733742.eps 1 Key word symbol 6 Span calibration... -
Page 6: Use
After the gas detector has been switched on, the current measured value is shown in the display. Check whether the warning [!] appears. If it is displayed, we Preparations for use recommend performing a bump test, see Section 4.2.3 on 4.1.1 Initial start-up Page 6. -
Page 7: Information Display
Prerequisites for the manual bump test: Short-term exposure limit (STEL , not for Pac 6000) Duration of use (Pac 6000 always, Pac 6500 and 8x00 The gas detector is switched on. depending on the configuration) A suitable test gas cylinder is available, e.g. a test gas ... -
Page 8: Calibrating The Gas Detector
Calibrating the gas detector Calibrating the gas detector Carrying out a manual fresh air calibration WARNING To improve accuracy, a fresh air calibration can be carried out if there is a zero deviation. Danger to health! Do not inhale the test gas. Observe the hazard warnings on Observe the following notices for the calibration: the corresponding Safety Data Sheets and the instructions for During fresh air calibrations, the zero point of all sensors... -
Page 9: Carrying Out A Manual Span Calibration
Calibrating the gas detector Carrying out a manual span calibration Carrying out manual calibration with the Dräger CC-Vision Basic Prepare the test gas cylinder, connect the test gas cylinder to the calibration adapter and connect the calibration To calibrate the gas detector using the Dräger CC-Vision Basic adapter to the gas detector. -
Page 10: X-Dock
Troubleshooting Troubleshooting An error message is displayed in the event of instrument faults. The number that appears below the message is used for service functions. If the fault remains after turning the device on and off several times, contact the service of Dräger. Error code Cause Remedy... - Page 11 Troubleshooting Error code Cause Remedy Sensor hardware on the gas detector faulty. Contact the service of Dräger. Compensation channel calibration error on Carry out a calibration, see Section 5 on Page 8. DrägerSensor XXS measuring channel 1. No valid zero adjustment of DrägerSensor XXS Carry out a fresh air calibration, see Section 5.2 on measuring channel 2.
- Page 12 Troubleshooting Warning code Cause Remedy The temperature is too low. Operate the gas detector within the permissible temperature range. Calibration interval for DrägerSensor XXS Carry out a span calibration for DrägerSensor XXS measuring channel 1 expired. measuring channel 1, see Section 5.3 on Page 9 Compensation channel calibration interval Carry out a calibration for DrägerSensor XXS measuring channel 1, see Section 5 on Page 8.
-
Page 13: Maintenance
Maintenance Maintenance Configuring the gas detector The gas detector can be configured using the Dräger The following maintenance instructions must be carefully read, CC-Vision Basic PC software. For further information, see the understood and followed to prevent flammable or combustible Dräger CC-Vision Basic online help. -
Page 14: Replacing The Battery
Maintenance Replacing the battery If the gas detector can no longer be calibrated, the sensor must be replaced! WARNING Risk of explosion! ► Only the lithium battery type LBT 01** (order no. Only use the DrägerSensor XXS with the same part 83 26 856) may be used. -
Page 15: Replacing The Dust And Water Filter
Device settings Device settings Replacing the dust and water filter Only trained and qualified personnel may change the device settings. Factory setting The factory settings may differ for customised orders. Bump test mode Quick bump test Vibration alarm Bump test interval Operation signal D-Light Switch off... -
Page 16: Alarm Settings
Device settings Alarm settings Alarm Display Latching Acknowledgeable Horn Vibration Alarm 1 Alarm 2 STEL STEL Pre-alarm Main alarm Instrument alarm The intensity of the vibration depends on the temperature After the initial battery pre-alarm, the battery’s life span amounts to between 1 day and 2 weeks under normal conditions of use. -
Page 17: Disposal
Disposal Disposal Technical data This product must not be disposed of as household 10.1 Gas detector waste. This is indicated by the adjacent symbol. You can return this product to Dräger free of charge. For Ambient conditions during operation information please contact the national marketing Temperature Up to -30 °C ... -
