Summary of Contents for Hyena LED Multi
- Page 1 This guideline is applicable for the Hyena e-bike system only LED Multi Product Manual Copyright © 2021 HYENA INC. All Right Reserved. Version 210218 This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.
-
Page 2: Table Of Contents
Content Product features Product Description Parts Description Product Dimension Cable Pin Definition Technical Data Function Characteristic Mounting Parameter Connection LED Indication Information Certification Mounting Tool List Accessory List Mounting Instructions Operation Operation Instructions Safety Instructions Important Notice Moving and Storage Instructions Maintenance Disposal... -
Page 3: Product Features

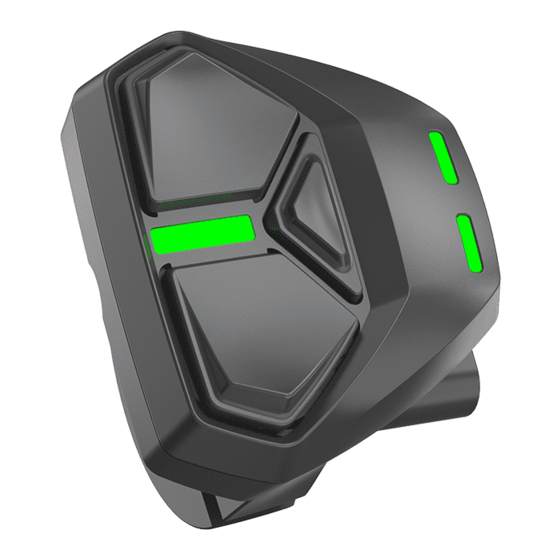

Product features Product Description The Hyena LED Multi features compact size, 3 multi-color LED indicators, flexible mounting position on handlebars (both left and right-hand side). Supports app and service tool connection via Bluetooth. Parts Description Up & Increase support level button... -
Page 4: Product Dimension
Product Dimension *1. refer to page 3 [Mounting Parameter] Cable Pin Definition HYENA E-BIKE SYSTEMS... -
Page 5: Technical Data
Clamp diameter 22.2 mm Cable length 520 mm (standard) 250 mm available (*1) Standard connector Hyena 6P male CM-WP408-06M Connection Bluetooth connection Bluetooth 4.2 BLE Support to HRA (Hyena Rider Assistant ) & HST (Hyena Service Tool) HYENA E-BIKE SYSTEMS... -
Page 6: Led Indication Information
LED Indicator Information Riding support level Battery status 4 segments Certification EN15194:2017 Bluetooth RoHS 2.0 HYENA E-BIKE SYSTEMS... -
Page 7: Mounting
• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches. Step1: Insert the rubber ring. Step2: Mount the HMI hook on the rubber ring Step3: Fasten the hex bolt. HYENA E-BIKE SYSTEMS... -
Page 8: Operation
-The e-Bike drive output only supports a speed below 25/45 km/h, as soon as you have reached 25/45 km/h, e-system switches off the assistance, then automatically reactivated when your speed is below 25/45 km/h. > 2 secs HYENA E-BIKE SYSTEMS... - Page 9 Red lights flash when a system error is detected. 10 seconds Bluetooth connection Blue lights flash 3 times when Bluetooth connected or disconnected. Loop Flash 3 seconds Error General Alert Mode HYENA E-BIKE SYSTEMS...
-
Page 10: Safety Instructions
Electric Shock, Or Injury To Persons system component. • WARNING - When using the LED Multi, basic • Do not place the product or any e-system component in precautions should always be followed, including the the car trunk for more than one day.
