PART NAMES AND FUNCTIONS
OPTIONAL Boards

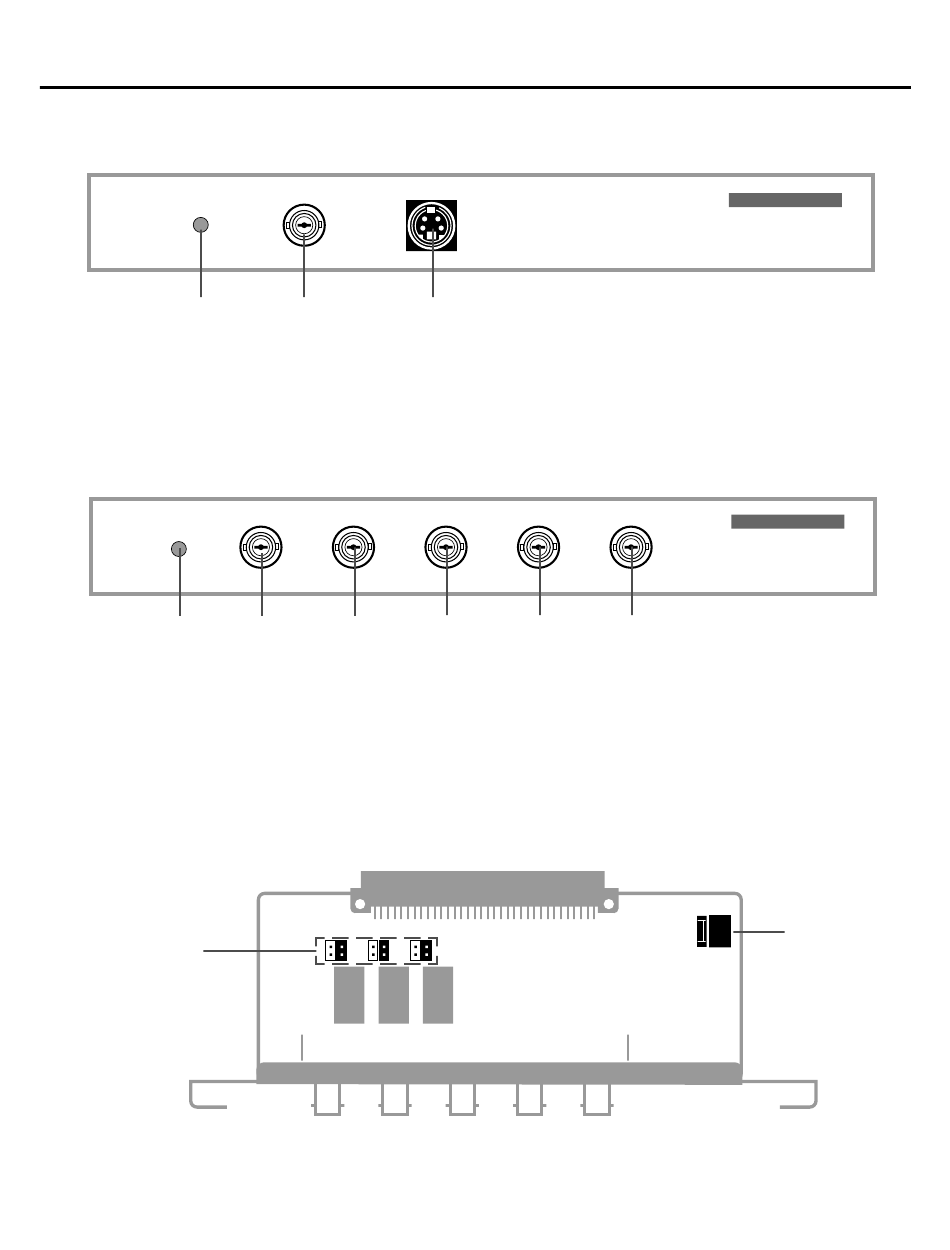

VIDEO INPUT Board [XG VIDIN]
Front view
1
1 Active Indicator (green LED) ...... Lights up when this board is selected.
2 VIDEO INPUT Terminal ............... Connects composite video output signals.
3 S-VIDEO INPUT Terminal ........... Connects S-video output signals.
RGB INPUT Board [XG RGBIN]
Front view
1
1 Active Indicator (green LED) ...... Lights up when this board is selected.
2 R Input Terminal .......................... Connects an Red output signal.
3 G Input Terminal ......................... Connects a Green output signal.
4 B Input Terminal .......................... Connects a Blue output signal.
5 H/HV Input Terminal .................... Connects horizontal sync or horizotnal/vertical sync output signals.
6 V Input Terminal .......................... Connects a vertical sync output signal.
RGB INPUT Board
Top view
8
7 Rotary Switch (S1001)
8 Jumper(S1002, S1003, S1004)
VIDEO
S-VIDEO
2
3
R
G
2
3
B
H/HV
4
5
6
VIDEO INPUT
RGB INPUT
V
6
7
