BEFORE SET-UP
Test Pattern
This projector will generate a selection of test signals.
Ten kinds of internal test patterns can be selected from the TEST
PATTERN menu.
To display the TEST PATTERN menu, proceed as follows:
1 Press the TEST button on the Full function remote control.
• The "TEST PATTERN" menu will be displayed.
• When the END button is pressed, the "TEST PATTERN" menu
will disappear.
2 Use the CURSOR
or
wish to use and press ENTER.
• The selected test pattern will be displayed.
3 To return to the source screen, press the TEST and then the END
button.
• When the TEST button is pressed, the "TEST PATTERN"
menu will be displayed and when the END button is pressed,
the screen will be changed to the source screen.
• The projector will return to the original source screen by
pressing the END button only when no menu or no adjustment
screen is displayed.
NOTE: If there is no test pattern, the beams have been turned
off by the R, G, and B buttons on the remote control.

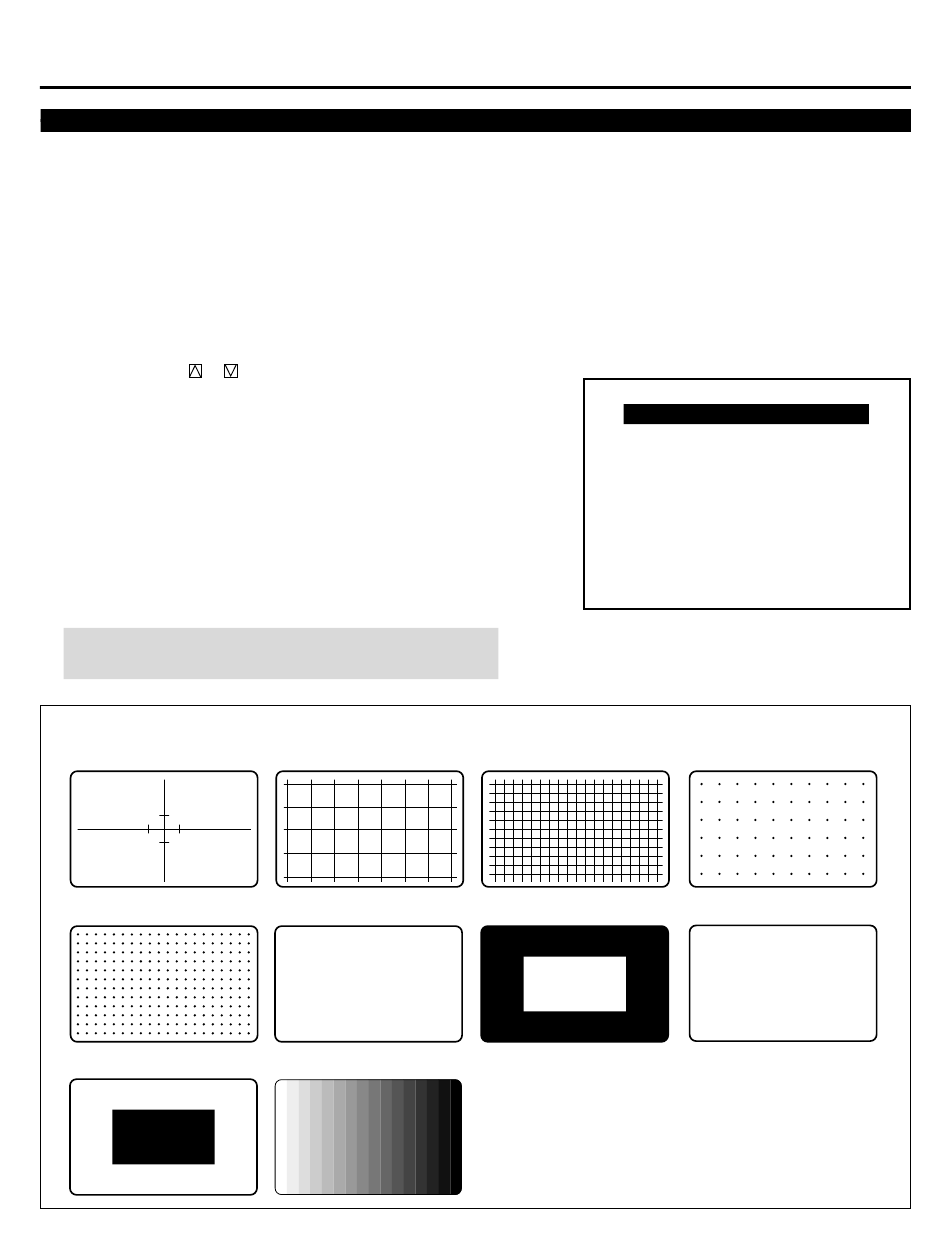

Adjustment test pattern
CROSS-HAIR
DOT-FINE
WINDOW-BLACK
button to highlight the test pattern you
CROSS-COARSE
FOCUS
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
H H H H H H H H H H H H H H H H H H H H H H H H H H
GRAY SCALE
– T E S T P A T T E R N –
C R O S S - H A I R
C R O S S - C O A R S E
C R O S S - F I N E
D O T - C O A R S E
D O T - F I N E
F O C U S
W I N D O W - W H I T E
A L L W H I T E
W I N D O W - B L A C K
G R A Y S C A L E
CROSS-FINE
WINDOW-WHITE
18
DOT-COARSE
ALL WHITE
