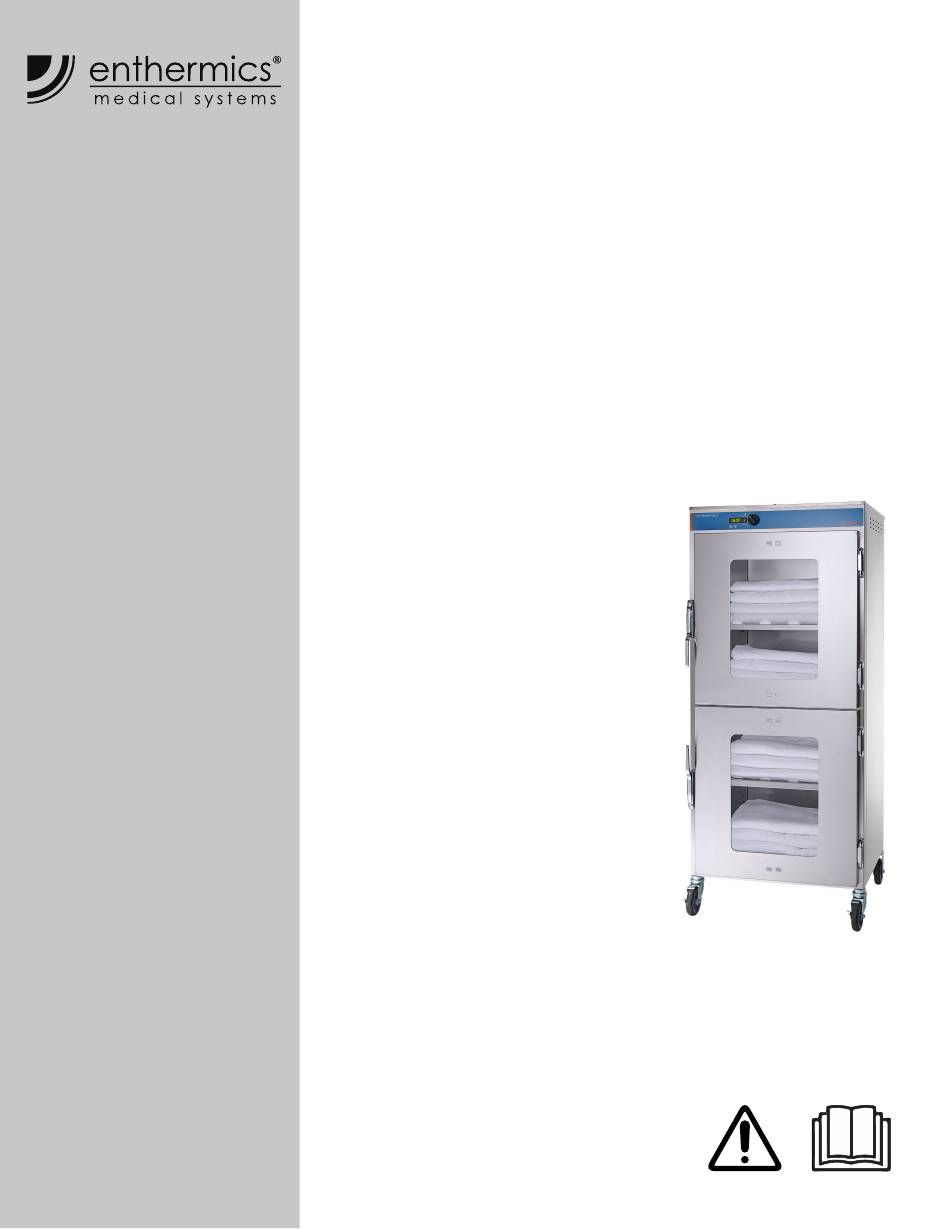

- Page 1 Operator’s Manual Blanket Warmer EC2060 MN-39929 REV.05 2/24...
-
Page 2: Manufacturer's Information
© Copyright 2/24 by Enthermics Medical Systems, Inc. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Enthermics Medical Systems. Trademarks All trademarks referenced in this documentation are the property of their respective owners. -
Page 3: Foreword
Call 800-558-8744 to reach our 24-hour emergency service call center for immediate access to local authorized service agencies outside standard business hours. The emergency service access is provided exclusively for Enthermics Medical Systems, Inc. equipment and is available throughout the United States through Enthermics toll free number. - Page 4 OREWORD This page is intentionally left blank. Blank et Warmer O per ator ’s Manu al MN-3992 9 Rev 5 2 /24 ▪ ▪ ▪ ▪...
-
Page 5: Table Of Contents
Register Your Warmer ......3 Enthermics 24/7 Emergency Repair Service ....3 Safety The Meaning of Signal Words . - Page 6 OREWORD This page is intentionally left blank. Blank et Warmer O per ator ’s Manu al MN-3992 9 Rev 5 2 /24 ▪ ▪ ▪ ▪...
-
Page 7: Safety
AFETY The Meaning of Signal Words This manual contains signal words where needed. These signal words must be obeyed to reduce the risk of death, personal injury, or equipment damage. The meaning of these signal words is explained below. DANGER Danger indicates a hazardous situation which, if not avoided, will result in serious injury or death. -
Page 8: Safety Precautions
Inspection and servicing of internal components must only be performed by qualified service personnel. Only a qualified Enthermics service representative may make modifications to ▪ the warmer. Modifications to the warmer could be hazardous to users and patients. - Page 9 To prevent serious injury, death or property damage, have the warmer inspected ▪ and serviced at least every twelve (12) months by a trained technician. Contact Enthermics for the authorized service partner in your area. ▪ Incident notice Any serious incident that has occurred in relation to the warmer should be ▪...
- Page 10 AFETY This page is intentionally left blank. Blank et Warmer O per ator ’s Manu al MN-3992 9 Rev 5 2 /24 ▪ ▪ ▪ ▪...
-
Page 11: Labels
ABELS Label Locations EC-PHD-004935 Blank et Warmer O pe rator ’ s M a nual MN-399 29 Re v 5 2/24 ▪ ▪ ▪ ▪... - Page 12 ABELS Security seal Electrical warning label Enthermics contact information Quality inspected WARNING WARNING: This product can expose you to chemicals including Formaldehyde, which are known to the state of This product can expose you to chemicals including California to cause cancer. For more information, go to www.p65warnings.ca.gov.
-
Page 13: Specifications
PECIFICATIONS Specification Information Model EC2060 Intended use Warming blankets Net: 347 lb (157 kg) Weight Ship: 404 lb (183 kg) 60–70 blankets Storage cavity capacity (20.6 ft 60°F to 160°F (16°C to 71°C) Temperature range 4” (102mm) from rear Clearance requirements 4”... -
Page 14: Dimension Drawings
PECIFICATIONS Dimension Drawings EC2060 29.7" (754mm) Cord length 8' (2,438mm) (est.) 56.0" (1422mm) 30.2" (767mm) 24.0" (610mm) Adjustable shelf Adjustable shelf 6.8" (172mm) 23.75" (603mm) 26.5" (672mm) Chamber Chamber 32" (811mm) 29.25" (743mm) EC-DIM-004924 Blank et Warmer O per ator ’s Manu al... -
Page 15: Installation
NSTALLATION How to Unpack the Warmer WARNING: Crushing hazard. An unstable warmer can lead to a crushing hazard. Observe your facility’s best practices for moving large equipment. Before you begin Make sure you have: Reviewed the warmer specifications. ▪ An appropriate lifting device and enough personnel to safely move and position ▪... -
Page 16: How To Install The Warmer
The warmer must not be installed in any area where it may be affected by steam, ▪ dripping water, high temperature, or any other severely adverse conditions. Voltages Model EC2060 50/60 50/60 Position the warmer To position the warmer, do the following. -
Page 17: Operation
PERATION Preparing the Warmer for First Use Before you begin CAUTION: Burn hazard. Allow the warmer to cool before cleaning. Do not use: NOTICE abrasive cleaning compounds. ▪ chloride based cleaners. ▪ commercial or household cleaners containing ammonia. ▪ Procedure To prepare the warmer for first use, do the following. -
Page 18: How To Turn On And Turn Off The Warmer
PERATION How to Turn On and Turn Off the Warmer Before you begin The warmer must be connected to electric power. Turning on the To turn on the warmer, do the following. warmer Step Action the power switch to the ON (l) position. EC-TS-004951 The screen turns on. -
Page 19: How To Operate The Blanket Warmer
PERATION How to Operate the Blanket Warmer Before you begin The warmer must be connected to electric power and turned on. WARNING: Personal injury hazard. Do not operate the warmer in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide; in oxygen-enriched environments;... - Page 20 PERATION Continued from previous page To toggle between Factory default is to display Set Temperature in the screen. To toggle the screen Set and Actual between Set Temperature and Actual Temperature, do the following. Temperature With the control ON, press and hold the Temperature Display Button 5 seconds.
-
Page 21: How To Change The Temperature Scale
PERATION How to Change the Temperature Scale Before you begin The warmer must be connected to electric power. To toggle between The factory default is Fahrenheit. To change to Celsius, do the following. Fahrenheit and Celsius Step Action With the control OFF (i.e., The Temperature Control Knob set to the OFF [vertical] position), press and hold... -
Page 22: How To Lock And Unlock The Controller
PERATION How to Lock and Unlock the Controller Before you begin The warmer must be turned on (screen is on). Background The controller can be locked to prevent changes being made to the temperature set-point. Locking the To lock the controller, do the following. controller Step Action... -
Page 23: Maintenance
AINTENANCE Maintenance Schedule NOTE: Do not remove exterior panels from the warmer or attempt repairs. The warmer has no user-serviceable internal components. Only perform routine cleaning and maintenance procedures specifically described in this manual. Daily For daily maintenance, do the following. Check: the air vents in the airflow insert panels are not obstructed (if applicable). - Page 24 AINTENANCE Continued from previous page Yearly For yearly maintenance, do the following. Check: the set-point temperature compared to the actual temperature displayed. ▪ Check the cavity air temperature with a thermocouple placed 1” (25mm) from □ the cavity sensor. Do not allow the thermocouple to touch any surface. Monitor the temperature for approximately one hour in an empty cavity.
-
Page 25: How To Clean The Warmer
AINTENANCE How to Clean the Warmer Before you begin WARNING: Electric shock hazard. Disconnect the warmer from electric power before cleaning. CAUTION: Burn hazard. Allow the warmer to cool before cleaning. Do not use: NOTICE abrasive cleaning compounds. ▪ chloride based cleaners. ▪... - Page 26 AINTENANCE Continued from previous page Yearly cleaning To clean the warmer yearly, do the following. procedure Step Action Make sure that the warmer is disconnected from electric power and cool. Remove the shelves and support assembly from the interior of the warmer.
-
Page 27: Troubleshooting
ROUBLESHOOTING What to do if the Warmer Malfunctions Background The controller sounds an alarm and the screen displays an error code when the warmer malfunctions. Procedure If the warmer malfunctions, do the following. Step Action Rotate the Temperature Control Knob to the OFF (vertical) position. -
Page 28: How To Manually Reset The Warmer
EC-TS-004975 NOTE: If the manual reset warmer button(s) trips again while the warmer is operating, contact Enthermics for the authorized service partner in your area. Result Resume operation of the warmer. Blank et Warmer O per ator ’s Manu al... -
Page 29: Error Codes
ROUBLESHOOTING Error Codes Background This section is provided for the assistance of qualified and trained service technicians only and is not intended for use by untrained or unauthorized service personnel. Failure to observe this precaution may void the warranty. The following error codes apply to the control. Where noted, the following apply: Control Response Description Error beep... - Page 30 ROUBLESHOOTING Continued from previous page Error Error Error Definition Control Response Reset Display Description Comments E-10 Sensor 0 shorted Sensor short Control: Relays OFF Auto-reset when sensor determined Display: Flash error code short resolved Beeper: Error beep E-11 Sensor 0 open Resistance Control: Relays OFF Auto-reset when good...
-
Page 31: Warranty
Enthermics Medical Systems, Inc. warrants to the original purchaser only, that any original part found to be defective in material or workmanship will be replaced with a new or rebuilt part at Enthermics option, subject to provisions hereinafter stated. Warranty Period... - Page 32 No person except an officer of Enthermics is authorized to modify this warranty or to incur on behalf of Enthermics any other obligation or liability in connection with Enthermics equipment.
- Page 36 Enthermics Medical Systems, Inc. An ISO 13485:2016 certified company W164 N9221 Water St Menomonee Falls, WI 53051 262-251-8356 | 800-TO-B-WARM generalinfo@enthermics.com www.enthermics.com Printed in the U.S.A. Specifications are subject to change without notice. Made in the U.S.A...
