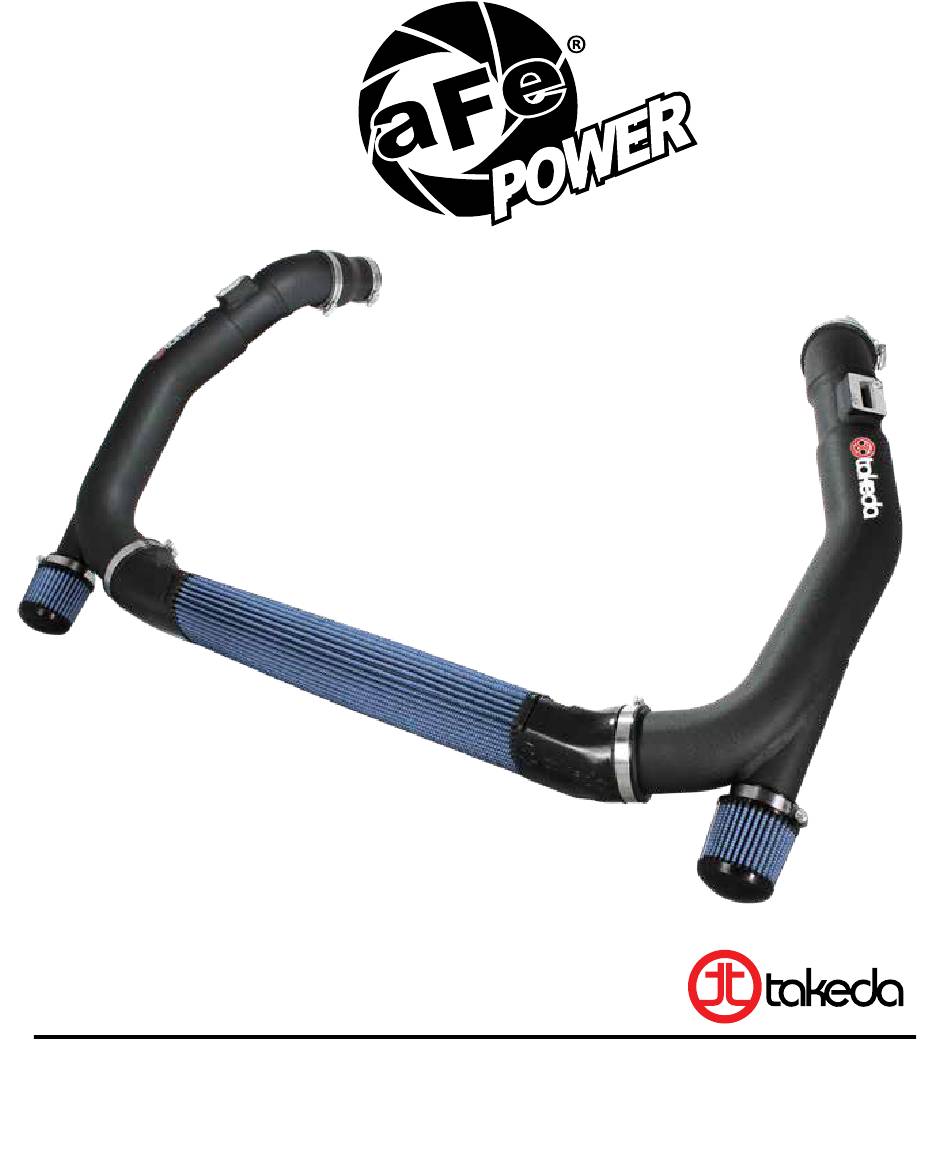

- Page 1 advanced FLOW engineering ® Instruction Manual P/N: TA-3007B by aFe Make: Nissan Model: GT-R (R35) Year: 2009-2019 Engine: V6-3.8L Twin Turbo Note: Includes NISMO.
- Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
- Page 3 aFepower.com Page 3...
- Page 4 ® REMOVAL Figure A Refer to Figure A for steps 1-5 Note: Make sure car is cool before starting this installation to avoid coolant burns. Step 1: Remove 10mm bolt securing the OE housings 1 . Step 2: Disconnect the MAF sensor harness plug from the MAF sensor 2 . Step 3: Remove engine ground wire bolt 3 , pull wire as far back as possible to ease air box removal.
- Page 5 REMOVAL Figure B Refer to Figure B for steps 6 & 7 Step 6: Loosen the clamp on the coupling going to the turbo inlet tube 5 . Step 7: Remove coupling off turbo inlet tube passenger and driver side. aFepower.com Page 5...
- Page 6 ® REMOVAL Figure C Refer to Figure C for steps 8-9 Step 8: Remove the 10 push clips on the on the radiator cover and remove cover out of vehicle. Step 9: Remove the 6 push clips on top of the bumper. Page 6...
- Page 7 REMOVAL Figure D Refer to Figure D for steps 10-13 Step 10: Remove the 10 plugs off of the bottom of the bumper 6 . Step 11: Through the plug openings remove the 10mm bolts 6 . Step 12: Remove the 4 push clips off the fender well covers 7 . Step 13: Pull the fender cover back and remove the 10mm bolt on the bottom edge of the bumper.
- Page 8 ® ® REMOVAL Figure E Refer to Figure E for steps 14-16 Step 14: Remove the amber lights off the bumper sides by inserting a flat head screwdriver and popping them off the metal tabs on passenger and driver side. Step 15: Remove the two 10mm bolts attaching the bumper to the fenders 7 .
- Page 9 REMOVAL Figure F Refer to Figure F for step 17 Step 17: Remove push clip retaining air duct then remove the air duct out of vehicle. aFepower.com aFepower.com Page 9 Page...
- Page 10 ® ® INSTALL Figure G Refer to Figure G for steps 18-19 Step 18: Install silicone couplings with clamps. Only tighten clamp onto the turbo inlet tube for now. Step 19: Slide intake tubes through radiator core support and into couplings. Do not tighten clamps at this time.
- Page 11 INSTALL Figure H Refer to Figure H for steps 13-14 Step 20: Remove MAF sensors from OE air box. Do not discard OE screws. (Make sure not to invert passenger side and driver side MAF sensors) Step 21: Install MAF sensors into Takeda intake tubes using OE screws. aFepower.com aFepower.com Page 9...
- Page 12 ® ® INSTALL Figure I Refer to Figure I for steps 22-24 Step 22: Install Takeda center filter onto intake tubes, make sure it sits in the radiator core support groves properly. Step 23: Install small side filters on to Takeda intake tubes. Step 24: Align tubes with filters and tighten all clamps Page 8 Page 12...
- Page 13 INSTALL Figure J Refer to Figure J for steps 25-28 Step 25: Re-install engine ground cables. Step 26: Re-connect MAF sensor harness to MAF sensor an passenger and driver side. Step 27: Re-install bumper(refer to steps 8-16). Step 28: Your installation is now complete. Thank you for choosing Takeda! aFepower.com aFepower.com Page 9...
- Page 14 ® Blue Squeeze Restore Kit SCORCHER GT Axle-Back Exhaust Pro 5R Air Filter P/N: 90-50501 P/N: TF-9021RM P/N: 77-46102 P/N: 49-36108-C (C/F Tips) 49-36108-P (Pol Tips) Mouse Pad Mascot Decal Oil Filter P/N: 40-10130 P/N: TP-7003D P/N: 44-LF016 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to aFepower.com. Page 14...
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-80639...
