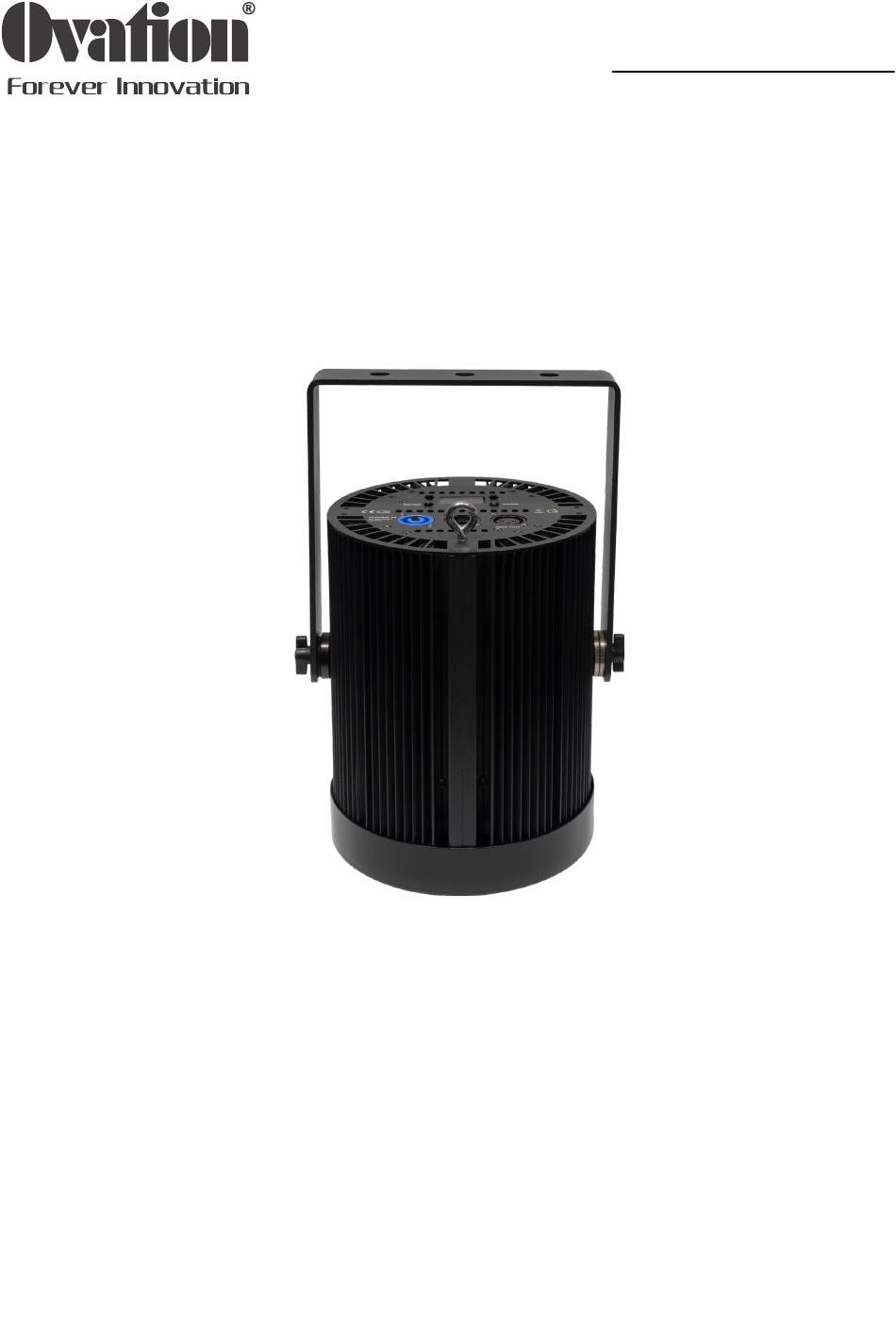

- Page 1 ATMOS 150C 150W LED RGBAL fresnel USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture................4 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................4 Securing with a safety cable ........................4 DMX-512 connection/connection between fixtures ..................5 Power connection ............................5 Operation ���������������������������������������������������������������������������������������������������������������������������������������������... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen Atmos 150C. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Dmx-512 Connection/Connection Between Fixtures
Power connection Power Requirements The Atmos 150C luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire con- tains an auto-ranging power supply. Power linking between fixtures: The fixture with powercon in and out socket. Connect the power out to the power in socket in the next fixture till all are connected. -
Page 6: Operation
Operation Control Menu Map Default setting in bold. MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION INSTRUCTION 001-512 DMX address setting 1 CH 7 CH DMX channel mode 10CH 12CH Program 001-005 Preset programs Auto Mode Speed 001-009 Programs speed 000-255 Red dimmer 0-100% Green... -
Page 7: Universal Dmx Control
In the case of the Atmos 150C, which is 1/7/10/12 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 8: Fixture Cleaning
10 Channels Mode Function Function Control Dimmer 000-255: 0-100% Dimmer Dimmer fine 000-255: 0-100%Dimmer fine 000-255: Red dimmer 0-100% Green 000-255: Green dimmer 0-100% Blue 000-255: Blue dimmer 0-100% Amber 000-255: Amber dimmer 0-100% Lime 000-255: Lime dimmer 0-100% Colour mixing 000-255: Colour mixing Reserve colour temperature 000-255: Reserve colour temperature... -
Page 9: Fuse Replacement
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model Atmos 150C Power supply: AC100-240V, 50/60Hz Light source: 150W RGBAL LED Field angle: 50°... - Page 10 www.hotion.com...
- Page 11 www.hotion.com...
- Page 12 www.hotion.com...
