C19
C19

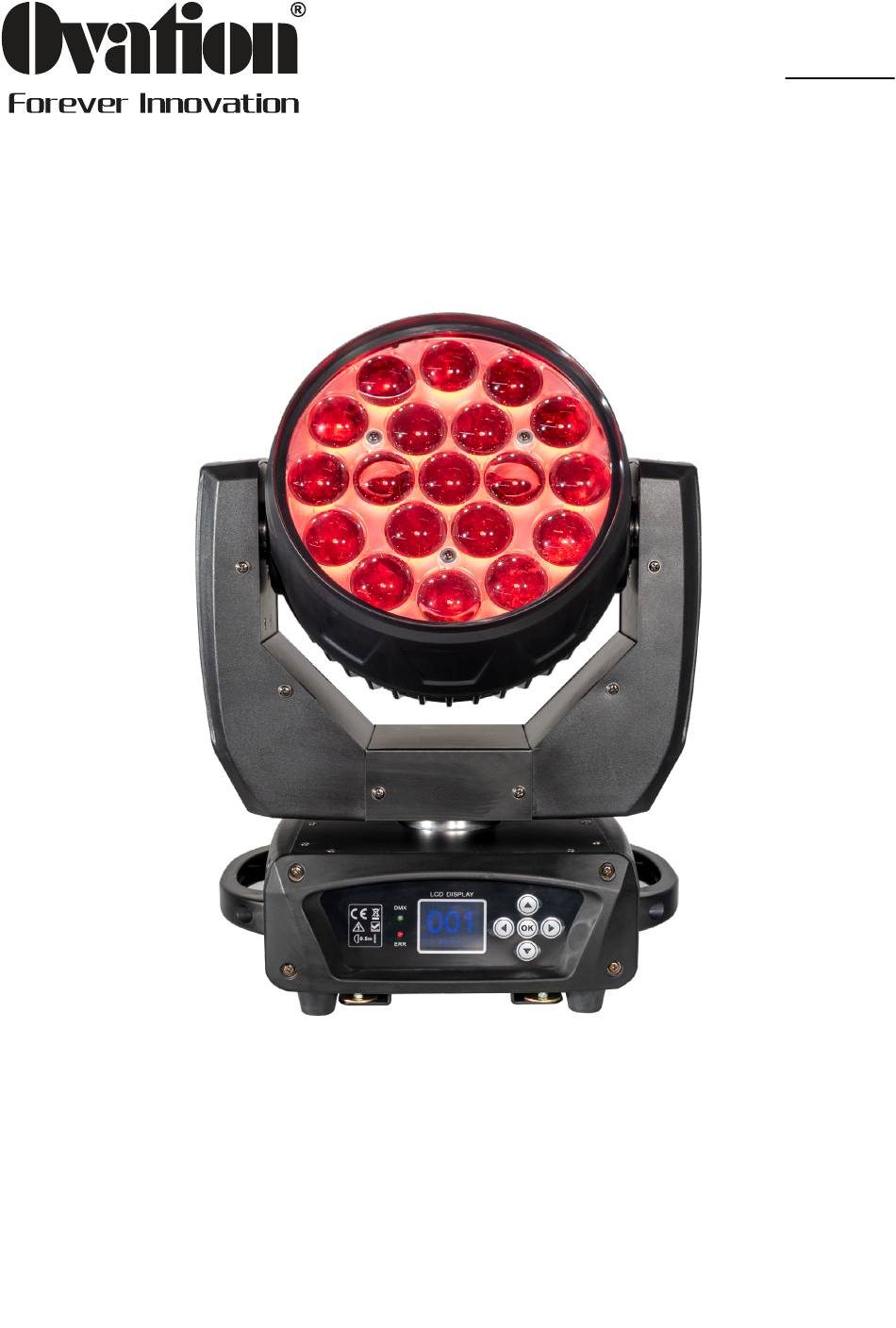

19 x 15W LED aura moving head wash
USER MANUAL
Keep this manual for future needs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ovation C19

  • Page 1 19 x 15W LED aura moving head wash USER MANUAL Keep this manual for future needs...
  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture ���������������������������������������������������������������������������������4 Fastening the fixture to a flat surface �����������������������������������������������������������������������������������������������������������4 Mounting the fixture on a truss ���������������������������������������������������������������������������������������������������������������������4 Securing with a safety cable �������������������������������������������������������������������������������������������������������������������������5 DMX-512 connection/connection between fixtures ������������������������������������������������������������������������������������5 Operation ���������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen C19. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.
  • Page 4: Installation

    English C19 | LED aura moving head wash This device has left our premises in absolutely perfect condition. Always disconnect from the mains, when the device is not in use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts inside the device.
  • Page 5: Securing With A Safety Cable

    English C19 | LED aura moving head wash Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails.
  • Page 6: Operation

    Yellow/green Earth(Ground) Operation The C19 can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the dif-ferences in the operating modes�...
  • Page 7: Universal Dmx Control

    In the case of the C19, which is 14/25 channels fixture. If you set, for example, the address in the 14 channel mode to channel 15, the device will use the channel 15 to 28 for control.
  • Page 8: Control Menu Map

    English C19 | LED aura moving head wash Control Menu Map Default settings=bold print Main Menu Level 1 Level 2 Level 3 Function Address 001 - 512 DMX address setting DMX512 Auto1 Auto2 Run mode Sound1 Sound2 25 channel mode...
  • Page 9: Dmx Protocol

    English C19 | LED aura moving head wash DMX Protocol Function DMX value Function Control 14 CH mode Beam electronic shutter effect 000 - 019 Shutter closed 020 - 024 Shutter open 025 - 064 Strobe 1: Synchronous strobe (fast to slow)
  • Page 10 English C19 | LED aura moving head wash 125 - 249 slightly2 250 - 255 No function Illuminate display 1. If DMX Reset is disabled in the menu, a reset command can only be executed if channel 2 is set to 232 and channel 1 is set to zero.
  • Page 11 English C19 | LED aura moving head wash 240 - 244 Medium 245 - 249 Slow 250 - 255 Open 000 - 255 Red dimming from 0 - 100% Green 000 - 255 Green dimming from 0 - 100% Blue...
  • Page 12 English C19 | LED aura moving head wash 075 - 089 No function 090 - 094 Calibrated color output mode COLOR CALIB = ON3 095 - 099 No function 100 - 104 Raw color output mode COLOR CALIB = OFF3...
  • Page 13 English C19 | LED aura moving head wash 160 - 164 Color 31 165 - 169 Color 32 170 - 174 Color 33 175 - 179 Open 180 - 229 Color switching clockwise (fast to slow) 230 - 234 Open...
  • Page 14 English C19 | LED aura moving head wash FX2 adjust Zero to maximum • If no sync set on channel 19, adjusts FX2 • If sync set on channel 19, has no effect 000 - 009 Empty 010 - 012...
  • Page 15: Fixture Cleaning

    English C19 | LED aura moving head wash 205 - 209 Shutter open 210 - 224 Stroboscopic 9: Sine wave strobe (fast to slow). 225 - 229 Shutter open 230 - 244 Stroboscopic 10: Burst flash (fast to slow). 245 - 255...
  • Page 16: Fuse Replacement

    English C19 | LED aura moving head wash on a monthly basis. Periodic cleaning will ensure longevity, and crisp output. To clean the fixture: 1� Disconnect the fixture from power and allow it to cool for at least 10 minutes.
  • Page 17: Specifications

    English C19 | LED aura moving head wash Specifications Model Power supply: AC100 - 240V, 50/60Hz Light source: 19 x 15W RGBW LED Power consumption: 230Watt max. Color temperature: Adjustable Pan: 540° Tilt: 270° Zoom: 8° - 50° Power connection: PowerCON in &...
  • Page 18 English C19 | LED aura moving head wash hotion.com Version 1.1...
  • Page 19 English C19 | LED aura moving head wash hotion.com Version 1.1...
