SPACE MINI FRESNEL 50T
USER
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPACE MINI FRESNEL 50T and is the answer not in the manual?

Questions and answers

Summary of Contents for Ovation SPACE MINI FRESNEL 50T

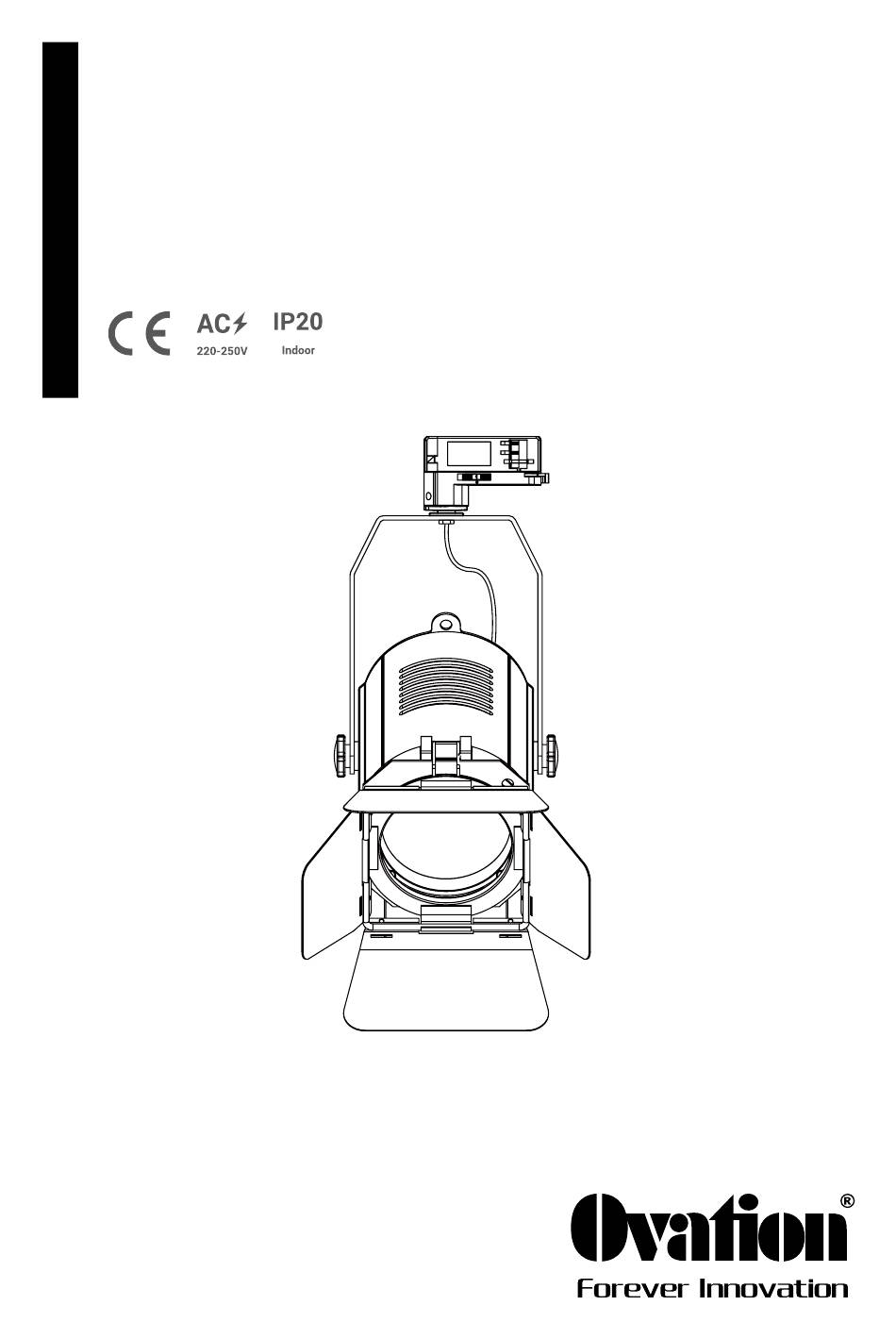

  • Page 1 SPACE MINI FRESNEL 50T USER MANUAL...
  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 4 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture.................4 Iinstruction Installation of 3 Circuits Track System ..................5 3-circuit Track ..............................5 Track clamp mounting instruction ........................6 Mounting .................................7 Securing wit h a safety cable ........................7 DMX-512 connection/connection between fixtures ..................8...
  • Page 3: Caution

    Space Track Caution! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Avoid looking directly into the light source! Wear protective glasses and other PPE (personal protective equipment) when working on or near the fixture.
  • Page 4: Overview

    Space Track dealers. Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface.
  • Page 5: Iinstruction Installation Of 3 Circuits Track System

    Space Track fixture if the primary fastening method fails. Iinstruction Installation of 3 Circuits Track System Only be used with a voltage of 220V-250V! 3-circuit Track Track clamp mounting instruction hotion.com Ver 1.0...
  • Page 6: Mounting

    Space Track Mounting hotion.com Ver 1.0...
  • Page 7: Securing Wit H A Safety Cable

    Space Track Track plane Flange Step 1: Unlock the track Step 2: The adaptor flange is in the adapter before installation same direction with the track plane. (Bottom view) Lock Step 3: Lock the hand grip Step 4: select the power knob: phase 1 / 2/ 3.
  • Page 8: Operation

    Space Track Occupation of the XLR-connection: DMX OUT DMX IN 1. Group 1. Group 2. Signal (-) 2. Signal (-) 3. Signal (+) 3. Signal (+) If you are using controllers with this occupation, you can connect the DMX-output of the controller di- rectly with the DMX-input of the first fixture in the DMX-chain.
  • Page 9: Addressing

    Space Track The Space Mini Fresnel 40Z can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Addressing All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals.
  • Page 10: Zoom

    Space Track Zoom This function allows you to adjust the beam width of the fixture. Step 1: Loosen the zoom buttons on the side of the device. Step 2: Adjust the zoom by sliding the back lenshousing forward or backward. Step 3: Tighten the zoom buttons.
  • Page 11: Control Menu Map

    Space Track Control Menu Map MENU SUB MENU OPERATION Addr d001-d512 RDM/DMX address CHnL Channel mode Strb S.01-s.20 Strobe with spead increasing uL-- u.000-u.255 WW dimmer CL-- C.000-C.255 CW dimmer 000-255 Rotary control of dimmer nod.0 Dimmer speed 0 (no delay) nod.1 Dimmer speed 1 nodE...
  • Page 12: Fixture Cleaning

    Space Track 5 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-010: No func. Color temperature 011-255: 2700K~6500K color temperature Warm white 000-255: WW 0-100% dimmer Cold white 000-255: CW 0-100% dimmer Strobe 000-255: Strobe with speed increasing Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output.
  • Page 13: Technical Specifications

    Space Track Technical specifications Model Mini Fresnel 50T zoom Power supply: AC100-240V, 50/60Hz Light source: 50W WW+50W CW tunable LED Color temperature: 2700K - 6500K Color Rendition: CRI 95, R9≥90 Zoom range: 25° - 80° manually Power connection: PowerCON in Signal connection: 3-pin XLR in&out DMX channels:...
  • Page 14 Space Track hotion.com Ver 1.0...
