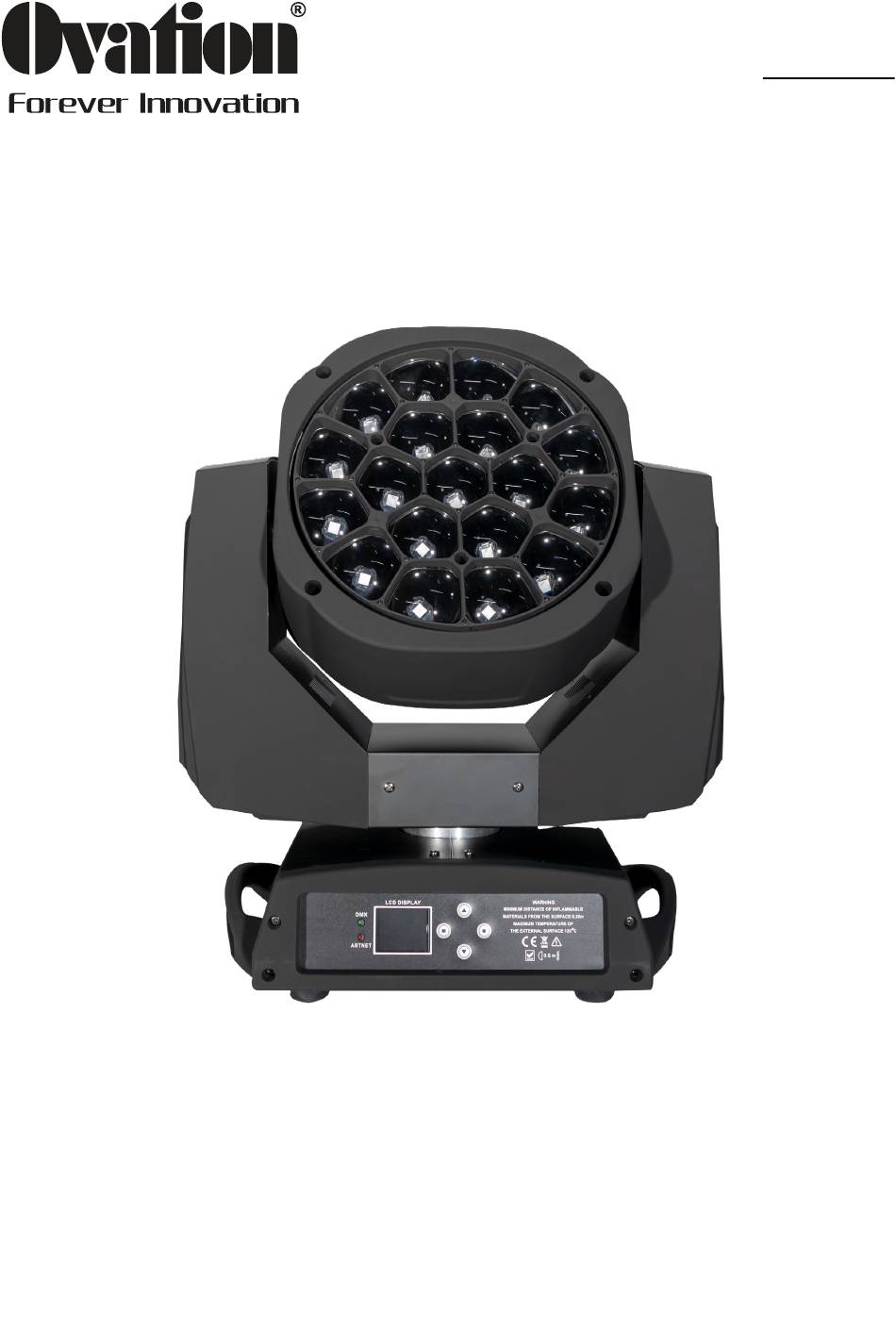

19 x 15W LED Beam/Wash Hawkeye
USER MANUAL
Keep This Manual For Future Needs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ovation B-19

  • Page 1 B-19 B-19 19 x 15W LED Beam/Wash Hawkeye USER MANUAL Keep This Manual For Future Needs...
  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Fxiture overview ����������������������������������������������������������������������������������������������������������������������������������� 4 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture ���������������������������������������������������������������������������������4 Fastening the fixture to a flat surface �����������������������������������������������������������������������������������������������������������5 Mounting the fixture on a truss ���������������������������������������������������������������������������������������������������������������������5 Securing with a safety cable �������������������������������������������������������������������������������������������������������������������������6 DMX-512 connection/connection between fixtures ������������������������������������������������������������������������������������6 Operation ���������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen B-19. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.
  • Page 4: Fxiture Overview

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye This device has left our premises in absolutely perfect condition. Always disconnect from the mains, when the device is not in use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts inside the device.
  • Page 5: Fastening The Fixture To A Flat Surface

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye fails� Fastening the fixture to a flat surface The fixture can be fastened to a hard, fixed, flat surface that is oriented at any angle. Ensure that the surface and all fasteners used can support at least 10 times the weight of all fixtures and equipment to be installed on it�...
  • Page 6: Securing With A Safety Cable

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails.
  • Page 7: Operation

    Yellow/green Earth(Ground) Operation The B-19 can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the dif-ferences in the operating modes�...
  • Page 8: Auto Run Mode

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye Auto run mode In this mode, you can run internal program without a controller. 1� Press the MENU button until “RUN” is displayed, and press ENTER. 2� Press the UP or DOWN button so that “Run mode” is displayed�...
  • Page 9: Dmx Protocol

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye 000 - 255 TILT 000 - 255 ROTATION 000 - 255 ZOOM 000 - 255 000 - 255 Manual Set Manual settings STROBE 000 - 255 DIM_R 000 - 255 DIM_G...
  • Page 10 English B-19 | 19 x 15W LED Beam/Wash Hawkeye 23 CH mode Function DMX value Function Control 000-255 Pan movement control Pan fine 000-255 Pan fine control Tilt 000-255 Tilt movement control Tilt fine 000-255 Pan fine control Pan/Tilt speed...
  • Page 11 English B-19 | 19 x 15W LED Beam/Wash Hawkeye Tilt 000-255 Tilt movement control Tilt Fine 000-255 Pan fine control Blank 000-255 No function 000-250 No function Reset 251-255 5 seconds to reset Zoom 000-255 Zoom from narrow to wide beam...
  • Page 12 English B-19 | 19 x 15W LED Beam/Wash Hawkeye 000-127 0 to 60 degree Zoom rotation 128-191 Unlimited clockwise rotation from fast to slow 192-255 Unlimited anticlockwise rotation from slow to fast Red dimmer 1 000-255 LED 1 red dimmer...
  • Page 13 English B-19 | 19 x 15W LED Beam/Wash Hawkeye Shape Dimmer 000-255 Shape dimmer 0-100% Background Dimmer 000-255 Background dimmer 0-100% Shape Transition 000-255 Shape change Shape Offset 000-255 Shape offset Foreground strobe 000-255 Foreground strobe control Background strobe 000-255...
  • Page 14 English B-19 | 19 x 15W LED Beam/Wash Hawkeye White dimmer 1 000-255 LED 1 white dimmer … ��� ��� ��� … ��� ��� ��� Red dimmer 19 000-255 LED 19 red dimmer Green dimmer 19 000-255 LED 19 green dimmer...
  • Page 15: Fixture Cleaning

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e.
  • Page 16: Specifications

    English B-19 | 19 x 15W LED Beam/Wash Hawkeye Specifications Model B-19 Power supply: AC100 - 240V, 50/60Hz Light source: 19 x 15W RGBW LED Power consumption: 285Watt max. Color temperature: Adjustable Pan: 540° Tilt: 270° Zoom: 4° - 60°...
