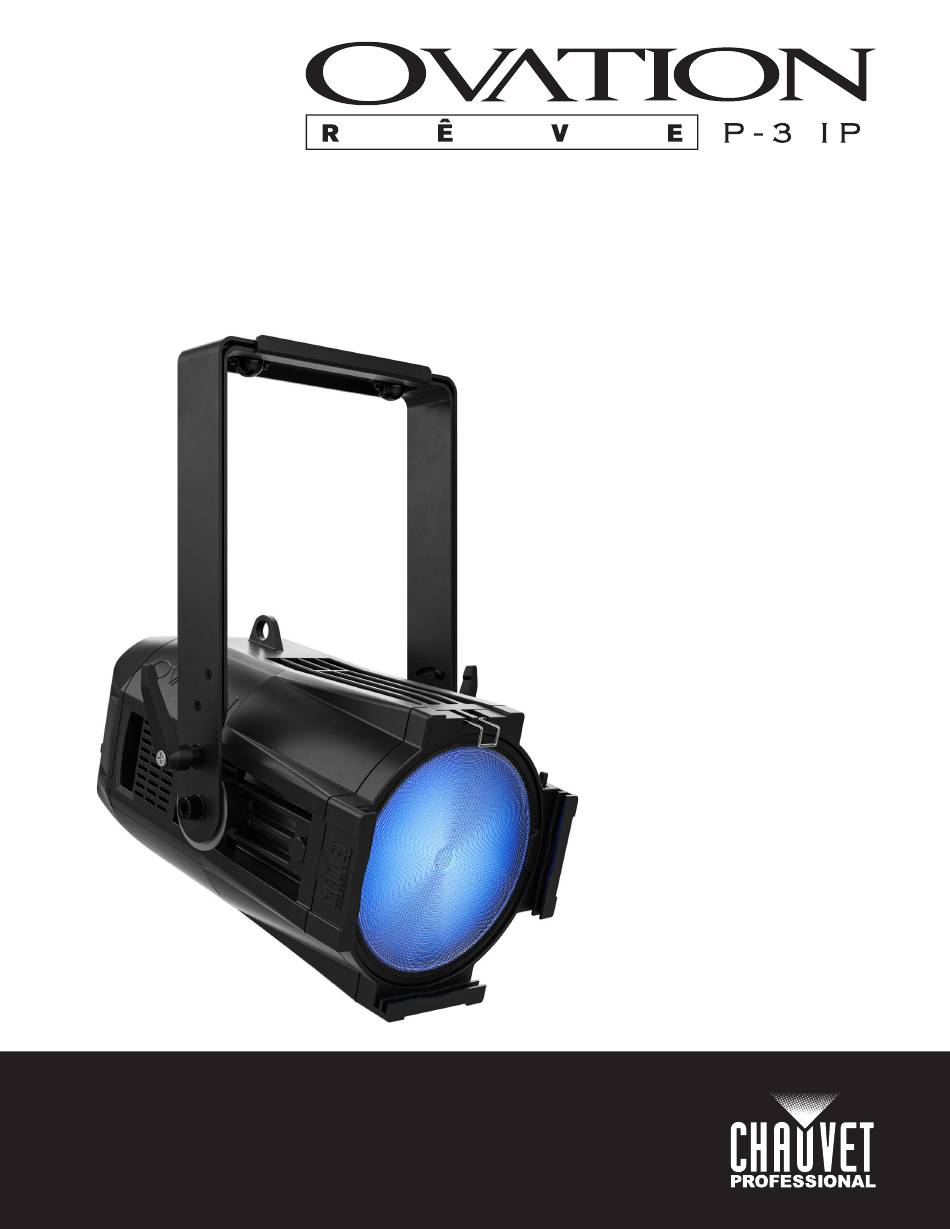

  • Page 1 User Manual Model ID: OVATIONREVEP3IP...
  • Page 2 Edition Notes The Ovation Rêve P-3 IP User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation Rêve P-3 IP as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Ovation, and Ovation Rêve are registered trademarks or trademarks of Chauvet &...
  • Page 3: Table Of Contents

    Control Channel Assignments and Values............ 17 Ch / 13 Ch2 / 13 Ch1 / 11 Ch / 7 Ch / 5 Ch / 4 Ch ........16 HSV........................17 1 Ch........................17 Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 4 Pulse Width Modulation ..................19 Fan Mode ......................20 Display Backlight Timer..................20 Information ......................20 Factory Reset..................... 20 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 5: Before You Begin

    Any reference to data or power connections in this manual assumes the use of Seetronic IP-rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 6: Fcc Statement Of Compliance

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 7: Safety Notes

    • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 8: Introduction

    CRI. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated “red shift” for a tungsten feel. The Ovation Rêve P- 3 IP also features several dimming curves and a virtually silent operation with fan-off modes. The Ovation Rêve P-3 IP can seamlessly transition from captivating a wide range of saturated colors in class-...
  • Page 9: Product Dimensions

    11.81 in 300 mm 16.85 in 428 mm 0.59 in 15 mm 13.7 in 349 mm 7.56 in 8.27 in 192 mm 210 mm 6.3 in 5.5 in 160 mm 140 mm Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 10: Setup

    4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link Ovation Rêve P-3 IP products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz...
  • Page 11: Dmx Linking

    DMX controller. DMX Personalities The Ovation Rêve P-3 IP uses a 3-pin or 5-pin DMX data connection for the 1 Ch, 4 Ch, 5 Ch, 7 Ch, 11 Ch, 13 Ch1, 13 Ch2, 17 Ch, and HSV DMX personalities. •...
  • Page 12: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Ovation Rêve P-3 IP comes with an omega bracket. The user can directly attach a mounting clamp (sold separately) to that bracket. Make sure the clamp is capable of supporting the weight of this product.
  • Page 13: Changing The Lens

    Setup Changing the Lens The Ovation Rêve P-3 IP comes with 4 interchangeable lenses with different beam angles (Very Narrow, Narrow, Medium, and Wide). To change the lens: 1. Push and hold the locking tab out from the product. 2. Pull the installed lens out by the flap.
  • Page 14: Operation

    Sets fixture into Focus Mode, which takes the unit to full power for easy focusing without <FOCUS> changing any other fixture settings. Press again to release from Focus Mode. Menu Map Refer to the Ovation Rêve P-3 IP product page on www.chauvetprofessional.com for the latest menu map. Main Level...
  • Page 15 4500K temperature. Refer to the Color Temperature 4600K Chart for specific values. -25–25 4700K 4800K 4900K 5000K 5100K 5200K 5300K 5400K 5500K 5600K 5700K 6000K 6500K 7000K 7500K 8000K Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 16 Sets the fan to silent Turns off display backlight after 10 seconds Turns off display backlight after 30 seconds Back Light 2Min Turns off display backlight after 2 minutes Always On Display backlight remains on Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 17: Dmx Configuration

    _ _ _ _ _ Selects an update file for this and connected _.CHL Upgrade Multiple Fixture Ovation Rêve P-3 IP products, or shows “No such file!” _ _ _ _ _ Selects an update file for other connected _.CHL Other Fixture Type products, or shows “No such file!”...
  • Page 18: Virtual Color Wheel

    Operation Virtual Color Wheel The Ovation Rêve P-3 IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.
  • Page 19: Color Temperature Chart

    4301–4399K 4400K 119  124 4401–4499K 4500K 126  131 4501–4599K 4600K 133  138 4601–4699K 4700K 140  145 4701–4799K 4800K 147  152 4801–4899K 4900K 154  159 4901–4999K 5000K Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 20: Control Channel Assignments And Values

    000  255 0–100% 000  010 No function – – 13 Strobe 011  255 Strobe, slow to fast – – – 14 Virtual color wheel 000  255 See Virtual Color Wheel Chart Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 21: Hsv

    Percent/Setting Dimmer 000  255 0–100% Saturation 000  255 0–100% Value 000  255 0–100% 1 Ch Channel Function Value Percent/Setting Dimmer 000  255 0–100% (color set through display menu) Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 22: Standalone Configuration

    3. Select Fade Speed 1–4 (from fast to slow) or Off (to turn off the fade transition between colors). Auto Show To select an automatic program: 1. Go to the Auto Show main level. 2. Select the desired auto program (Auto 1–5). 3. Set the Speed value (1–100). Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 23: Settings Configuration

    2. Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profile This setting determines how fast the output of the Ovation Rêve P-3 IP changes when the output value is modified. It provides four different options to simulate the dimming curve of an incandescent lighting product.
  • Page 24: Fan Mode

    Display Backlight Timer To set the amount of time the backlight on the Ovation Rêve P-3 IP’s display stays on after the last button is pressed on the control panel: 1.
  • Page 25: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 26: Technical Specifications

    1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV Ordering Product Name Item Name Item Code UPC Number Ovation Rêve P-3 IP OVATIONREVEP3IP 01031928 781462222765 UL 1573 CSA C22.2 No. 166 E113093 Ovation Rêve P-3 IP User Manual Rev. 1...
  • Page 27: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation Rêve P-3 IP User Manual Rev. 1...
