PIONEER 200C ZOOM
PIONEER 200C ZOOM
200W RGBW LED fresnel with zoom
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIONEER 200C ZOOM and is the answer not in the manual?

Questions and answers

Summary of Contents for Ovation PIONEER 200C ZOOM

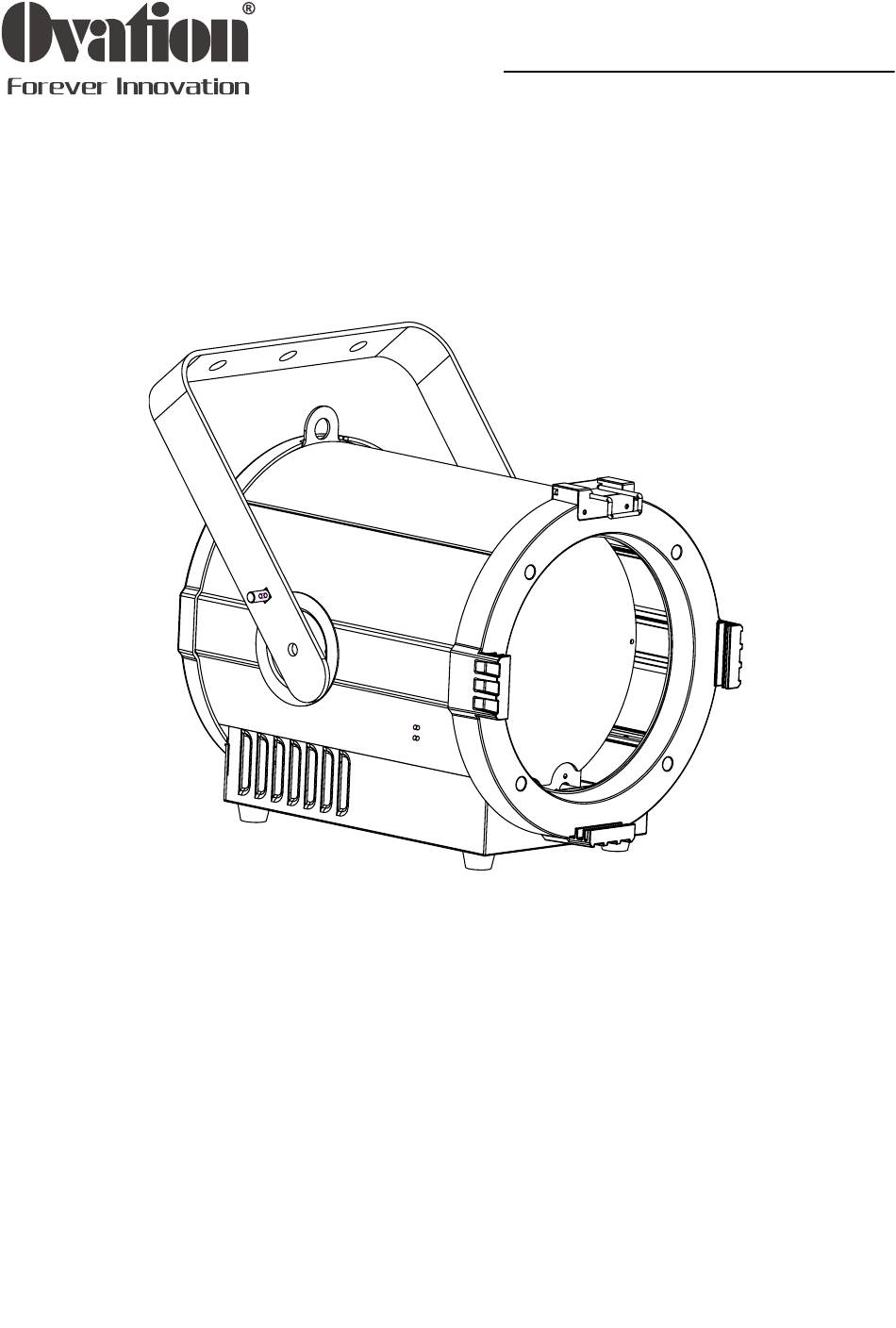

  • Page 1 PIONEER 200C ZOOM PIONEER 200C ZOOM 200W RGBW LED fresnel with zoom USER MANUAL...
  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture.................4 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................5 Securing with a safety cable .........................5 DMX-512 connection/connection between fixtures ..................5 Power connection ............................6...
  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen Pioneer 200C zoom. You will see you acquired a powerful and versatile de- vice. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation.
  • Page 4: Installation

    Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over.
  • Page 5: Mounting The Fixture On A Truss

    low with a securely anchored safety cable that will hold the fixture if the primary fastening method fails. Mounting the fixture on a truss The fixture can be clamped to a truss or similar rigging structure in any orientation. When installing the fixture hanging vertically down, you can use an open-type clamp such as a G-clamp.
  • Page 6: Power Connection

    Earth(Ground) Operation The Pioneer 200C zoom can operate in different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operat- ing modes.
  • Page 7: Addressing

    In the case of the Pioneer 200C zoom, which is 3/4/5/6/12 channels fixture. If you set, for example, the address in the 3 channel mode to channel 4, the device will use the channel 4 to 7 for control.
  • Page 8: Dmx Protocol

    With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful when the device is installed in a remote area. Each Pioneer 200C zoom has a factory set RDM UID (unique identification number). DMX Protocol...
  • Page 9 12 Channels Mode Function Function Control 091-100: Auto8 101-110: Auto9 111-120: Auto10 121-255: No function CH10 Auto program speed 000-255: Speed increasing 000-005: Menu setting 006-055: Dimmer speed 0 (no delay) 056-105: Dimmer speed 1 CH11 Dimmer mode 106-155: Dimmer speed 2 156-205: Dimmer speed 3 206-255: Dimmer speed 4 (slowest speed) 000-009: ID1-ID66...
  • Page 10: Id Address Selection(Stag-12 Channels Mode)

    4 Channels Mode Function Function Control Green 000-255: 0-100% Green dimmer Blue 000-255: 0-100% Blue dimmer White 000-255: 0-100% White dimmer AR2�D 5 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-255: 0-100% Red dimmer Green 000-255: 0-100% Green dimmer Blue 000-255: 0-100% Blue dimmer White...
  • Page 11: Fixture Cleaning

    Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model Pioneer 200C zoom Power supply: AC100-240V, 50/60Hz Light source: 200W LED www.hotion.com...
  • Page 12 Color mixing: RGBW color mixing Zoom scale: 15° - 60° motorized Power connection: PowerCON in & out Fuse: F5A, 250V Maximum power linking: 8 units Signal connection: 3-pin XLR in & out(5-pin optional) ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), DMX channels: STAG(12CH) Control mode: RDM, DMX, Master-slave...
