Summary of Contents for Ovation Event 100T

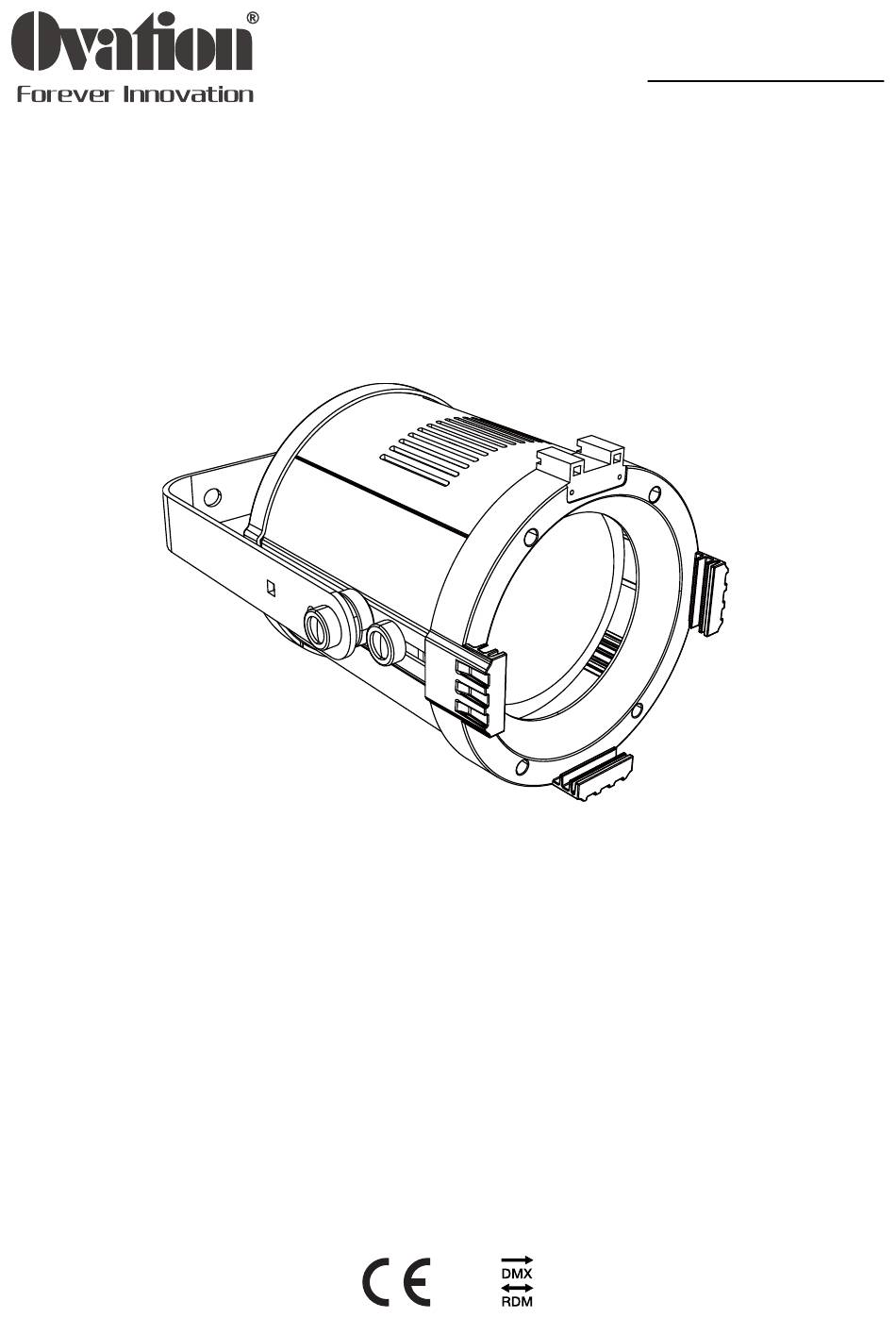

- Page 1 Event 100T 100W tunable LED fresnel zoom USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture.................4 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................4 Securing with a safety cable .........................4 DMX-512 connection/connection between fixtures ..................5 Power connection ............................5 Operation ���������������������������������������������������������������������������������������������������������������������������������������������... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen Event 100T. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Dmx-512 Connection/Connection Between Fixtures
Signal (–) and Signal (+) into a 5-pin XLR-plug and plug it in the DMX-output of the last fixture. Power connection Power Requirements The Event 100T luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire con- tains an auto-ranging power supply. hotion.com V1.0... -
Page 6: Operation
Earth(Ground) Operation The Event 100T can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operat- ing modes. -
Page 7: Zoom
Zoom This function allows you to adjust the beam width of the fixture. Step 1: Loosen the zoom buttons on the side of the device. Step 2: Adjust the zoom by sliding the back lenshousing forward or backward. Step 3: Tighten the zoom buttons. Control Menu Map MENU SUB MENU... -
Page 8: Dmx Protocol
MENU SUB MENU OPERATION 2700K 3000K 3200K 3600K 4000K 4200K Color temperature preset 4500K 4800K 5200K 5600K 6000K nod.0 Dimmer speed 0 (no delay) nod.1 Dimmer speed 1 nodE nod.2 Dimmer speed 2 nod.3 Dimmer speed 3 nod.4 Dimmer speed 4 (slowest speed) tEnP -25~100 Fixture temperature... -
Page 9: Fixture Cleaning
5 Channels Mode Function Function Control 000-009: no function 010-019: 2700K 020-029: 3000K 030-039: 3200K 040-049: 3600K 050-059: 4000K CTO mode 060-069: 4200K 070-079: 4500K 080-089: 4800K 090-099: 5200K 100-109: 5600K 110-119: 6000K 120-255: no function Warm white 000-255: WW 0-100% dimmer Cold white 000-255: CW 0-100% dimmer Strobe... -
Page 10: The Fixture Does Not Work, No Light
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model Event 100T Power supply: AC100-240V, 50/60Hz Light source: 100W tunable LED Color temperature:... - Page 11 hotion.com V1.0...
- Page 12 hotion.com V1.0...
