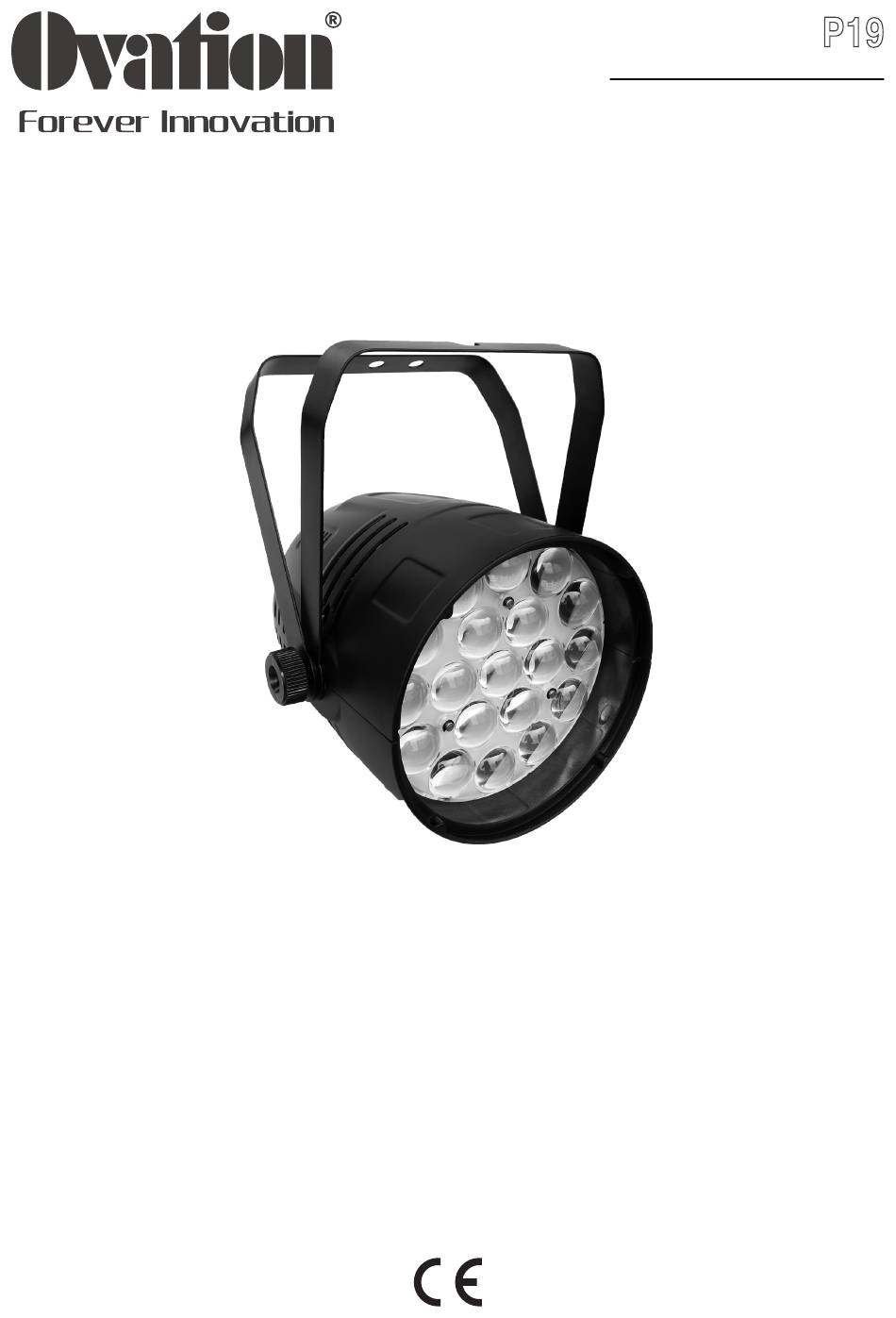

- Page 1 19 x 15W LED ZOOM PAR USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview.........................3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... DMX-512 connection/connection between fixtures ................ -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen P19. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. -
Page 4: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Power Connection
Yellow/green Earth(Ground) Operation The P19 can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating V1.0... -
Page 6: Addressing
In the case of the P19, which is 32/10/10/5/32 channels fixture. If you set, for example, the address in the 5 channel mode to channel 6, the device will use the channel 6 to 10 for control. -
Page 7: Dmx Protocol
Green 000-255 Blue 000-255 White 000-255 Clours 000-255 Zoom 000-255 Strobe 000-255 Dimmer 000-255 RESET All reset Yes/No Reset DMX Protocol Mode1 (32 CH) Value Function Special functions 000-49 Reserved 050-179 Reserved 180-189 Zoom Reserved 190-255 Reserved Red(8bit)-zone 1 000-255 Red LEDs saturation control (0-100%) Red fine (16 bit) - zone 1 000-255... - Page 8 Mode1 (32 CH) Value Function Green (8 bit) - zone 3 CH20 000-255 Green LEDs saturation control (0-100%) Green fine (16 bit) - zone 3 CH21 000-255 Fine green LEDs saturation control Blue (8 bit) zone 3 CH22 000-255 Blue LEDs saturation control (0-100%) Blue fine (16 bit) zone 3 CH23 000-255...
- Page 9 Mode1 (32 CH) Value Function Set value on Virtual colour wheel 096-111 Zone effects+rainbow effects speed control, slow--> fast Zone effects+rainbow effects speed control, fast--> slow 112-127 /opposite direction/ Opening pulses in sequences from slow--> fast (All zones 128-143 together) Closing pulses in sequences from fast-->...
- Page 10 Mode 2 (16 CH) Value Function 007-009 White 4200 K 010-012 White 5600 K 013-015 White 8000 K Blue (Blue=full, Red+Green+White=0) 017-055 Red=0, Green->up,Blue =full, White=0 Light Blue (Red=0, Green=full, Blue =full, White=0) 057-095 Red=0, Green=full, Blue->down, White=0 Green (Red=0, Green=full, Blue =0, White=0) 097-134 Red->up, Green=full, Blue=0, White=0 Yellow (Red=full, Green=full, Blue=0, White=0)
- Page 11 190-255 Reserved Red(8 bit)-all zones 000-255 Red LEDs saturation control (0-100%) Green(8 bit)-all zones 000-255 Green LEDs saturation control (0-100%) Blue(8 bit)-all zones 000-255 Blue LEDs saturation control (0-100%) White(8 bit)-all zones 000-255 White LEDs saturation control (0-100%) Color temperature No function Colour temperature correction from 2000K to 2700K(menu item 001-255...
- Page 12 Closing pulses in sequences from fast--> slow (All zones 144-159 together) 160-175 Random strobe effect from slow--> fast (random zone) Random strobe effect from slow--> fast (random zone +random 176-191 strobe) 192-223 Random strobe effect from slow --> fast (All zones together) 224-255 Shutter open Dimmer (8 bit)
- Page 13 Zone effects+rainbow effects speed control, fast--> slow 112-127 /opposite direction/ Opening pulses in sequences from slow--> fast (All zones 128-143 together) Closing pulses in sequences from fast--> slow (All zones 144-159 together) 160-175 Random strobe effect from slow--> fast (random zone) Random strobe effect from slow-->...
- Page 14 No function 001-002 White 2700 K White 2700 K (Halogen lamp mode*) 004-005 White 3200 K White 3200 K (Halogen lamp mode*) 007-009 White 4200 K 010-012 White 5600 K 013-015 White 8000 K Blue (Blue=full, Red+Green+White=0) 017-055 Red=0, Green->up,Blue =full, White=0 Light Blue (Red=0, Green=full, Blue =full, White=0) 057-095 Red=0, Green=full, Blue->down, White=0...
-
Page 15: Fixture Cleaning
White (8 bit) - zone 2 CH23 000-255 White LEDs saturation control (0-100%) White fine(16 bit) - zone 2 CH24 000-255 Fine white LEDs saturation control Red (8 bit) - zone 3 CH25 000-255 Red LEDs saturation control (0-100%) Red fine (16 bit) - zone 3 CH26 000-255 Fine red LEDs saturation control... -
Page 16: Technical Specifications
Technical specifications Model Type LED ZOOM PAR Power supply: AC100-240V, 50/60Hz Light source: 19 x 15W RGBW LED LED color: RGBW LED Zoom range: 15°~60° Power connection: PowerCON in&out Signal connection: 3-pin XLR in&out(5-pin optional) DMX channels: 32/16/10/5/32 Control mode: DMX, Auto program, Sound, Master-slave Housing: Colour black, Aluminum...
