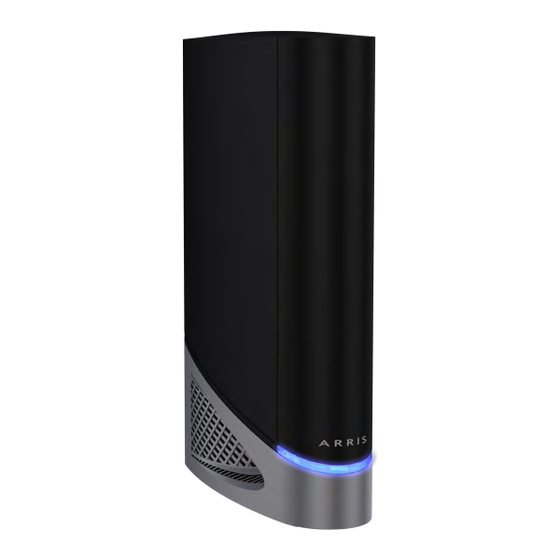

Arris SURFboard G54 DOCSIS 3.1 Wi-Fi User Manual

Arris SURFboard G54 DOCSIS 3.1 Wi-Fi User Manual

Cable modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
®
®

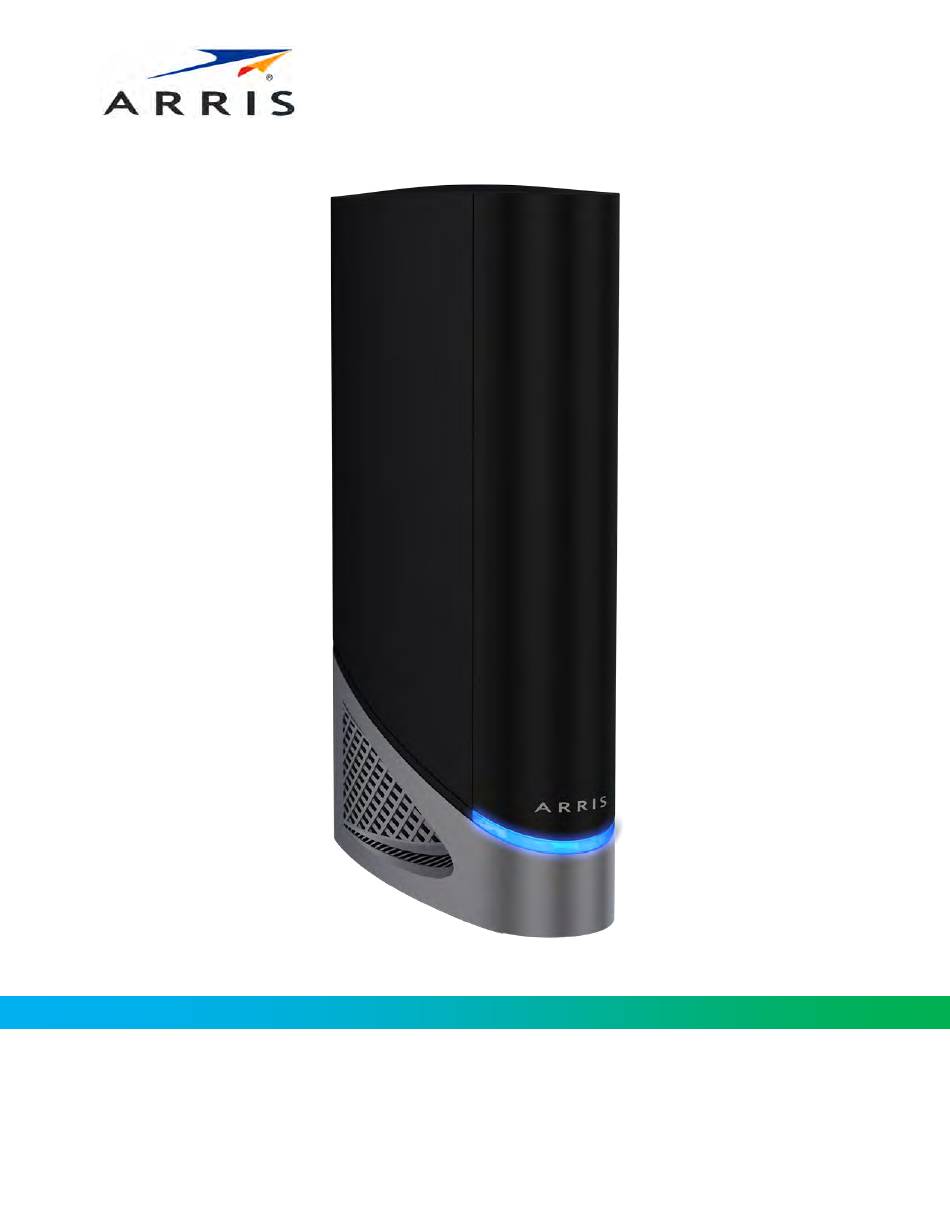

SURFboard
G54 DOCSIS
3.1 Wi-Fi
Cable Modem
User Guide, Revision x.1
P/N 819846-001-00

Advertisement

Table of Contents
loading

Related Manuals for Arris SURFboard G54 DOCSIS 3.1 Wi-Fi

Summary of Contents for Arris SURFboard G54 DOCSIS 3.1 Wi-Fi

  • Page 1 ® ® ® SURFboard G54 DOCSIS 3.1 Wi-Fi Cable Modem User Guide, Revision x.1 P/N 819846-001-00...

  • Page 2: Commscope Legal Statements

    CommScope legal statements © 2023 CommScope, Inc. All rights reserved. CommScope and the CommScope logo are registered trademarks of CommScope and/or its affiliates in the U.S. and other countries. A list of CommScope trademarks is available at https://www.commscope.com/ trademarks. All other product names, trademarks and registered trademarks are property of their respective owners. No part of this content may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from CommScope, Inc.
  • Page 3 Safety and regulatory information Important safety instructions ■ The model number, serial number, and electrical rating are on a label on the base of the device. ■ Do not locate the device near water. ■ Do not locate the device in direct sunlight or near a heat source. ■...
  • Page 4 FCC compliance ARRIS, 3871 Lakefield Dr, Suwanee, GA 30024. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Wireless LAN information Note: This applies to devices that provide Wi-Fi capability. This device is a wireless network product that uses Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency-Division Multiple Access (OFDMA) radio technologies. The device is designed to be interoperable with any other wireless DSSS and OFDMA products that comply with: ■...
  • Page 6 Caring for the environment by recycling When you see this symbol on a product, do not dispose of the product with residential or commercial waste. Please recycle product packaging and this document. Recycling your equipment Some countries or regions have set up systems to collect and recycle electrical and electronic waste items.

  • Page 7: Table Of Contents

    Table of contents CommScope legal statements..................2 Chapter 1: Introduction................9 In your G54 box.......................9 System requirements....................10 Contact information......................10 Front panel and LED behavior..................11 Rear panel and connectors................... 12 Sample G54 Product label.....................13 Chapter 2: Getting started............... 15 Setting up your G54 home Wi-Fi network using your client device......15 Chapter 3: Adding devices to your home Wi-Fi network ......
  • Page 8 Restoring the default configuration settings using your G54 Web Manager....53 Exchanging the routing information................54 Setting up Dynamic DNS client..................55 Managing the UPnP network..................56 Setting up MAC bridging....................57 Changing your login password..................57 Chapter 8: Managing your Wi-Fi cable modem and connected networks.....................

  • Page 9: Chapter 1: Introduction

    In your G54 box Before installing your G54 Wi-Fi cable modem, check that the items listed in the table below are included in your G54 product box. If any items are missing, visit our ARRIS Support website https://arris.com/selfhelp for assistance.

  • Page 10: System Requirements

    ■ Mac ® 10.4 or higher ■ UNIX ® ■ Linux ® Contact information For technical support and additional ARRIS product information, you may visit ARRIS Support website: https://arris.com/selfhelp. SURFboard ® G54 DOCSIS ® 3.1 Wi-Fi ® Cable Modem User Guide DRAFT Revision x.1...

  • Page 11: Front Panel And Led Behavior

    Chapter 1: Introduction Front panel and LED behavior LED behavior LED behavior Description Amber (Solid) Power is initially applied. Amber (OFF) No power. Check the power and cable connections. You may have to restart your G54 using the reset button. For details, see Rebooting your G54 (page 66).

  • Page 12: Rear Panel And Connectors

    Chapter 1: Introduction LED behavior Description Light Blue (Solid) WAN over Ethernet mode, Internet is connected Blue and Green (Alternating colors) Error mode. Check the power and cable connections. You may have to restart your G54 using the reset button. For details, see Rebooting your G54 (page 66).

  • Page 13: Sample G54 Product Label

    Chapter 1: Introduction Port name Description ■ Amber: LED is Blinking - Indicates data traffic is in progress One 10G port for RJ-45 network cable connection: Note: CAT6 Ethernet cable and 10G Ethernet capable device is required to achieve Ethernet connection upto 10 Gbps. ■...
  • Page 14 Chapter 1: Introduction To activate your Internet service, contact your service provider for assistance. When contacting your service provider or ARRIS Technical Support (page 10), you may have to provide the following information listed on the product labels: ■ Model name (G54) ■...

  • Page 15: Chapter 2: Getting Started

    SURFboard Central User Guide for Wi-Fi Cable modems available on the https:// arris.com/selfhelp. ■ Using client device (laptop/desktop): If you are using your client device (laptop/Desktop) with a wired Ethernet connection to set up your home Wi-Fi network then perform the following task.
  • Page 16 Chapter 2: Getting started operator. You can still use your G54 as your Wi-Fi router.This is a useful feature if you choose to change your Internet service to a provider that is not a cable operator. Note: . You can enable or disable this feature which is available for the 10G as WAN over Ethernet.
  • Page 17 Enter The ARRIS website or the URL of your choice must open. If the website fails to open, please contact your service provider for assistance. 8. To ensure you are connected successfully to your G54 Wi-Fi network, you can check for the front panel LED on your G54 lights up in a sequential order.
  • Page 18 Chapter 2: Getting started ■ If you still cannot connect to the Internet, visit the ARRIS Support website at https://arris.com/selfhelp for assistance. SURFboard ® G54 DOCSIS ® 3.1 Wi-Fi ® Cable Modem User Guide DRAFT Revision x.1...

  • Page 19: Chapter 3: Adding Devices To Your Home Wi-Fi Network

    Chapter 3 Adding devices to your home Wi-Fi network Note: You can prefer to modify the default SSID details using the SBC app or from the WEB GUI interface. However, we recommended you way to set up your SSID using the SBC app.

  • Page 20: Quick Connect Using The Windows Task Bar

    Chapter 3: Adding devices to your home Wi-Fi network 4. Click OK. ■ Apple mobile device From the Home screen on your Apple device: 1. Select Settings to open the Wi-Fi screen. 2. Select Wi-Fi to turn it ON. Your device will automatically start searching and then list the available Wi-Fi networks.
  • Page 21 Chapter 3: Adding devices to your home Wi-Fi network 2. Locate and left-click on the G54 Wi-Fi network name or SSID (for example, G54-####) for your G54 from the list of available Wi-Fi networks. The default SSID is located on the bottom of your G54. Note: You must use the default SSID listed on the product label when installing your G54 and setting up your first Wi-Fi network connection.

  • Page 22: Connecting Using The Windows Control Panel

    Chapter 3: Adding devices to your home Wi-Fi network Network connection-create network password window Connecting using the Windows control panel 1. From the Windows taskbar on your computer, click Start button and then click Control Panel. 2. Click Network and Sharing Center to open the Network and Sharing Center window. 3.
  • Page 23 Chapter 3: Adding devices to your home Wi-Fi network 4. Click Manually connect to a wireless network and then click Next. 5. Enter the G54 Wi-Fi network name or SSID (G54-####) in the Network name field. The default SSID is listed on the product label on the bottom of your G54 modem. Note: You have the option to change your Wi-Fi network name or SSID after setting up your Wi-Fi network connection.
  • Page 24 Chapter 3: Adding devices to your home Wi-Fi network Note: WPA2-Personal is the recommended wireless security level for your Wi‑Fi home network. It is the default security level for your G54 and the highest security level available. 7. Select the password encryption type from the Encryption type drop-down list. This is used for securing your Wi-Fi network.

  • Page 25: Chapter 4: Testing Your Wi-Fi Network Connectivity

    3. Open a web browser on your device (computer) and Type a valid URL (such as www.surfboard.com) in the address bar and then press Enter. If the website fails to open, then contact your service provider or visit the ARRIS Support website at https://arris.com/selfhelp.

  • Page 26: Chapter 5: Using The Wi-Fi Cable Modem Web Manager

    Chapter 5 Using the Wi-Fi Cable Modem Web Manager You can view, monitor, and modify the network configuration settings of your G54 using the SBC app and the WEB GUI option. We recommend you to use the SBC app to modify the network settings.
  • Page 27 Chapter 5: Using the Wi-Fi Cable Modem Web Manager 3. Enter your password in the New Password field. Note: The password is case-sensitive and must include each of the following: ■ Minimum of eight characters ■ At least one uppercase alphabetic character: A through Z ■...
  • Page 28 Chapter 5: Using the Wi-Fi Cable Modem Web Manager 7. In the Setting Selection field, click Single SSID or Per Band based on your requirement. 8. You may choose to retain the current default Wi-Fi network name or enter a new name in the Wi-Fi Network Name field.

  • Page 29: Starting Your G54 Web Manager

    Chapter 5: Using the Wi-Fi Cable Modem Web Manager 12.Select Automatic or Manual to set up your time zone. ■ Select Automatic to allow the network to automatically set your time zone. ■ Select Manual to choose your time zone from the Time Zone drop-down list. 13.Click FINISH amd the Web Manager Login screen appears.
  • Page 30 Chapter 5: Using the Wi-Fi Cable Modem Web Manager 1. Open a web browser (such as Internet Explorer, Google Chrome, Firefox, or Safari) on the computer or laptop connected to your G54. 2. Type the default LAN IP address, , in the Address bar and then press Enter 192.168.0.1 to log into your G54 Web Manager Login screen.

  • Page 31: Web Manager Menu Links

    Chapter 5: Using the Wi-Fi Cable Modem Web Manager 7. To disable Wi-Fi network, click Enable under the Bridge Mode field. CAUTION: If you enable Bridge mode then you shall not be able to access the WEB GUI portal. To disable the bridge mode and allowing access to WEB GUI portal, you need to factory reset your G54.
  • Page 32 Chapter 5: Using the Wi-Fi Cable Modem Web Manager The Web Manager menu links Table 4: G54 Web Manager menu links Menu link Function Gateway Displays a summary of your network connections and a list of the connected devices on your home network. Summary Displays the Wi-Fi status for your home network and network-connected devices.
  • Page 33 Chapter 5: Using the Wi-Fi Cable Modem Web Manager Menu link Function Advanced Allows you to set up Port Forwarding, Port Triggering, Remote Management for troubleshooting or maintenance purposes, the DMZ Host, and manage the UPnP network on your home network. Troubleshooting Provides several options to help you resolve certain problems that may occur with your G54.

  • Page 34: Chapter 6: Configuring Your Wi-Fi Network

    Chapter 6 Configuring your Wi-Fi network You have the option to either use the default network settings which are unique to your G54 for security purposes or you can configure different network settings. It also supports a secure method for setting up multiple Wi-Fi networks. Setting up your Wi-Fi network 1.
  • Page 35 Chapter 6: Configuring your Wi-Fi network 4. You can choose to retain the default network name SSID (Service Set Identifier) for your Wi-Fi home network. If you prefer to choose a new network name then in the Network Name (SSID) field, enter a new network name of your choice. Note: The Wi-Fi network name cannot be the same name as any other SSID on your home network.

  • Page 36: Changing The Wi-Fi Radio Configuration Settings

    Chapter 6: Configuring your Wi-Fi network 7. Select the Show Network Password checkbox to view and confirm your network password. 8. If you prefer to display your SSID as an available Wi-Fi network to other users, select the Broadcast Network Name (SSID) Enabled checkbox. 9.
  • Page 37 Chapter 6: Configuring your Wi-Fi network Wi-Fi Network 2.4GHz Radio Connection screen 4. To turn on the 2.4GHz Wi‑Fi frequency range for your Wi-Fi home network, click the 2.4GHz Radio submenu on the left pane and then click the Enable button. 5.

  • Page 38: Changing Mac Filtering Settings

    Chapter 6: Configuring your Wi-Fi network 10.To determine the time period between Dynamic Channel Selection scans, set the DCS scan interval from the DCS Scan Interval drop-down list. 11.Click SAVE SETTINGS. 12.You can change the Wi-Fi connection settings for 5GHz Radio, 5GHz High Radio, and 6GHz Radio as well.

  • Page 39: Setting Up Wps On Your G54 Wi-Fi Network

    Chapter 6: Configuring your Wi-Fi network MAC Filtering settings screen 4. Select the SSID to which you prefer to apply the MAC filtering mode. 5. From the MAC Filtering Mode drop-down list, select one of the following: ■ Allow-All: No Mac filtering rules are applied. All wireless clients can connect to your G54.
  • Page 40 Chapter 6: Configuring your Wi-Fi network 4. Do one of the following: ■ Click the Wi-Fi Protected Setup (WPS) Enable button to turn ON WPS Wi-Fi networking on your home network using the provided AP PIN number. ■ Click the Wi-Fi Protected Setup (WPS) Disable button to turn OFF WPS Wi-Fi networking on your home network.

  • Page 41: Chapter 7: Protecting And Monitoring Your Wi-Fi Network

    Chapter 7 Protecting and monitoring your Wi-Fi network After you have successfully connected your G54 and your Wi-Fi devices, you should configure your G54 to protect your Wi-Fi network from unwanted and unauthorized access by any Wi-Fi devices that are within range of your Wi-Fi network. Although you have configured the network security for your G54, you can use your G54 Web Manager to set the level of security and network access that you want to allow on your Wi-Fi network.
  • Page 42 Chapter 7: Protecting and monitoring your Wi-Fi network ■ High: Safest configuration, maximum security level Firewall IPv4 high security level screen ■ Medium: Safer configuration, medium security level Firewall IPv4 medium security level screen ■ Low: Common security, low security level, higher risk SURFboard ®...

  • Page 43: Ipv6 Security

    Chapter 7: Protecting and monitoring your Wi-Fi network ■ Firewall IPv4 low security level screen IPv6 security Firewall IPv6 available security levels screen Setting up Parental Control You can set up the following parental controls to manage and limit the usage and activity for specific users and client devices on your home network: ■...
  • Page 44 Chapter 7: Protecting and monitoring your Wi-Fi network 3. Click the Managed Sites Enable button to turn ON website and keyword blocking. The Parental Control Managed Sites screen appears. 4. Click +ADD button in the Blocked Sites section. The Add Site to be Blocked screen appears.
  • Page 45 Chapter 7: Protecting and monitoring your Wi-Fi network a. Click +ADD GROUP. The Manually Add GROUP page appears. b. Enter the group name in the Group Name field. c. Enter the number of devices in the Total Device field that you want to group. d.
  • Page 46 Chapter 7: Protecting and monitoring your Wi-Fi network 18.Type the service that you want to block in the User Defined Service field. 19.Select UDP, TCP, or TCP/UDP for the port filter type from the Protocol drop-down list. 20.Enter the range of port numbers for the port filter range in the Start Port and End Port fields.
  • Page 47 Chapter 7: Protecting and monitoring your Wi-Fi network 28.To manually block a device, type the Device name and the MAC address fields. 29.To fully block a device, click Yes, in the Always Block? field. 30.To block a device for specific days and times, click No, in the Always Block? field and then specify the time and days in the Set Block Time and Set Block Days fields.

  • Page 48: Setting Up Port Forwarding

    Note: ARRIS recommends that you manually configure the TCP/IP settings listed below on the client device you are setting up for remote access. Otherwise, remote access to your client device will not be available on the Internet.
  • Page 49 Chapter 7: Protecting and monitoring your Wi-Fi network Add Port Forward screen 5. Select FTP, AIM, HTTP, PPTP, HTTPs, Telnet, SSH, or Other for the Internet data transfer protocol from the Common Service drop-down list. Note: When Other is selected, the Service Name field will display. Enter a name for the service type you will be using.

  • Page 50: Setting Up Port Triggers

    Chapter 7: Protecting and monitoring your Wi-Fi network Setting up Port Triggers You can use Port Triggers to set up your G54 to monitor outgoing traffic on specific ports on your home network. Port Triggering can be useful for some applications such as video conferencing, online chatting, and online gaming that may require specific port numbers with bi-directional traffic to function properly.

  • Page 51: Setting Up The Dmz Host

    Chapter 7: Protecting and monitoring your Wi-Fi network Advanced Add Port Trigger screen 4. Click the +ADD PORT TRIGGER button to open the Add Port Trigger screen. 5. Enter a name or description for the Port Trigger in the Service Name field. 6.

  • Page 52: Setting Up The Alg

    Chapter 7: Protecting and monitoring your Wi-Fi network (e.g., computer or laptop) on the Internet. Consider carefully before configuring a device to be in the DMZ. You can configure one client device on your home network to be the DMZ Host. That client device will operate outside of the G54 firewall and allow remote access from the Internet to your client device, gaming device, or other IP-enabled device.

  • Page 53: Restoring The Default Configuration Settings Using Your G54 Web Manager

    Chapter 7: Protecting and monitoring your Wi-Fi network 1. From the G54 Web Manager screen, click the Advanced menu link. 2. Click ALG to display the ALG screen. 3. Click the required check boxes and then click SAVE SETTINGS. Restoring the default configuration settings using your G54 Web Manager Warning: This action will delete your current G54 configuration settings and allow you to restore the default (original) G54 configuration.

  • Page 54: Exchanging The Routing Information

    Chapter 7: Protecting and monitoring your Wi-Fi network Restore settings screen 3. Click RESTORE Wi-Fi SETTINGS to reset your G54 Wi-Fi settings. Restore settings screen 4. Click OK to restore the Wi-Fi factory defaults. for restarting the Wi-Fi radios message displays. Operation in Progress Exchanging the routing information The RIP protocol is used to exchange the routing information between the gateway and the...

  • Page 55: Setting Up Dynamic Dns Client

    Chapter 7: Protecting and monitoring your Wi-Fi network 3. Click Enable button to set up the routing information. 4. Specify the details for the RIP (Routing Information Protocol) and Routed Subnet Configuration. 5. Click SAVE to save the changes. Setting up Dynamic DNS client You can configure your Gateway's router functionality as a Dynamic DNS client.

  • Page 56: Managing The Upnp Network

    Chapter 7: Protecting and monitoring your Wi-Fi network 3. Click the Enable button to configure your Gateway's router functionality as DNS client. 4. Click +ADD DDNS to configure new DDNS. 5. Click SAVE to save the changes. Note: To disable configuring the DNS client, click the Disable button and then click SAVE.

  • Page 57: Setting Up Mac Bridging

    Chapter 7: Protecting and monitoring your Wi-Fi network 4. Enter the time in the Advertisement Period field to allow your gateway to advertise the UPnP information. 5. Enter the number of steps each UPnP advertisement is allowed to propagate before disappearing in the Time To Live field.
  • Page 58 Chapter 7: Protecting and monitoring your Wi-Fi network For more information, see Starting your G54 Web Manager (page 29). 2. Click the Gateway menu link and then click the User Account submenu option. 3. Click Account Management and the Account Management page appears. 4.

  • Page 59: Chapter 8: Managing Your Wi-Fi Cable Modem And Connected Networks

    The Gateway System Hardware screen appears. Viewing the G54 software version The Gateway Software Version screen displays device software related information for your G54. This information may be helpful if you have to contact ARRIS or Comcast for technical support. ®...

  • Page 60: Viewing The Wireless Information

    Chapter 8: Managing your Wi-Fi cable modem and connected networks To open the Software screen of your G54: 1. From the G54 Web Manager screen, click the Gateway menu link. 2. Click Software from the Gateway submenu links. The Gateway Software screen appears. Viewing the wireless information You can view your G54 wireless components.

  • Page 61: Viewing And Downloading The Device Firmware Details

    The Gateway Hardware screen displays system hardware information for your G54. This information may be helpful if you contact ARRIS, Comcast, or Cox for technical assistance. To open the G54 Hardware information screen: 1. From the G54 Web Manager screen, click the Gateway menu link.

  • Page 62: Managing The Front Panel Led Behavior

    Chapter 8: Managing your Wi-Fi cable modem and connected networks 3. Under Download backup tab, click Generate archive to download a set of current configuration files. 4. Under Restore backup tab, click Upload archive to restore the configuration files. You can upload the previously generated backup archive configuration files. Managing the front panel LED behavior You can manage the front panel LED behavior of your G54.

  • Page 63: Managing Time Servers

    Chapter 8: Managing your Wi-Fi cable modem and connected networks ■ Off Except Alerts ■ Off Always 4. Click SAVE LIGHTING MODE to save your changes. Managing time servers You can use this feature to provision accurate time on your G54. The time is retrieved from the servers listed in the order.

  • Page 64: Setting Up An Ethernet Port Connection For Your Data Input

    Chapter 8: Managing your Wi-Fi cable modem and connected networks To enable this feature: 1. From the G54 Web Manager screen, click Advanced from the Gateway submenu links and then click Services. The Amazon Services screen appears. 2. Under the Amazon Wi-Fi tab, click the Enable button allowing you to setup/install the device easily using the AFFS technique offered by Amazon.
  • Page 65 Chapter 8: Managing your Wi-Fi cable modem and connected networks 3. Click EDIT on the WAN screen. 4. Click Interface CHANGE to select either DOCSIS (for a regular cable connection) or Ethernet (for an input signal from a different modem device) with an Ethernet connection from the modem device to your G54 10G port.

  • Page 66: Rebooting Your G54

    Chapter 8: Managing your Wi-Fi cable modem and connected networks Rebooting your G54 Choose one of the following options to reboot (or restart) your G54: ■ Using the Reboot/restore option available on your G54 Web Manager screen: Rebooting your G54 using the Web Manager (page 66) ■...

  • Page 67: Restoring The Default Configuration Settings Using Your G54 Web Manager

    Chapter 8: Managing your Wi-Fi cable modem and connected networks 1. Insert the end of a paper clip (or other small object with a narrow tip) into the indented Reset button opening on the rear panel of your G54. 2. Press and hold the small object in place for three to four seconds. Warning: Do not press the Reset button for more than five seconds.
  • Page 68 Chapter 8: Managing your Wi-Fi cable modem and connected networks Restore settings screen 4. Click OK to restore the Wi-Fi factory defaults. for restarting the Wi-Fi radios message displays. Operation in Progress SURFboard ® G54 DOCSIS ® 3.1 Wi-Fi ® Cable Modem User Guide DRAFT Revision x.1...

  • Page 69: Chapter 9: Troubleshooting Tips

    G54 and computer. If you have cable television service, check your television to ensure your cable service is operating properly. If none of the above solutions resolves the problem, visit the ARRIS Support website at https://arris.com/selfhelp for assistance. Cannot Access the...
  • Page 70 ARRIS’ warranties apply only to a Product that is manufactured by ARRIS and identified by ARRIS owned trademark, trade name or product identification logos affixed to the Product. ARRIS does not warrant to you, the end user, or to anyone else that the Software will perform error free or without bugs.
  • Page 71 While every reasonable effort has been made to insure that you will receive a Product that you can use and enjoy, ARRIS does not warrant that the functions of the Product will meet your requirements or that the operation of the Product will be uninterrupted or error- free.
