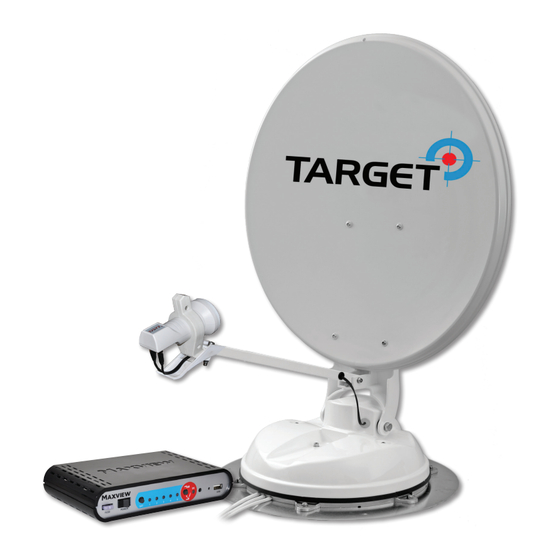

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Maxview declines all responsibility in the event of incident or accident if they are due to a non observation of the installation instructions or the way the product is used.
B. Control Box The Control Box requires wired connections for power, antenna control and satellite signal. It can be mounted discretely in a cupboard and can be fixed vertically and horizontally. Page 4 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates...
> There is an electrical supply of 12V dc permanent and ignition > There is adequate ventilation > The Control Box is not encased with metal > Material construction and thickness is suitable for fixings Page 6 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates...
• Take care when working at heights. Always follow ladder manufacturer’s safety advice • Use creeper boards where necessary to ensure roof construction can support your weight • Power tools should be used in accordance with manufacturer’s instructions Page 7 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates...
Positive ignition key on (Fridge) Earth return for contact 6 Black Caution: All electrical work should be carried out by a competent person. If in doubt seek advice from a qualified electrician. Page 8 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates...
(front of vehicle) Note: To prevent trip hazards it is recommended that cables are concealed in PVCu conduit (not supplied) where access is required to the roof of the vehicle. Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 9...
Position the Control Box in one of the 4 ways shown left. Make sure that the front is easily accessible. Fitting the Control Box Brackets: The brackets snap fit to the Control Box casing Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 10 ...
Position the vehicle so that there is an unobstructed view of the southern sky. Connect a TV and Satellite Receiver and follow instructions on page 12 to search for a satellite. Caution: Before driving vehicle on a highway ensure adhesive has cured. Check all fasteners are secure. Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 11...
*If required. Press SAT to scroll through satellite selection. Eg. New selected SAT LED will flash green. Flashes green Search Flashes green 3. Search SEARCH - Press and release to begin. Both the OK LED and LED selected will flash during search. Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 13...
The Ignition Mode will still activate even with the Control Box power switch in the off position. When power is restored to the system the antenna will automatically lower into the park position. Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 14...
Software update: To keep your Target up to date with the latest satellites Maxview has incorporated a USB port on the front of the Control Box. The Target has the ability to update its satellite data and its operational software from a simple USB flash memory stick.
After 5 seconds the dish will then move to park position Flashes green Solid red No SAT found - system parked. Once parked the Search LED stays solid RED and SAT LED searched continues to flash green Page 16 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates...
Page 17
If rotation motor stops the above LED sequence will occur, please contact Customer Services. Solid orange Flashes red F. Elevation Error. If elevation motor stops the above LED sequence will occur, please contact Customer Services. Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates Page 17...
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. Page 18 Visit: www.maxview.co.uk - Search ‘Target’ for potential software updates ...
A guarantee authorisation must be obtained from Maxview prior to work commencing. c) Maxview is responsible for the cost of a replacement part if the original part is determined to be defective under the terms of the guarantee.
Specifications: Operating: Average search time 30-60 seconds typical Future proof with free software updates via a USB stick - see page 15 Low stream line profile, only 17cm in park position 5 Pre-programmed including: Astra 1 19.2°, Astra 2 28.2°, Astra 3 23.5°, Hotbird 13° & Thor 0.8° Power: Powering: 12V operation...
