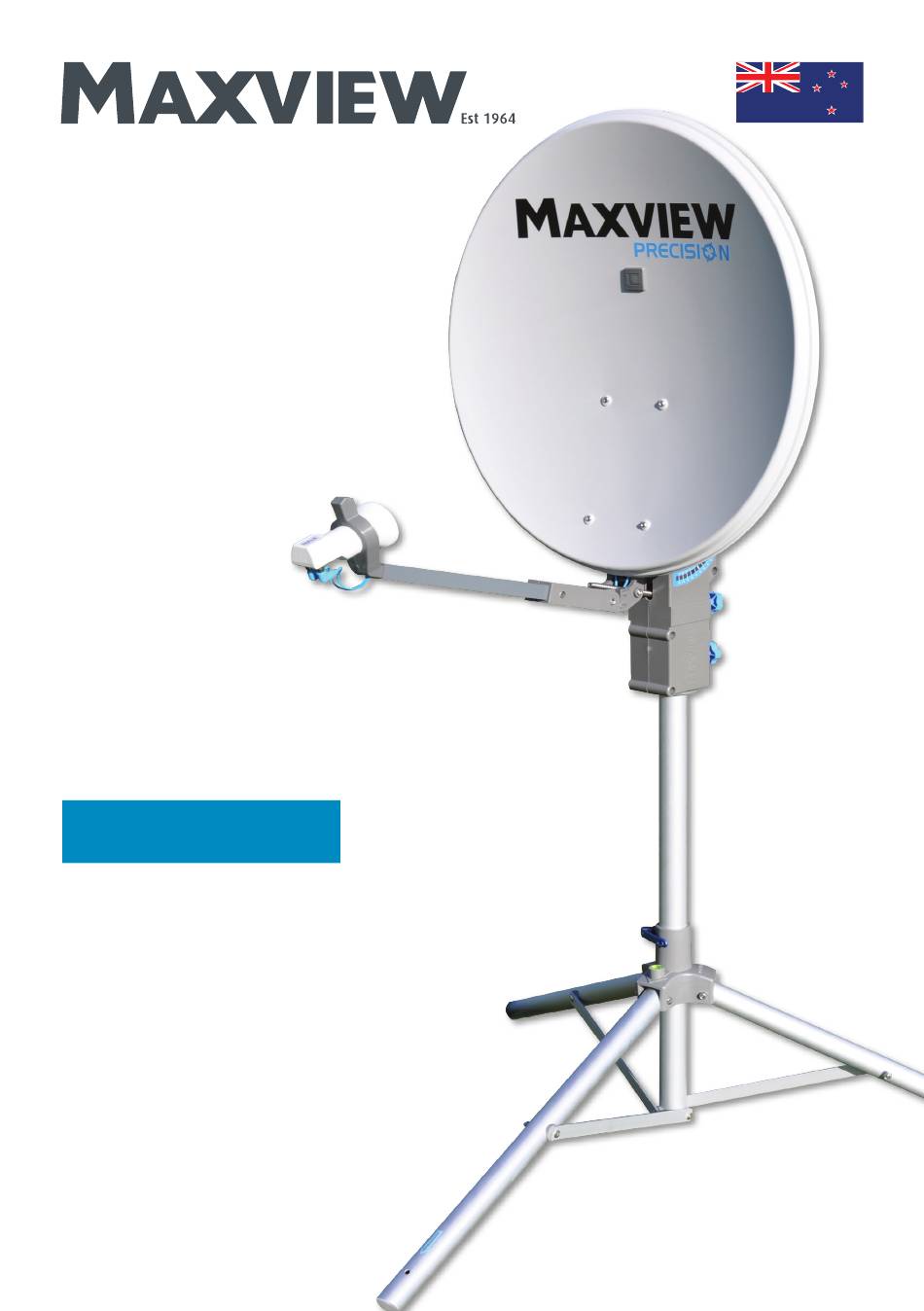

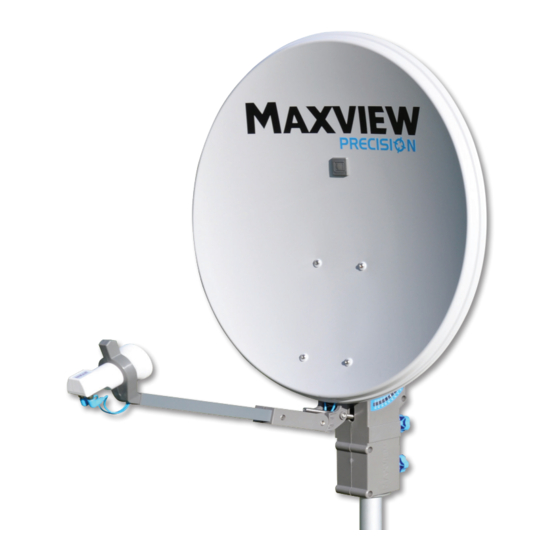

- Page 1 MXL012/55NZ Precision Set Up & User Manual NZ contact: Tel: +64 (07) 846 7771 Email: sales@rvsupplies.co.nz Web: www.rvsupplies.co.nz Maxview reserve the right to change specifications without prior notice MXL012INSNZ Iss 4...
-
Page 2: Table Of Contents
Thank You! For purchasing this product, we trust that you will get many years of enjoyment with this product. Should you have any difficulty using your Precision Portable Satellite System please contact +64 (07) 846 7771. Please retain these instructions for future reference. Contents Get To Know Your Precision Kit Care &... -
Page 3: Get To Know Your Precision Kit
Get To Know Your Precision Kit A. Elevation Map Helps you set the correct elevation angle to your current location. B. Magnetic Arm Lock To secure the LNB arm in a closed posi- tion. C. Integrated Sat Finder To help you align your satellite dish to the satellite. - Page 4 Dish Assembly Before you use your Precision you will need to attach the dish to the bracket. You will find the screws/ washers required for fitting the dish already inserted in the bracket. Remove these with a screwdriver taking note of the hole position you removed these from.
- Page 5 North Level the tripod (use the level indicator as an Mount dish unit onto tripod with the LNB arm approximate guide only - not critical). Use the pegs facing towards the North leg. (Reference Image 2). provided to secure tripod to the ground. North Note All TV satellites used in New Zealand aew...
- Page 6 Single Twin Pull down LNB arm from magnetic lock. Connect the 10m Flexible Cable to the cable connection port. See page 9 for receiver end connections. The sat finder is wired to the single port. ° ° Use the elevation map on page 10 to determine the required angle for your location. Set the dish to this angle using the elevation knob and indicator.
-
Page 7: Line Of Sight
Optus D1 Slowly rotate your dish from left to right Once satellite is located, lock off the rotation by through the zone until the correct satellite turning Azimuth lock knob. If you are experiencing is located and a picture appears on your TV. signal drop out, fine tune your signal by slightly adjusting the elevation to improve TV picture To aid the satellite location process you can... -
Page 8: Using Your Integrated Sat Finder
Using Your Integrated Sat Finder Your Sat Finder is used to help you locate and find the best signal quality received from satellites. Using the integrated sat finder. Tune the sat finder by turning the knob fully anti-clockwise and then slowly clockwise until a deep tone is heard and until 2-3 red LEDs are lit. -
Page 9: Skew Adjustment
Skew Adjustment The LNB Skew has been set at a factory default position Default LNB position. 12 o’clock as per image below. This is optimised for the Optus D1 satellite and will allow good signal strength all over New Zealand. Skew adjustment is only re- quired when signal strength is weak at the limit of given... -
Page 10: Elevation Zone Map
Elevation Zone Map - Optus D1 Satellite... -
Page 11: Quick Set Up Guide
Quick Set Up Guide... -
Page 12: Fault Finding
> Always switch power off at the mains before starting any electrical work. 2 Year Guarantee The Maxview Precision is guaranteed against defective parts or workmanship for 2 years from the time of purchase. This excludes any malfunction caused by improper use, accidental or malicious damage.
