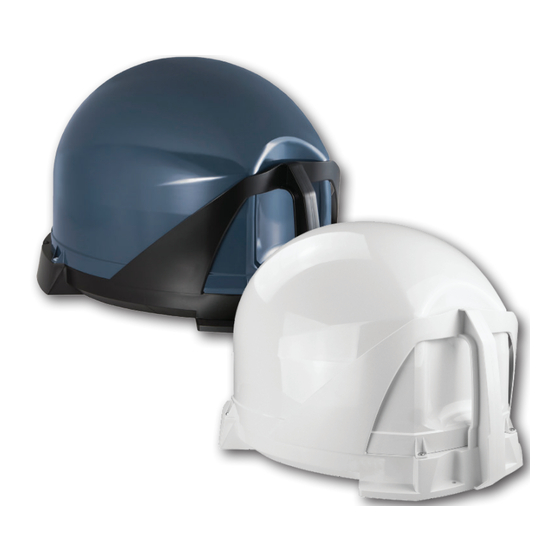

- Page 1 VuQube II Q MXL023/WQ & MXLO23/GQ Owners Manual UK contact: Helpline: +44 (0)1553 811000 Email: support@maxview.co.uk Web: www.maxview.co.uk Maxview reserve the right to change specifications without prior notice 9111450 Iss 1...
- Page 2 Roof Mount Pack ✴ . Order MXL023/FKIT ✴ PLEASE NOTE: If you mount your Vuqube II without using the Maxview Roof Mount Pack your warranty will be void. Safety precautions To avoid tripping over and injury always route cable carefully.
- Page 3 It is the responsibility of the end user to understand the contractual agreement between themselves and Sky™ & any limitations of equipment this may have. In no event shall Maxview be liable for any indirect, incidental, or consequential damages pertaining to this article.
- Page 4 Set up diagram 12/24V 230V* 12V (UK & EU) MAIN ATTENTION! VuQube II System Outside vehicle Avoid sharp bends 5m ‘F’ to ‘F’ Cable x 2 when routing cable Power Inserter 0.5m ‘F’ to ‘F’ Cable SKY™ Q Box HDMI Cable Cigarette Adapter 12V Power Supply *230V Power Supply Unit required.
- Page 5 Powering and operation The VuQube II is preset to Astra 2, this means your system is ready to search for your favourite UK channels. In most cases your pre-set satellite will be the one you wish to search for, in this case, please skip to the Satellite Search Section now.
- Page 6 Satellite Search Make sure all connections are made as shown on page 4. Turn on the TV and satellite receiver if not integrated. Press POWER on the VuQube II Power Inserter. The Power Inserter LED will pulsate orange while powering up (this will take about 10 seconds). Pulsing orange When ready to scan the LED will flash green.
- Page 7 Alarm Feature This unit has a built in alarm feature if the coaxial cable is disconnected from the unit. This unit is shipped from the factory with the alarm feature off Turning the alarm feature on or off A. To change settings, press and hold the power inserter button for 6 seconds (6 flashes of the LED light).
- Page 8 Optional weatherproof socket - Recommended padlock and cable. (not included) for a neat watertight connection externally to and from your Vuqube II. To secure object Code B2007 (Twin socket) Available from most Maxview Dealerships or order online at www.maxview.co.uk Specifications Weight: 3.5kg LNB Type: Wideband 10.7 - 12.75Ghz...
-
Page 9: Troubleshooting
Troubleshooting CAUSE OF ACTION SYMPTOM POSSIBLE CAUSE The power inserter light No power to the Power Inserter. Verify power supply is properly does not come on. connected to VuQube II Power Inserter. Solid dim red light The satellite could not be located, Move unit to have a better view of on power inserter. -
Page 10: Terms And Conditions
Only Maxview will perform guarantee evaluations and repairs. If it is determined that the unit needs to be returned to Maxview, the customer must return COMPLETE product, to: Customer Services, Maxview Ltd, Garage Lane, Setchey, King’s Lynn, Norfolk, PE33 0AT When returning product, Maxview will supply a Product Return Number (PRN). - Page 11 For notes...
