igloohome Key Fob (IEF1) - Smart Lock Manual

What's Included

Specifications

*NOTE: Battery reading at sub-zero temperatures might be inaccurate.
For best performance, please use product above 0 degrees Celsius.

NOTE: This product functions best with Panasonic CR2 Lithium batteries.
Do not use rechargeable, heavy-duty or other battery types.
For damage resulting from incorrect use of fob, use of fob in potentially explosive environments, or use of fob outside of stipulated specifications, the customer bears sole responsibility. igloohome accepts no liability whatsoever.

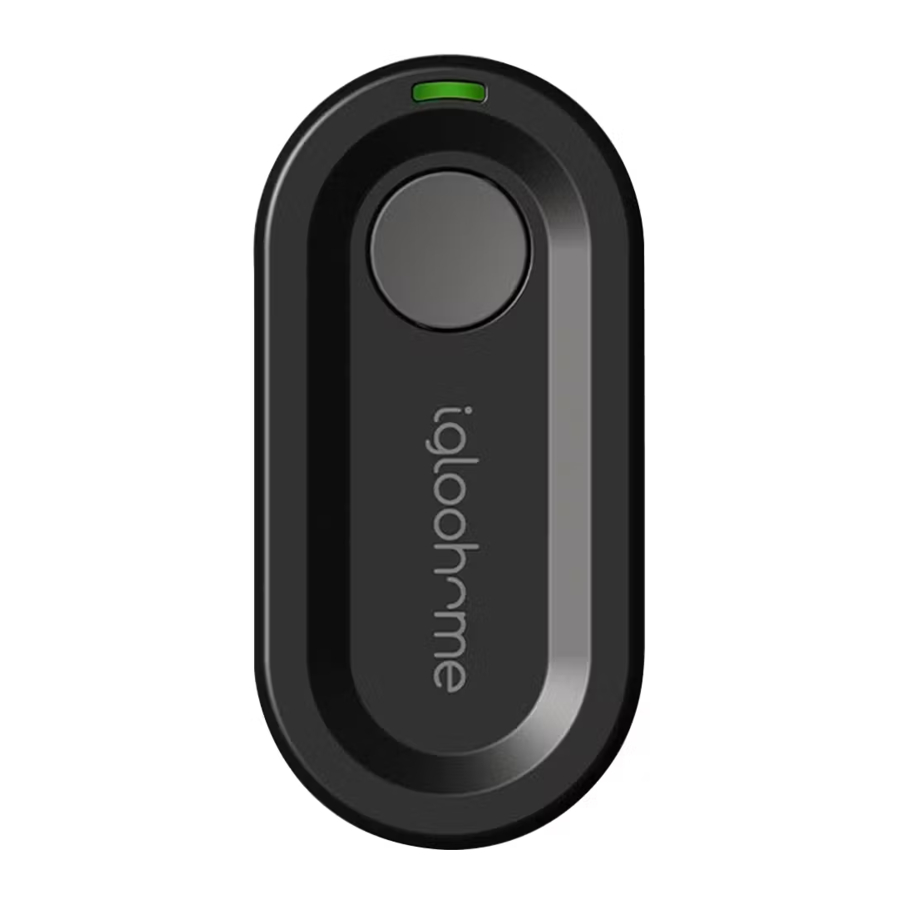

Fob Anatomy

Features

Lock/Unlock

Unlock Function

Click the button to unlock.

Lock Function

Hold the button down for two seconds to lock.

Battery

Battery Life

The Fob can last up to 2 years with CR2 lithium battery.
*Battery life estimation is based on average key fob usage of 10 presses per day at room temperature of 20 degrees Celcius. Lower temperature conditions will impact battery life.

Low Battery Indicator

An intuitive LED visual alert will prompt you to change the batteries when it runs low.
*The low battery indicator performs best above sub-zero temperatures

Others

Compatible across multiple locks

The Key Fob is compatible with selected igloohome locks.
*Selected lock models are listed in specifications.

Access on your terms

Pair multiple Key Fobs to your lock. Each Key Fob can be paired with up to 199 locks and unlocks a maximum of 5 paired locks within range simultaneously.

Replacing Batteries

1. Remove the battery cover from the fob by sliding it upwards.

2. Push the CR2032 Coin Battery upwards to remove it from the battery slot.

3. Replace the CR2032 Coin Battery.

   Close the battery cover by sliding it downwards.

   Please ensure that the battery cover is closed tightly.

App Onboarding

1. Register as a Lock User
   1. Download igloohome from the App Store / Play Store
   2. Create an account and login
2. Pairing
   1. Select [Add new igloohome lock]
      Note: For existing users with other paired locks, go to [Configuration], select [Add Locks] and follow the instructions.

3. Adding the Key Fob
   Go to [Configuration], select [Manage fobs], and click on the [+] sign at the top right corner and follow the instructions.


Installation Instructions

Using Adhesive

1. Peel off the protective layers on both sides of the provided adhesive.
2. Stick one side onto the back of the mounting bracket, and the other side onto the wall near your igloohome locks*

Using Screw

1. With the provided screw and screw anchor, drill the mounting bracket into the wall near your igloohome locks*


* NOTE: Please ensure that the key fob can unlock your igloohome locks at the position where you are placing the mounting bracket on.

Unlocking

Unlock

1. Press the button on the key fob. LED indicator on the key fob will start flashing blue

2. Paired locks within range (up to 5) will unlock, and the LED indicator will turn green


Locking

Lock

1. Press and hold the button on the key fob for more than 2 seconds. LED indicator on the key fob will start flashing blue

2. Paired locks within range (up to 5) will lock, and the LED indicator will turn green


Compatible igloohome Locks

*NOTE: The distances provided are for reference only and will vary based on actual operating conditions such as physical obstacles and interference from other electronic devices.

LED indications

Troubleshoot

I lost my Key Fob

• In the igloohome app, Go to "Manage fobs" > Choose your fob > Choose "Delete Fob" > "I lost my fob"
• Follow on-screen instructions to revoke access* to the locks linked to the Fob and delete the Fob from your account
• The fob is now disabled and will not unlock your igloohome locks
• Should you find your fob after these steps are done, please contact the support team in resetting your fob

Unlock is not working

• Check that the locks you are unlocking are already linked to your fob in the app
• Check that the settings LED (under the battery cover) is not flashing blue
• Ensure that the fob is within Bluetooth range of the locks (for optimal performance, please ensure you are within 5m of the locks and there are no obstructions between the fob and the locks)
• Check that the locks you are unlocking are not low in battery
