73 ¾"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you
have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection

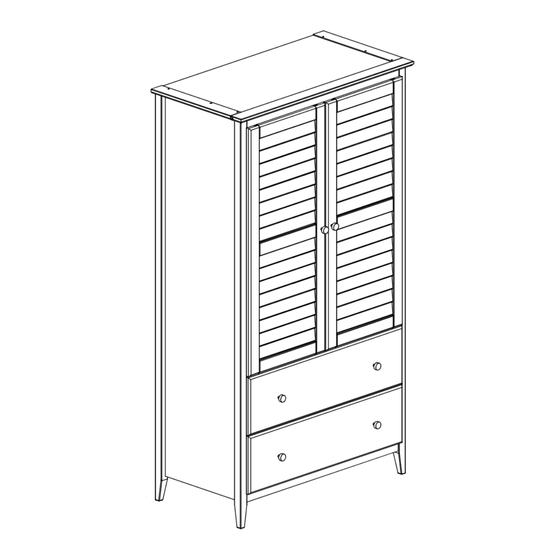

2-Door Wardrobe
REV - 11/2023
Assembly Instructions
41 ¼"
support@grainwoodfurniture.com
21 ½"
Made in Brazil
2-person assembly
Model #
Finish
GPS0803
Brushed White
GPS0805
Brushed Walnut
GPS0816 Brushed Driftwood
Brushed Grey
GPS0840
PH #2
page 1/24
Advertisement
Related Manuals for GrainWood Greenport GPS0803
Summary of Contents for GrainWood Greenport GPS0803
- Page 1 Assembly Instructions 21 ½” 41 ¼” 2-person assembly 73 ¾” PH #2 Model # Finish GPS0803 Brushed White GPS0805 Brushed Walnut GPS0816 Brushed Driftwood Brushed Grey GPS0840 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 46 + 3 ANTI-TIPPING RESTRAINT KIT 4,0x30 8 + 1 2 + 1 3,5x14 3,0x20 3,0x20 29 + 2 3,5x16 6 + 1 250 - 9 ³⁄ " 4,0x40 6 + 1 M4x25 20 + 1 6,0x10 50 + 3 8,0x25 4 + 1 metal... - Page 4 Box A - 1 of 2 Box B - 2 of 2 Qty. Qty. Description Description Part # Part # Upper crosspiece Right side Lower crosspiece Left side Rear panel Back panel Drawer front Drawer right side Drawer bottom Drawer left side Fixed shelf Drawer back Wide shelf (adjustable)
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. 50 D21 8,0x25 page 5/24...
- Page 6 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 RIGHT Side page 6/24...
- Page 7 Attach hinge ( F10 ) to hinge plate if it comes separated. Push hinge against plate until it clicks. click! A9 A9 A9 A9 A9 A9 3,5x16 page 7/24...
- Page 8 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 LEFT Side page 8/24...
- Page 9 Attach hinge ( F10 ) to hinge plate if it comes separated. Push hinge against plate until it clicks. click! A9 A9 A9 A9 A9 A9 3,5x16 page 9/24...
- Page 10 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. 3,5x14 page 10/24...
- Page 11 Attention: There are no predrilled holes for the A1 screws on part 02. ü A1 A1 A1 A1 A1 A1 ü 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 02. 4,0x30 page 11/24...
- Page 12 Attention: There are no predrilled holes for the A1 screws on part 03. A1 A1 4,0x30 page 12/24...
- Page 13 Make sure the finished surface is facing the inside of the wardrobe 4,0x40 Make sure back panels are perfectly aligned with side panels and top and there are no gaps. Gap present û No gap ü ü 10x10 page 13/24...
- Page 14 Gap present û No gap ü 10x10 page 14/24...
- Page 15 10x10 10x10 page 15/24...
- Page 16 3,5x14 Choose the desired shelf height and insert metal supports. metal page 16/24...
- Page 17 Attention: There are no predrilled holes for the A9 screws on part 19. 3,5x16 3,5x16 page 17/24...
- Page 18 Attention: There are no predrilled holes for the A9 screws on part 18. If the doors are not properly aligned, we will adjust them after the product is fully assembled and placed in its final location, (pages 23 and 24). 3,5x16 page 18/24...
- Page 19 Attention: There are no predrilled holes for the A1 screws on part 08. 4,0x30 page 19/24...
- Page 20 Flip the assembled drawer upside down to install glides. Drawer RIGHT Drawer LEFT 8 E21 6,0x10 page 20/24...
- Page 21 M4x25 Place the labeled drawer in the top position page 21/24...
- Page 22 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 22/24...
- Page 23 Removing the Gap Between the Door and the Frame Loosen rear screw. û Adjust door forwards or backwards. ü Re-tighten the rear screw. Adjusting the Space Betweeen the Door and the Top Drawer Right Left Loosen top and bottom Door Door screw on all hinges.
- Page 24 Aligning Crooked Doors Pivot outwards. Tighten rear screw if needed. Pivot inwards. Aligning Crooked Doors Pivot inwards. Pivot outwards. Tighten rear screw if needed. page 24/24...
