73 ¾"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or

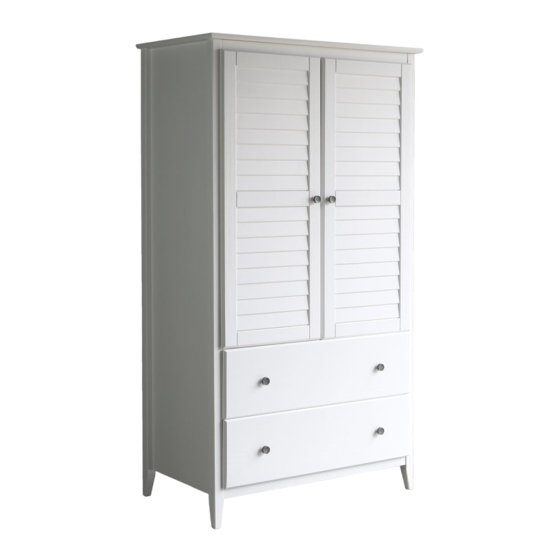

Greenport Collection
2-Door Wardrobe
REV - 07/2021
Assembly Instructions
41 ¼"
support@grainwoodfurniture.com
21 ½"
Made in Brazil
2-person assembly
Model #
Finish
GP0803
Brushed White
Brushed Driftwood
GP0816
Brushed Grey
GP0840
PH #2
page 1/16
Advertisement
Related Manuals for GrainWood Greenport Series
Summary of Contents for GrainWood Greenport Series

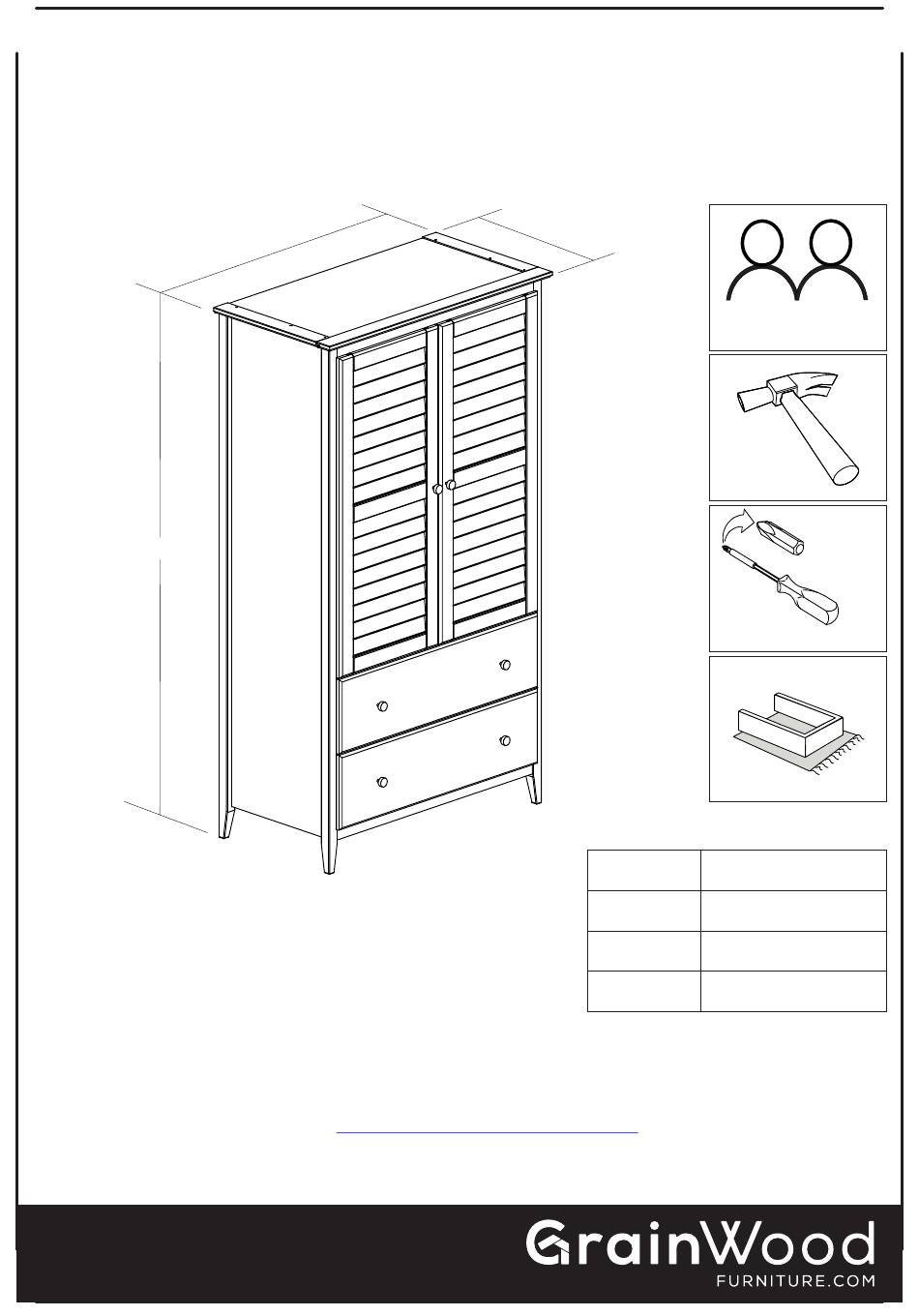

- Page 1 Assembly Instructions 21 ½” 41 ¼” 2-person assembly 73 ¾” PH #2 Model # Finish GP0803 Brushed White Brushed Driftwood GP0816 Brushed Grey GP0840 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 34 + 2 4,0x30 8 + 1 30 + 2 3,5x14 10x10 41 + 2 3,5x16 6 + 1 4,0x40 2 + 1 4,0x25 6 + 1 ANTI-TIPPING RESTRAINT KIT M4x25 20 + 1 2 + 1 6,0x10 3,0x20 44 + 2 8,0x25... - Page 4 Box A - 1 of 2 Box B - 2 of 2 Qty. Qty. Description Description Part # Part # Upper crosspiece Right side Lower crosspiece Left side Rear crosspiece Back panel Drawer front Profile “H” Drawer right side Door stop Drawer left side Drawer bottom Drawer back...
- Page 5 Tip : 8,0x25 Use a hammer in case dowels are hard to install by hand. click! Attach hinge ( F10 ) to hinge plate if it comes separated. Push hinge against plate until it clicks. page 5/16...
- Page 6 RIGHT Side 450mm - 17 3/4" LEFT 3,5x16 Side 6,0x10 450mm - 17 3/4" 3,5x14 Attention: There are no predrilled holes for the A1 screws on part 02. 4,0x30 page 6/16...
- Page 7 Attention: There are no predrilled holes for the A18 screws on parts 02 and 03. Attention: There are no 4,0x30 predrilled holes for the A1 screws on parts 02 and 03. 4,0x25 Attention: There are no predrilled holes for the A16 screws on parts 02 and 03.
- Page 8 Make sure back panels are perfectly aligned with side panels and top and there are NO gaps. û ü ü 10x10 û ü 10x10 page 8/16...
- Page 9 10x10 page 9/16...
- Page 10 Attention: There are no predrilled holes for the A9 screws on parts 06 and 07. 3,5x16 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. Chose the desired shelf height and insert metal supports 3,5x14 metal page 10/16...
- Page 11 3,5x16 Attention: There are no predrilled holes for the M4x25 A9 screws on part 19. page 11/16...
- Page 12 Attention: There are no predrilled holes for the A9 screws on part 18. 3,5x16 M4x25 page 12/16...
- Page 13 page 13/16...
- Page 14 Attention: There are no predrilled holes for the A1 screws on part 08. 1" 4,0x30 page 14/16...
- Page 15 Flip the assembled drawer upside down to install glides. 6,0x10 Drawer Drawer LEFT RIGHT 450mm - 17 3/4" 450mm - 17 3/4" M4x25 Place the labeled drawer on the top position. page 15/16...
- Page 16 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 16/16...
