33 ½"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you
have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection

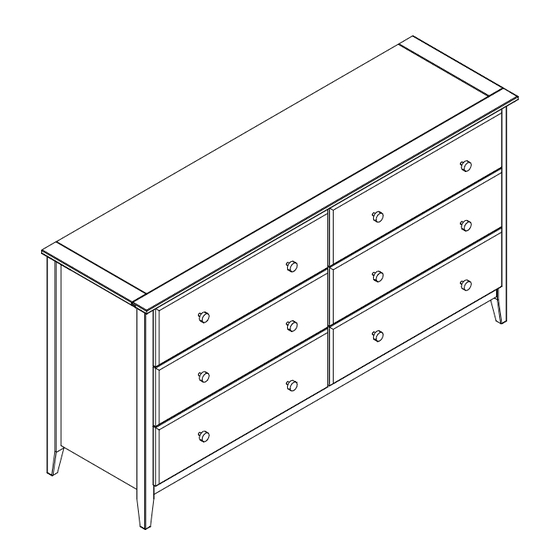

6-Drawer Dresser
REV - 11/2023
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
Model #
Finish
GPS0503
Brushed White
Brushed Walnut
GPS0505
Brushed Driftwood
GPS0516
Brushed Grey
GPS0540
PH #2
page 1/22
Advertisement
Related Manuals for GrainWood Greenport GPS0503
Summary of Contents for GrainWood Greenport GPS0503
- Page 1 Assembly Instructions 2-person assembly PH #2 33 ½" Model # Finish GPS0503 Brushed White Brushed Walnut GPS0505 Brushed Driftwood GPS0516 Brushed Grey GPS0540 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 80 + 4 ANTI-TIPPING RESTRAINT KIT 4,0x30 2 + 1 27 + 2 3,0x20 3,0x20 3,5x14 18 + 1 3,5x16 12 + 1 250mm - 9 ³⁄ " M4x25 48 + 3 6,0x10 80 + 4 8,0x25 ATTENTION 330mm - 13"... - Page 4 Box A - 1 of 2 Box B - 2 of 2 Description Qty. Qty. Part # Part # Right side Lower crosspiece Left side Back panel Upper crosspiece Drawer front Rear panel Drawer right side Drawer bottom Drawer left side Drawer back Drawer bottom support Division...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. 80 D21 8,0x25 page 5/22...
- Page 6 3,5x14 page 6/22...
- Page 7 Glide wheels should be positioned towards the front and bottom of the side panel. Need help? Scan the QR code. 6,0x10 RIGHT Side page 7/22...
- Page 8 Glide wheels should be positioned towards the front and bottom of the side panel. Need help? Scan the QR code. 6,0x10 LEFT Side page 8/22...
- Page 9 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. 3,5x14 page 9/22...
- Page 10 3,5x14 page 10/22...
- Page 11 Glide wheels should be positioned towards the front and bottom of the side panel. Need help? Scan the QR code. 6,0x10 RIGHT Side page 11/22...
- Page 12 180º Glide wheels should be positioned towards the front and bottom of the side panel. Need help? Scan the QR code. 6,0x10 LEFT Side page 12/22...
- Page 13 180º Attention: There are no predrilled holes for the A4 screws on part 14. 3,5x14 ü ü Attention: There are no predrilled holes for the A1 screws on part 02. 4,0x30 page 13/22...
- Page 14 Attention: There are no predrilled holes for the A1 screws on part 02. 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 14. 4,0x30 page 14/22...
- Page 15 Attention: There are no predrilled holes for the A1 screws on parts 05 and 14. A1 A1 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 03. A1 A1 4,0x30 page 15/22...
- Page 16 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 page 16/22...
- Page 17 10x10 1" Attention: There are no predrilled holes for the A4 screws on parts 07 and 06. 3,5x14 page 17/22...
- Page 18 Attention: There are no predrilled holes for the A1 screws on part 08. 4,0x30 page 18/22...
- Page 19 Flip the assembled drawer upside down to install glides. Need help? Scan the QR code. Drawer RIGHT Drawer LEFT 6,0x10 page 19/22...
- Page 20 Observe the correct orientation as shown below. ü û 3,5x16 3,5x16 M4 x 25 page 20/22...
- Page 21 23) Place the labeled drawer in the top position page 21/22...
- Page 22 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 22/22...
