49 ¾"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection
Queen Bed
REV - 07/2021
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
Model #
Finish
GP0303
Brushed White
Brushed Driftwood
GP0316
Brushed Grey
GP0340
PH #2
page 1/10
Advertisement
Related Manuals for GrainWood GP0303
Summary of Contents for GrainWood GP0303

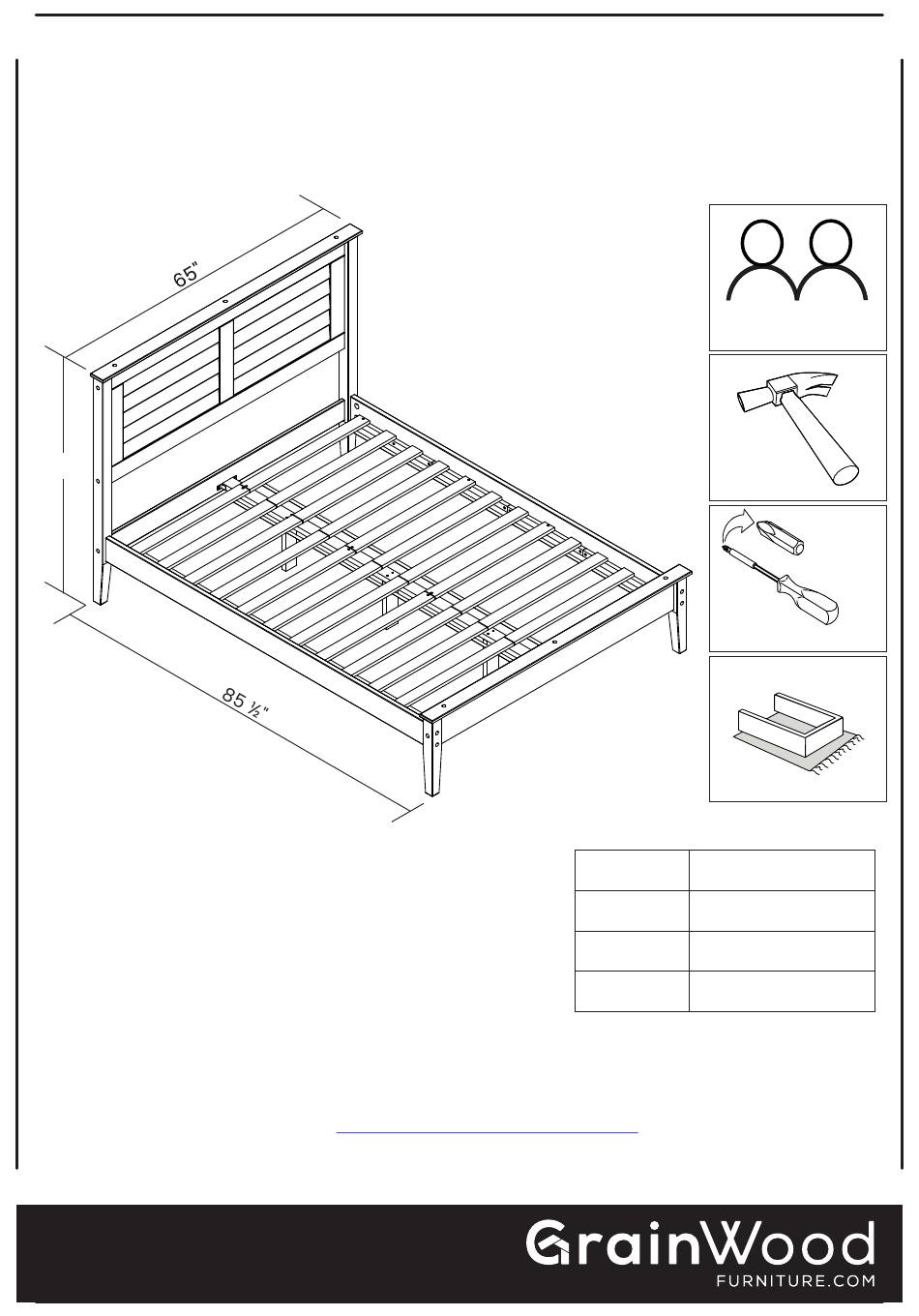

- Page 1 Assembly Instructions 2-person assembly 49 ¾" PH #2 Model # Finish GP0303 Brushed White Brushed Driftwood GP0316 Brushed Grey GP0340 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 16 + 1 3,5x16 16 + 1 3,5x35 16 + 1 1/4" 7,0x50 1/4"x100 7,0x70 16 + 1 10x50 30x30 18 + 6 ATTENTION Before starting assembly please verify the hardware set is complete. For missing hardware please contact us at grainwoodfurniture.com/help WARNING:... - Page 4 Box A - 1 of 2 Box B - 1 of 2 Description Qty. Description Qty. Part # Part # Right headboard post Footboard cross piece Left headboard post Headboard Right footboard post Headboard cross piece Left footboard post Slat roll Side rail Center rail Center support...
- Page 5 C6 C6 Tip : Use a hammer in case dowels are hard to install by hand. 10x50 B12+G8 B12+G8 B12+G8 G8+B12 G8+B12 G8+B12 1/4" 1/4"x100 30x30 page 5/10...
- Page 6 upper side 3,5x16 B12+G8 3,5x16 1/4" 1/4"x100 G8+B12 30x30 page 6/10...
- Page 7 G8+B12 G8+B12 G8+B12 G8+B12 B12+G8 B12+G8 1/4" 1/4"x100 B12+G8 B12+G8 G8+B8 G8+B8 G8+B8 G8+B8 G8+B8 G8+B8 7,0x50 page 7/10...
- Page 8 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 7,0x70 30x30 Attention: There are no predrilled holes for the A9 screws on part 09. 3,5x16 page 8/10...
- Page 9 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 page 9/10...
- Page 10 Tip - Do not install wood caps in the back of the headboard posts. Instead save these 4 caps for eventual future use. The wood caps should be flush with the post surface Tip - Use a rubber mallet or a piece of wood to protect the finish when hammering the wood cap page 10/10...
